282808-5

Heilind Number:	AMP282808-5
Manufacturer:	TE Connectivity
Manufacturer Number:	282808-5
Datasheet:	3D Drawing
ECAD Model:

Description:

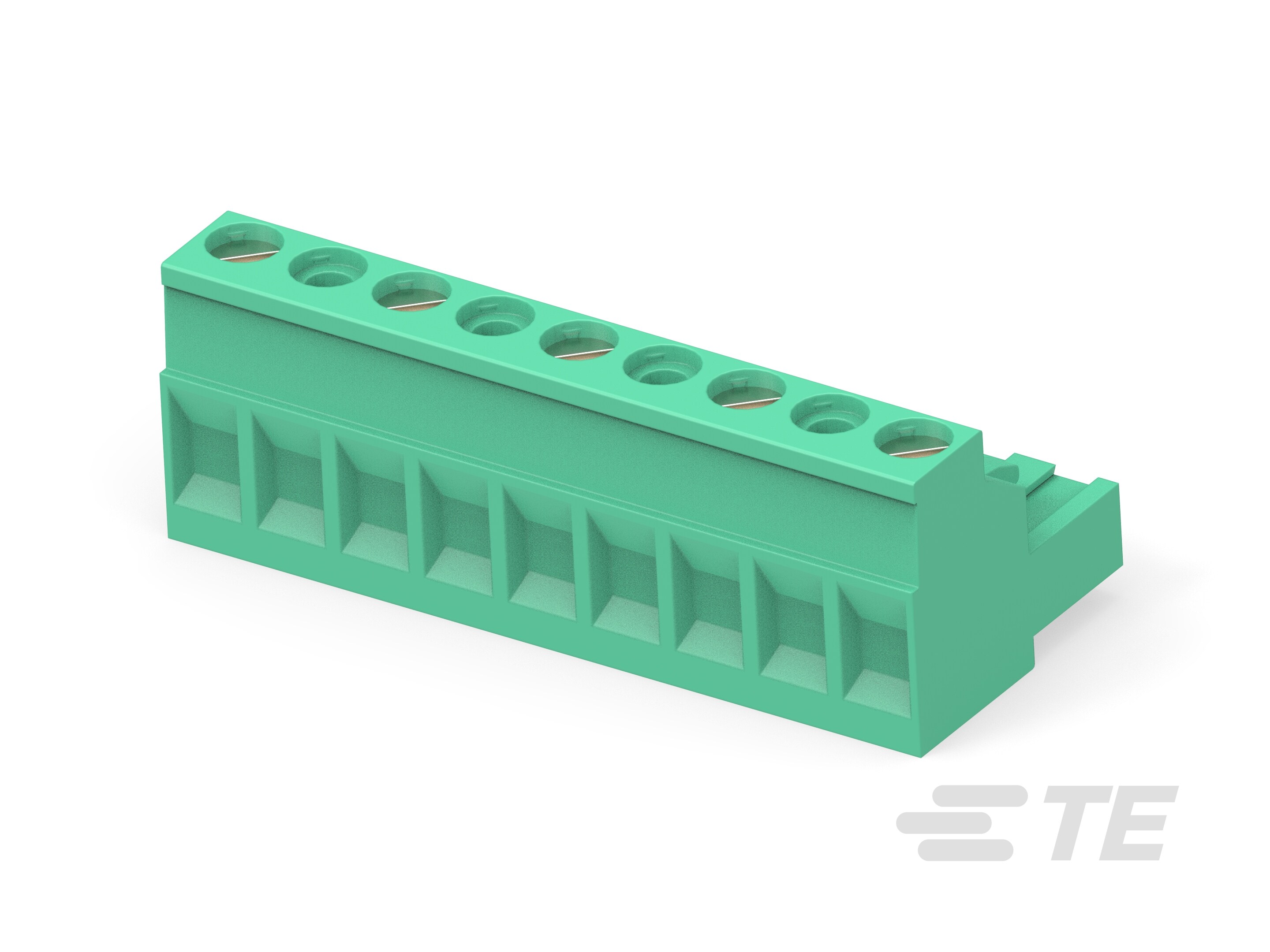

TERMI-BLOK PLUG STACKING 5P.10

More >>

Specifications

Attribute	Value
Product Category:	Connectors Terminal Blocks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282808-5
Amperage:	15 A
Gender:	Plug
Housing Material:	PA 6/6
Number of Rows:	1
Contact Material:	Phosphor Bronze
Pitch:	10 mm, .394 in
Voltage:	600 V AC
Mount Angle:	Right Angle
Block Type:	Stacking Plug
Screw Size:	M3
Package Quantity:	100
Contact Amperage:	15 A
Number of Positions:	5
Housing Color:	Green
GPL:	124
Packaging:	Box
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Wire & Cable
Product Code:	7743
Wire Size:	.03 - 2.5 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
ECCN:	EAR99
Screw Plating:	Nickel
Body Color:	Green
Entry Angle:	Top
Interlock:	With
Screw Flange:	Without
Screwless Terminal Block:	No
Wire Protection:	With
Part Aliases:	282808-5
SKU:	AMP282808-5

Detailed Description

Easily connect power and signal wires with our TERMI-BLOK PLUG STACKING 5P.10. This sturdy plug features a housing made of durable PA 6/6 in a vibrant green color, perfect for industrial applications. With a right-angle mount angle and stacking design, it allows for efficient and space-saving wire connections. The phosphor bronze contact material with tin plating ensures reliable conductivity, while the M3 screw size and wire protection feature make installation a breeze. Suitable for wire sizes 12-30 AWG, it offers a versatile solution for various projects. RoHS compliant and with an operating temperature range of -40 to 105°C, this connector guarantees both performance and environmental responsibility. Perfect for wire-to-board connections, each package contains 100 pieces, ideal for large-scale projects. Trust in its 600V AC voltage rating and 15A amperage for robust and safe connectivity in any setting.
