282816-4

Heilind Number:	AMP282816-4
Manufacturer:	TE Connectivity
Manufacturer Number:	282816-4
Datasheet:	Datasheet
ECAD Model:

Description:

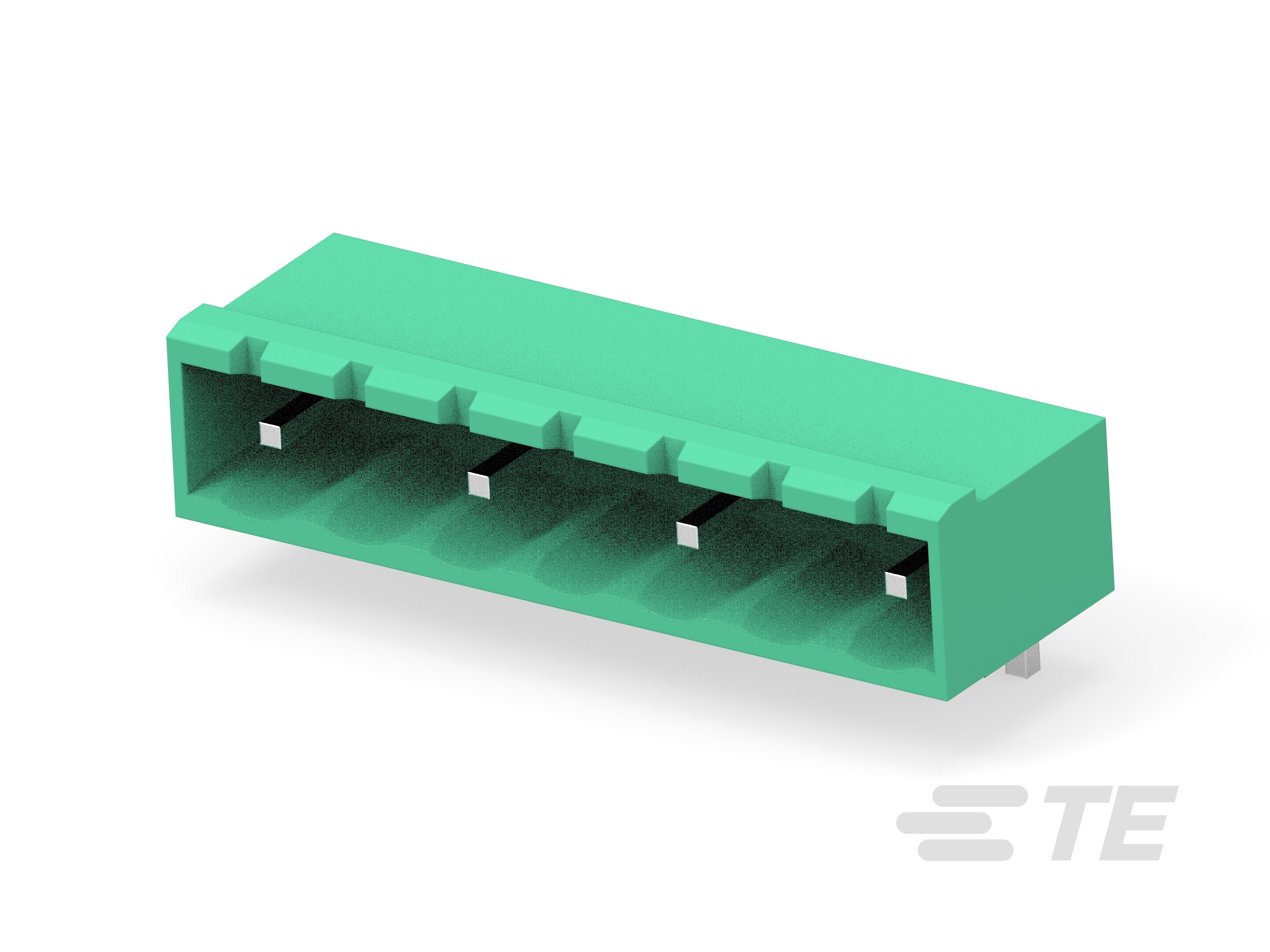

TERMI-BLOK HEADER,ASSY90 4P.

More >>

Specifications

Attribute	Value
Product Category:	Connectors Terminal Blocks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282816-4
Amperage:	15 A
Gender:	Header
Housing Material:	Polyamide 6/6 - GF
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Copper Alloy
Pitch:	10 mm, .394 in
Voltage:	600 V AC
Mount Angle:	Right Angle
Block Type:	PCB Mount
Package Quantity:	100
Contact Amperage:	15 A
Number of Positions:	4
Housing Color:	Green
GPL:	124
Tail Length:	.138 in, 3.5 mm
Packaging:	Box
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7744
Wire Size:	.05 - 3 mm², 12 - 30 AWG
Connector System:	Wire to Board
ECCN:	EAR99
Header Type:	Shrouded
Interlock:	Without
Closed End:	With
Threaded Flange:	Without
Contact Mount Style:	Through Hole
Mating Angle:	90°
Screw Flange:	Without
Screwless Terminal Block:	No
Part Aliases:	282816-4
SKU:	AMP282816-4

Detailed Description

Upgrade your power and signal connections with our TERMI-BLOK HEADER ASSY90. Designed for seamless integration on your board, this 4-position header features a right-angle mount for convenient installation. With a maximum voltage rating of 600 V AC and an amperage of 15 A, it ensures reliable performance in industrial settings. The polyamide 6/6 - GF housing in a vibrant green color not only provides durability but also adds a pop of color to your setup. Wave solder capable and RoHS compliant, it offers ease of assembly while meeting environmental standards. Suitable for wire sizes ranging from 12-30 AWG, it accommodates various applications with ease. Trust in its high-quality copper alloy contacts with tin plating for efficient conductivity. Operating temperature ranges from -40 to 105 °C (-40 to 221 °F), making it suitable for a wide range of environments. Whether you're connecting power sources or signals, this header is a reliable choice for your projects.
