282834-5

AMP282834-5
Heilind Number:AMP282834-5
Manufacturer:TE Connectivity
Manufacturer Number:282834-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

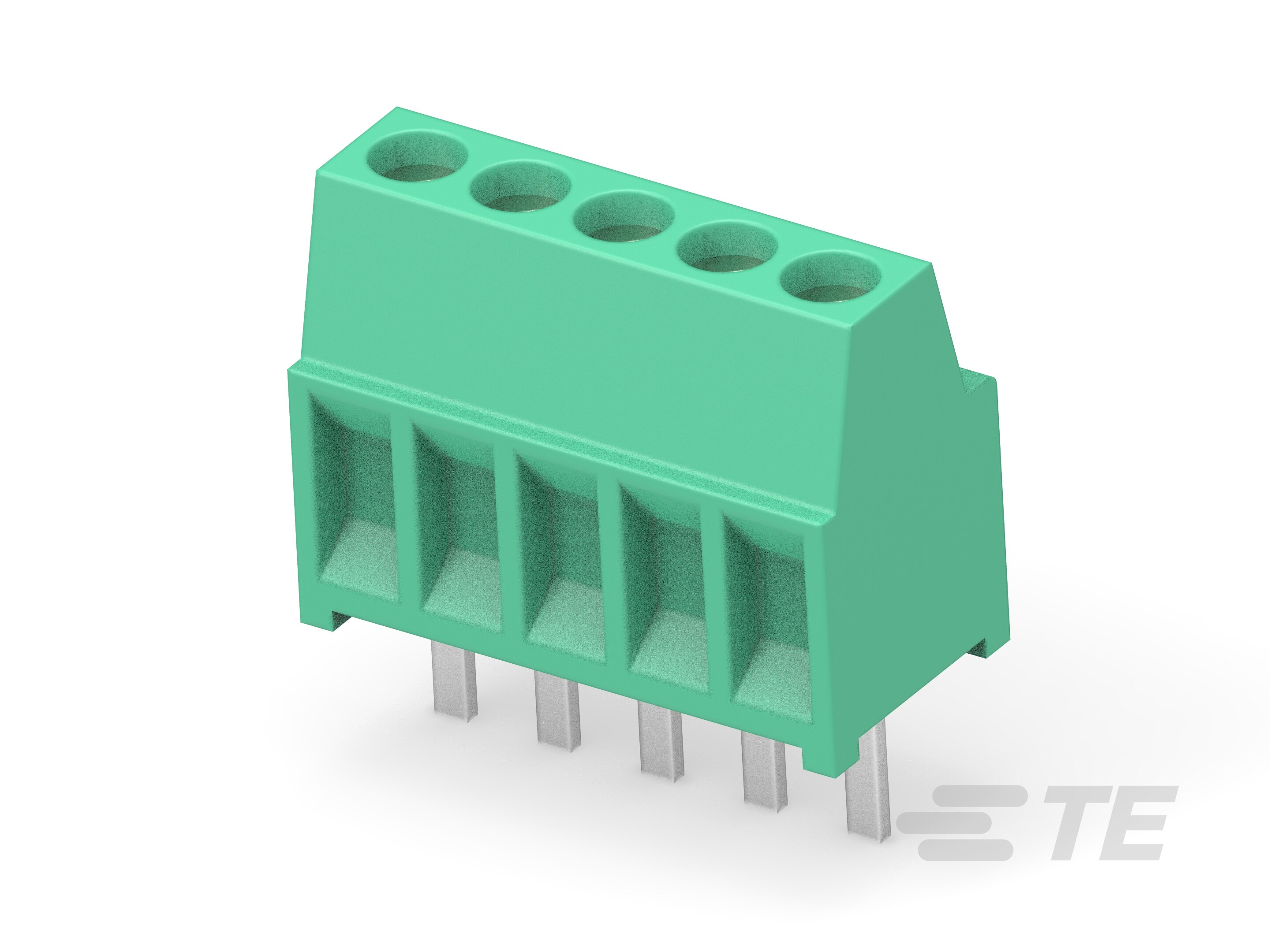

TERMI-BLOK PCB MOUNT, 90 5P.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282834-5
Amperage:10 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:5
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.1 in, 2.54 mm
Voltage:150 V AC
Mount Angle:Straight
Block Type:Stacking
Screw Size:M1.6
Package Quantity:150
Contact Amperage:10 A
Number of Positions:5
Housing Color:Green
GPL:124
Tail Length:.133 in, 3.4 mm
Packaging:Carton
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.3 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Header Only
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282834-5
SKU:AMP282834-5

Detailed Description

Enhance your PCB assembly with the TERMI-BLOK 90 5P, a versatile board mount terminal block designed for efficient power and signal connections. Featuring a straight mount angle and a durable PA 6/6 housing in a vibrant green color, this header offers a reliable solution for your electronic projects. With five contacts, suitable for wire sizes ranging from 16 to 30 AWG, it allows for secure and efficient power transfer with a maximum amperage of 10 A. Wave solder capable and RoHS compliant, this terminal block is ideal for industrial applications, operating smoothly in temperatures ranging from -40 to 110°C (-40 to 230°F). Elevate your connectivity with this high-quality, stackable header, perfect for wire-to-board configurations.
