282836-9

AMP282836-9
Heilind Number:AMP282836-9
Manufacturer:TE Connectivity
Manufacturer Number:282836-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

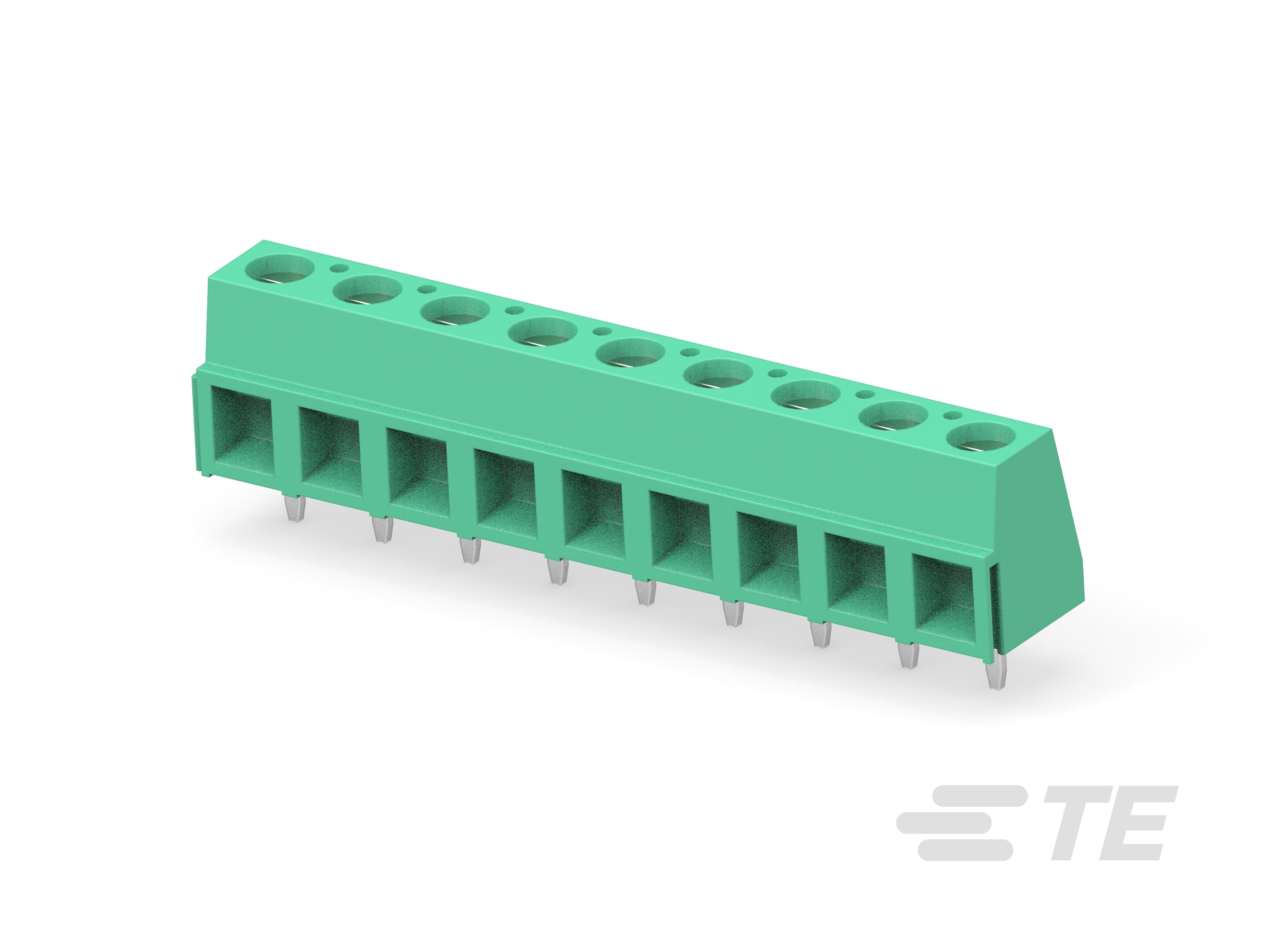

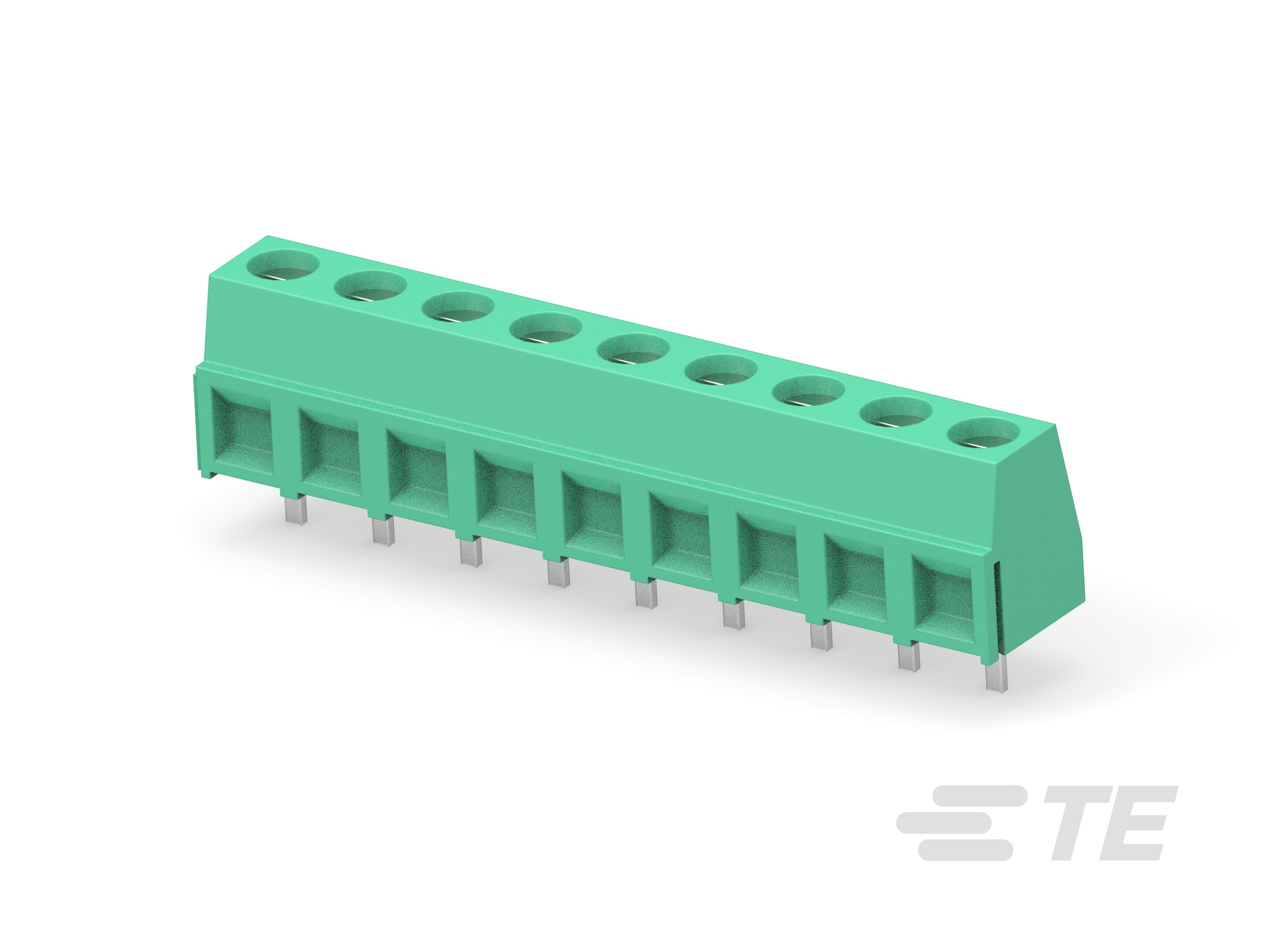

TERMI-BLOK PCB MOUNT 90 9P.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282836-9
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:9
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:100
Contact Amperage:13.5 A
Number of Positions:9
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.3 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282836-9
SKU:AMP282836-9

Detailed Description

Introducing the TERMI-BLOK PCB MOUNT 90 9P, a versatile solution for your power and signal connectivity needs. This straight-mounting, single-row header features a durable PA 6/6 housing in a vibrant green color, ensuring reliable performance in industrial settings. With 9 brass contacts plated with tin for optimal conductivity, it accommodates wire sizes ranging from 16 to 30 AWG. Operating at temperatures from -40 to 110°C (-40 to 230°F) and rated for 300V AC and 13.5A, it's suitable for a wide range of applications. Designed for easy installation on printed circuit boards with a 5mm pitch, this terminal block header is wave solder capable, making it efficient for large-scale production. RoHS compliant and lead-free solder compatible, it aligns with current environmental standards. Whether you're building prototypes or manufacturing in volume, the TERMI-BLOK 90 9P offers a reliable and cost-effective solution for your connectivity requirements.
