282837-7

AMP282837-7
Heilind Number:AMP282837-7
Manufacturer:TE Connectivity
Manufacturer Number:282837-7
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

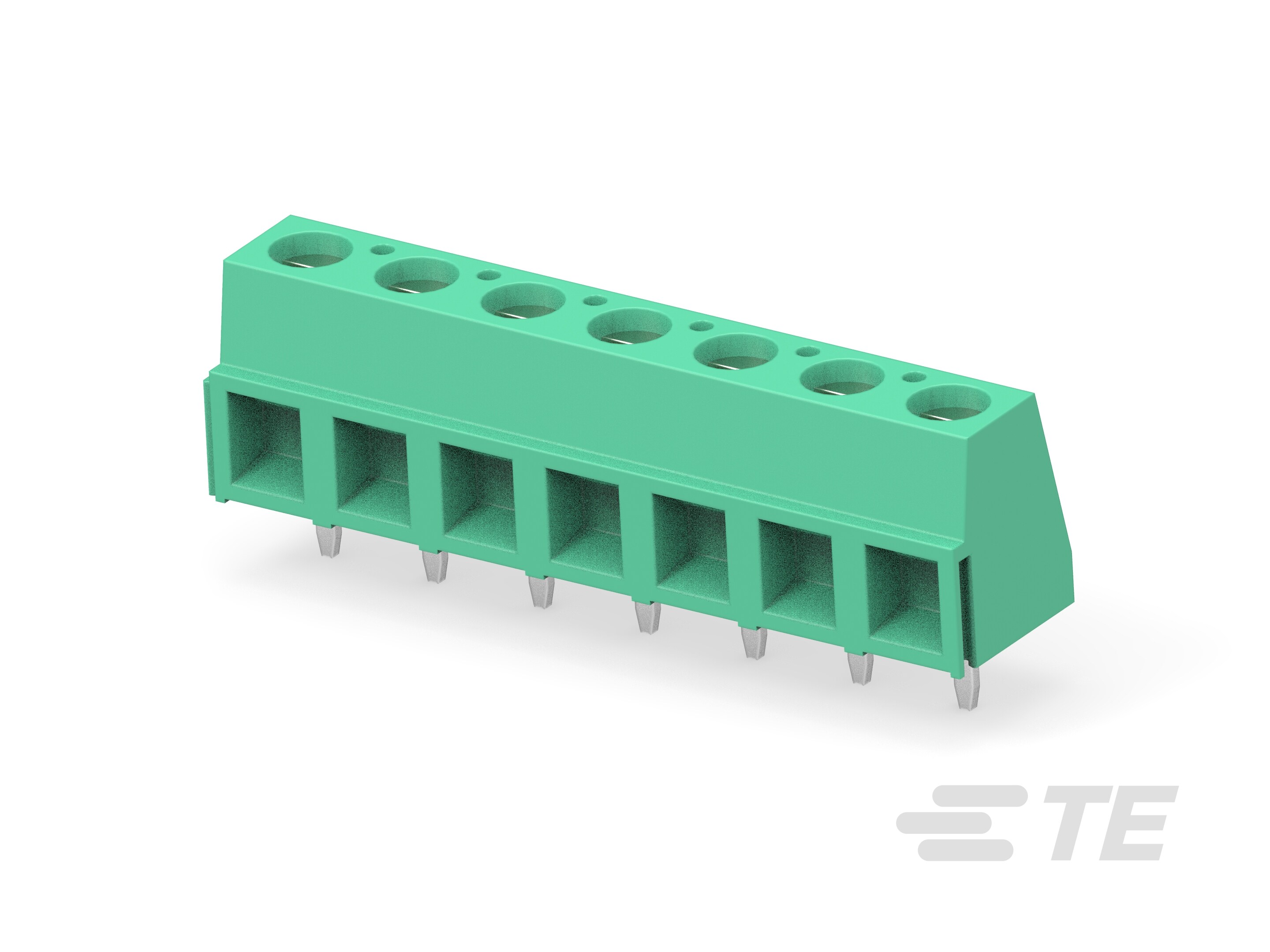

TERMI-BLOK PCB MOUNT 7P

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282837-7
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:7
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking w/interlock
Screw Size:M3
Contact Amperage:13.5 A
Number of Positions:7
Housing Color:Green
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
Connector and Contact Terminate To:Printed Circuit Board
Wire Size:.05 - 1.3 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282837-7
SKU:AMP282837-7

Detailed Description

Introducing the TERMI-BLOK PCB MOUNT 7P, a versatile solution for your connectivity needs. This header features a sturdy PA 6/6 housing and brass contacts, ensuring reliable performance in industrial environments. With 7 positions and a 5.08mm pitch, it accommodates power and signal connections with ease. Its vertical board mount design and M3 screw size offer secure installation. Operating at temperatures ranging from -40 to 110°C, it's suitable for various applications. RoHS compliant and featuring Tin plating, it meets environmental standards while maintaining signal integrity. Perfect for wire-to-board connections, this terminal block header comes in a package of 100, ready to streamline your assembly process.
