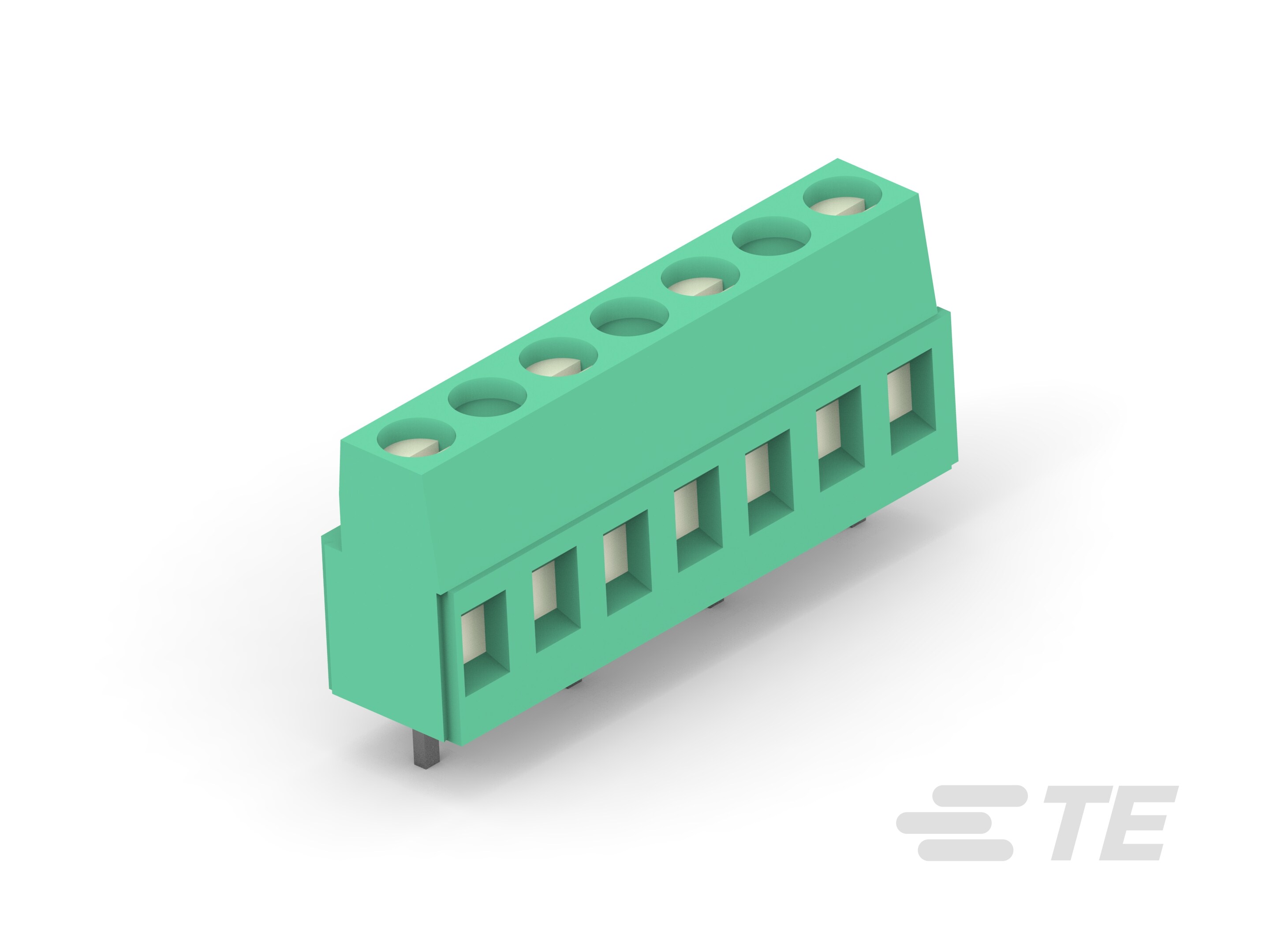

282843-6

Heilind Number:	AMP282843-6
Manufacturer:	TE Connectivity
Manufacturer Number:	282843-6
Datasheet:	Datasheet
ECAD Model:

Description:

TERMI-BLOK PCB MOUNT 90 6P.1

More >>

Specifications

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282843-6
Amperage:	17.5 A
Gender:	Header
Housing Material:	PA 6/6
Number of Contacts:	6
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Brass
Pitch:	10.16 mm, .4 in
Voltage:	600 V AC
Mount Angle:	Straight
Block Type:	Stacking w/interlock
Screw Size:	M3
Package Quantity:	100
Contact Amperage:	17.5 A
Number of Positions:	6
Housing Color:	Green
GPL:	124
Tail Length:	.138 in, 3.5 mm
Packaging:	Box
Operating Temperature Range:	-40 - 110 °C, -40 - 230 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7742
Wire Size:	.05 - 3 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
Stacking Configuration:	Side Stackable
ECCN:	EAR99
Screw Plating:	Nickel
Entry Angle:	Side
Interlock:	With
Closed End:	Without
Stacked Levels:	Without
Threaded Flange:	Without
Contact Mount Style:	Through Hole
Marking Color:	Black
Screw Flange:	Without
Screwless Terminal Block:	No
Wire Protection:	With
Part Aliases:	282843-6
SKU:	AMP282843-6

Detailed Description

Introducing the TERMI-BLOK PCB Mount 90 6P.1, a versatile solution for seamless board connectivity. This header, featuring a 6-position, 1-row design, is crafted for high-performance applications, with a 17.5 A amperage rating and 600 V AC voltage capacity. Its durable PA 6/6 housing in a sleek green finish ensures reliability in any environment, while brass contacts with tin plating guarantee optimal conductivity. With a 10.16 mm pitch and straight mount angle, installation is a breeze. Wave solder capable and ROHS compliant, this connector is not only efficient but also environmentally friendly. Whether for power or signal transmission, trust in the TERMI-BLOK for secure and efficient PCB connections.
