| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 2828434-1 |
| Series: | NanoRF |
| Mount Type: | Panel |
| Mount Angle: | Vertical |
| Impedance: | 50 Ω |
| Body Material: | Stainless Steel |
| Contact Amperage: | 1 A |
| Number of Positions: | 8 |
| GPL: | E25 |
| Operating Temperature Range: | -65 - 120 °C, -85 - 248 °F |
| Circuit Application: | Signal |
| GPL Description: | Aerospace Defense & Marine |
| Connector and Contact Terminate To: | Wire & Cable |
| Product Code: | X941 |
| Number of Coaxial Contacts: | 8 |
| Body Finish: | Passivated |
| Center Contact Material: | Beryllium Copper |
| Connector System: | Cable-to-Cable |
| Contact Spacing: | .11 in, 2.79 mm |
| ECCN: | EAR99 |
| Mounting Style: | Screw |
| Part Aliases: | 2828434-1 |
| SKU: | AMP2828434-1 |
2828434-1
Specifications
Detailed Description

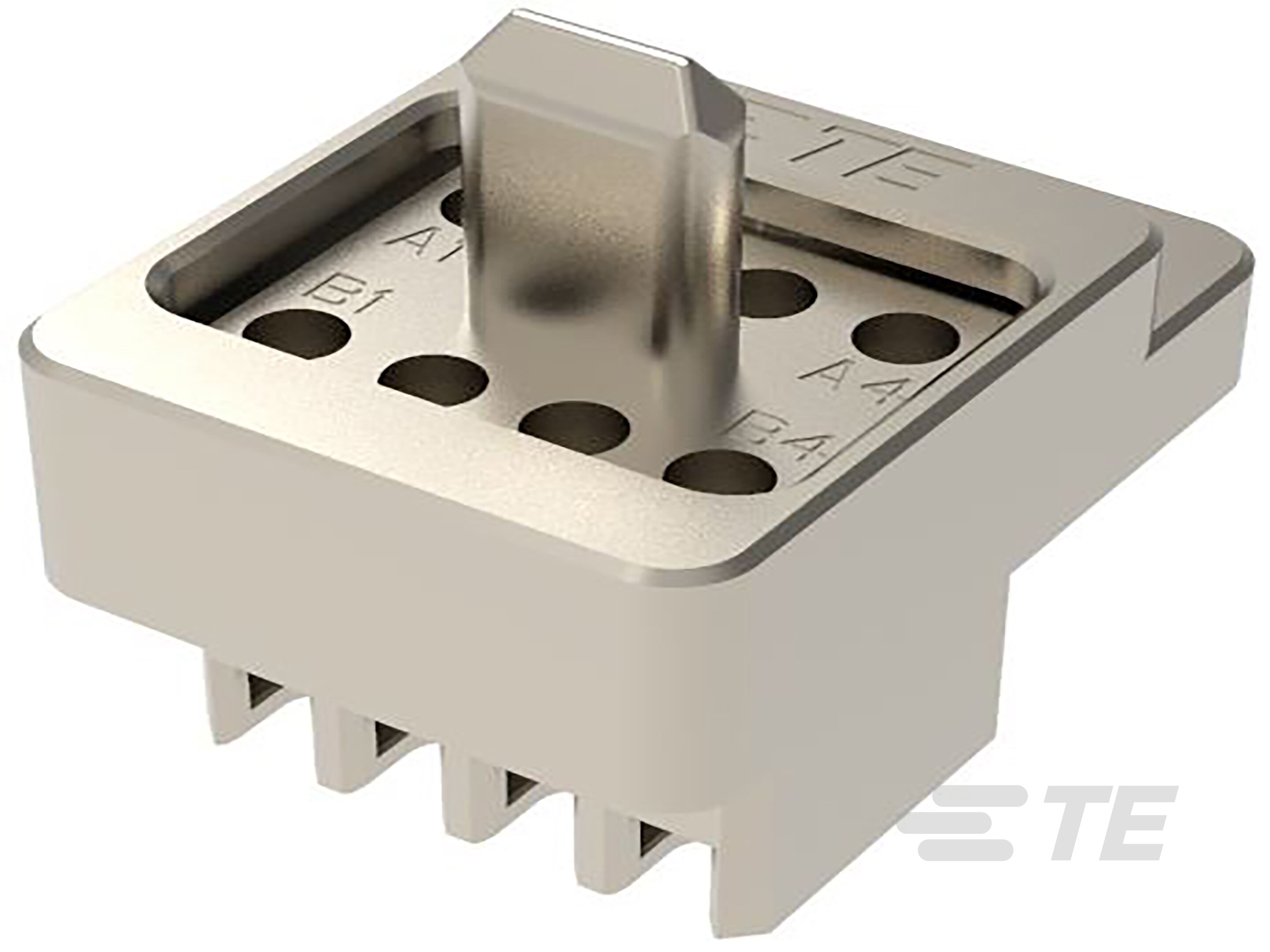

Enhance your signal transmission with the NanoRF BP MODULE 8 POSITION. Crafted from durable stainless steel, this panel-mount connector features 8 coaxial contacts, ideal for aerospace, defense, and marine applications. With an impedance of 50 Ω and a contact amperage of 1 A, it ensures reliable performance in demanding environments. The passivated body finish and beryllium copper center contacts guarantee both durability and signal integrity. Operating temperature ranges from -65 to 120 °C (-85 to 248 °F), making it suitable for a variety of conditions. RoHS compliant and suitable for cable-to-cable connections, this connector is a versatile and essential component for your RF coaxial setups.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
