282844-4

AMP282844-4
Heilind Number:AMP282844-4
Manufacturer:TE Connectivity
Manufacturer Number:282844-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

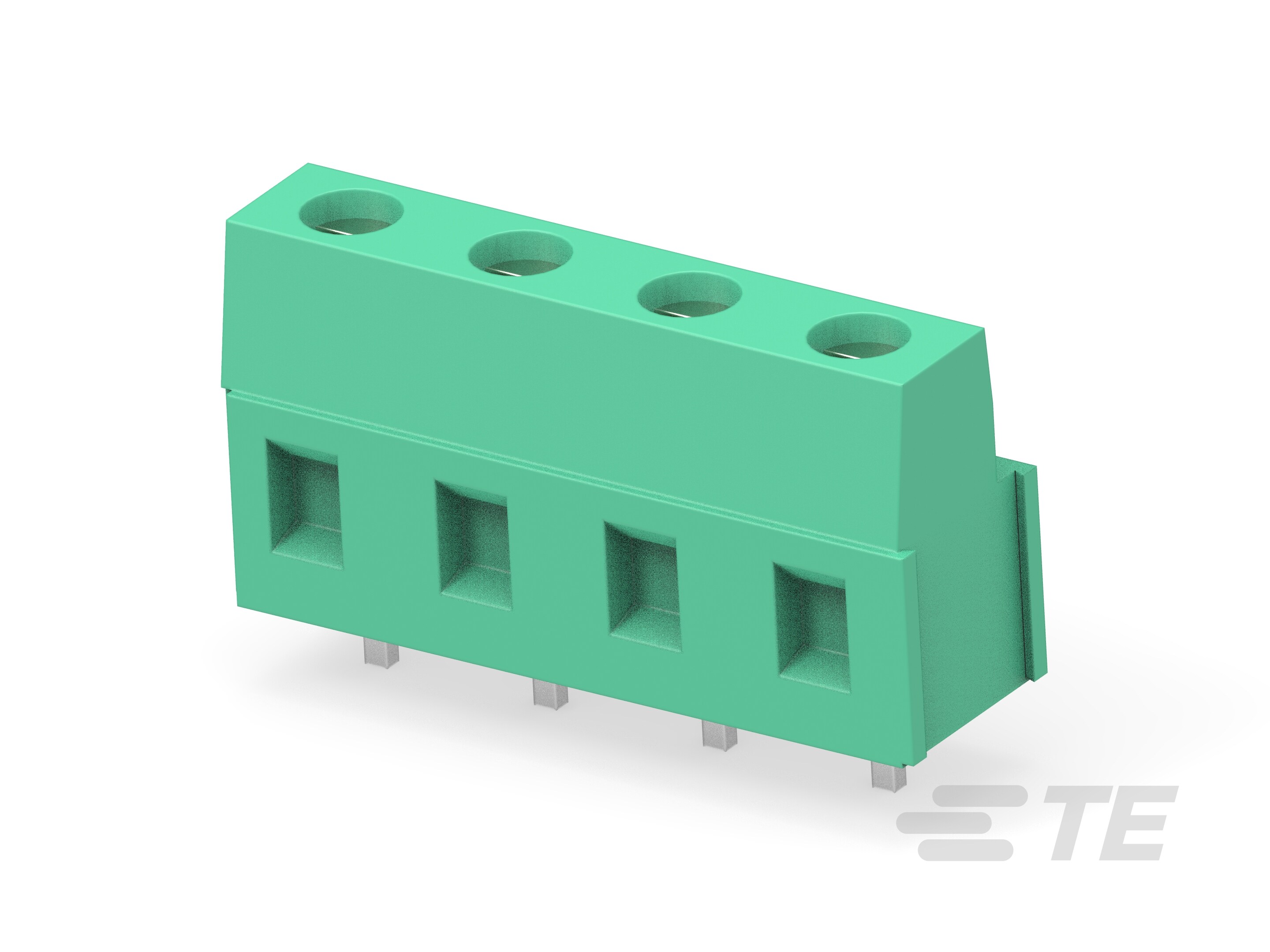

TERMI-BLOK PCB MOUNT 90 4P.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282844-4
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Vertical
Screw Size:M3
Contact Amperage:17.5 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282844-4
SKU:AMP282844-4

Detailed Description

Introducing the TERMI-BLOK PCB Mount 90 4P, a versatile solution for your connectivity needs. This 4-position header boasts a durable PA 6/6 housing in a sleek green color, perfect for board mounting. With a contact rating of 17.5 A and a voltage capacity of 300 V AC, it's ideal for power and signal applications. The brass contacts with tin plating ensure reliable conductivity, while the wide operating temperature range of -40 to 110°C (-40 to 230°F) guarantees performance in diverse environments. Wave solder capable and ROHS compliant, this connector is both easy to install and environmentally friendly. Whether you're working with 12-30 AWG wire sizes or require a secure through-hole mount, the TERMI-BLOK 90 4P is the perfect choice for your industrial projects.
