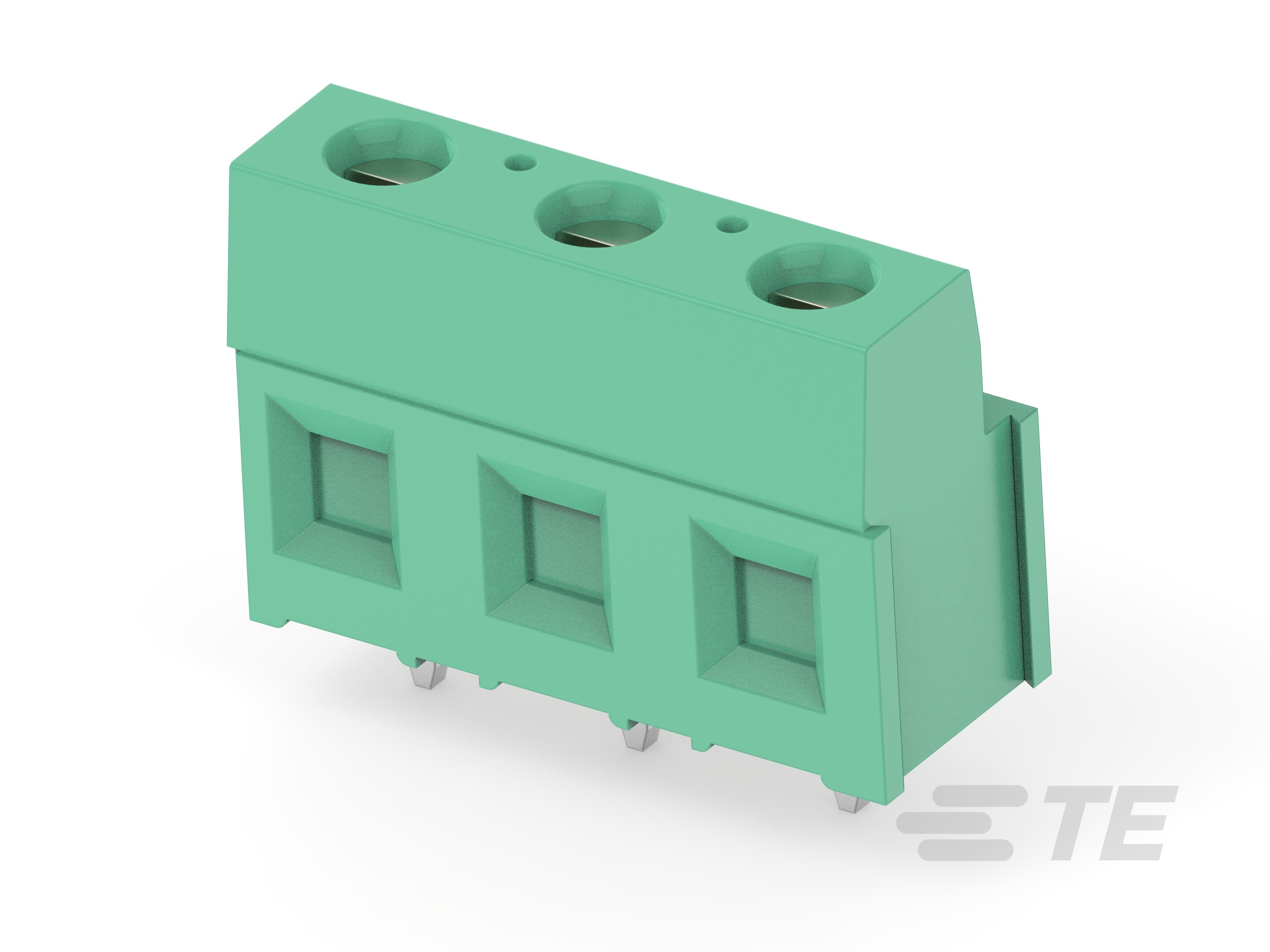

282845-3

Heilind Number:	AMP282845-3
Manufacturer:	TE Connectivity
Manufacturer Number:	282845-3
Datasheet:	Datasheet
ECAD Model:

Description:

TERM-BLOK,PCB MNT,90DG,3P,7.62

More >>

Specifications

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282845-3
Amperage:	17.5 A
Gender:	Header
Housing Material:	PA 6/6
Number of Contacts:	3
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Brass
Pitch:	.3 in, 7.62 mm
Voltage:	300 V AC
Mount Angle:	Vertical
Block Type:	PCB Mount
Screw Size:	M3
Package Quantity:	150
Contact Amperage:	17.5 A
Number of Positions:	3
Housing Color:	Green
GPL:	124
Tail Length:	.138 in, 3.5 mm
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7742
Wire Size:	.05 - 3 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
Stacking Configuration:	Side Stackable
ECCN:	EAR99
Header Type:	Shrouded
Screw Plating:	Nickel
Entry Angle:	Side
Interlock:	With
Closed End:	Without
Stacked Levels:	Without
Contact Mount Style:	Through Hole
Marking Color:	Black
Screw Flange:	Without
Screwless Terminal Block:	Yes
Wire Protection:	With
Part Aliases:	282845-3
SKU:	AMP282845-3

Detailed Description

Introducing a versatile solution for your PCB mounting needs, this 90-degree TERM-BLOK features a 3-position header with a pitch of 7.62mm. With a durable PA 6/6 housing in a vibrant green color, it offers reliable connectivity for power and signal applications. The brass contacts with tin plating ensure efficient performance, while the screwless terminal block design allows for easy installation. Rated for 17.5A and 300V AC, it is suitable for a wide range of industrial environments. Operating temperature ranges from -40 to 105°C (-40 to 221°F), making it ideal for diverse applications. RoHS compliant and suitable for lead-free solder processes, this terminal block header is a dependable choice for your projects.
