282851-6

AMP282851-6
Heilind Number:AMP282851-6
Manufacturer:TE Connectivity
Manufacturer Number:282851-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

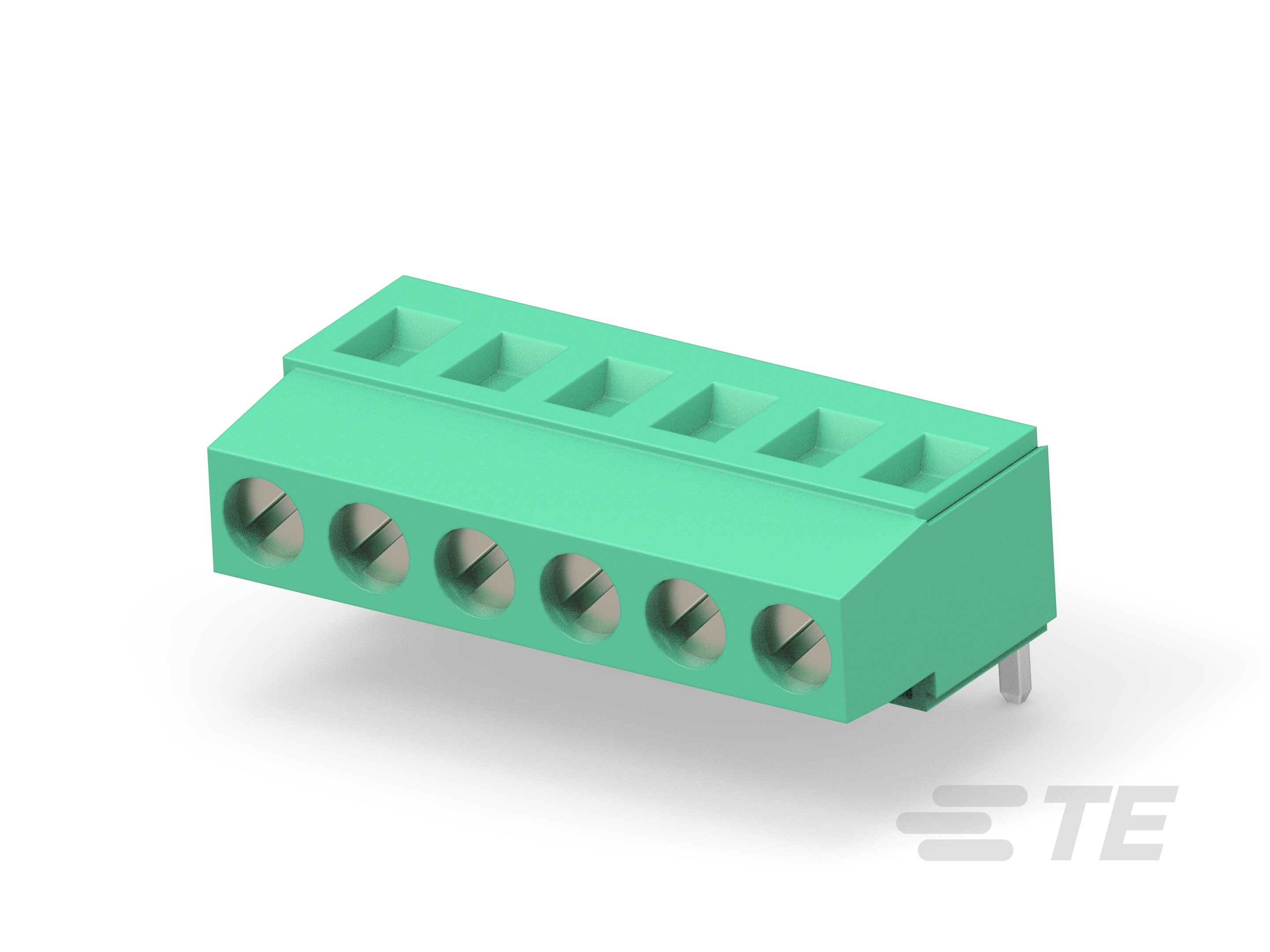

TERMI-BLOK PCB MOUNT 180 6P.5

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282851-6
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Screw Size:M3
Package Quantity:100
Contact Amperage:17.5 A
Number of Positions:6
Housing Color:Green
GPL:124
Tail Length:.15 in, 3.8 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Header Only
Screw Plating:Nickel
Entry Angle:Top
Interlock:With
Closed End:With
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282851-6
SKU:AMP282851-6

Detailed Description

Introducing the TERMI-BLOK PCB Mount 180 6P.5, a versatile and reliable solution for power and signal connections. This header features a 6-position, single-row design with a 5.08mm pitch, ideal for accommodating various wire sizes ranging from 12 to 30 AWG. With a current rating of 17.5 A and a voltage capacity of 300 V AC, it ensures efficient performance in industrial applications. The PA 6/6 housing in a vibrant green color offers durability and easy identification. Designed for board mount installation, it is wave solder capable up to 265°C, making assembly convenient and efficient. Operating within a wide temperature range of -40 to 105°C, this header is suitable for diverse environments. With tin-plated brass contacts and nickel-plated brass screws, it guarantees secure and stable connections. RoHS compliant and lead-free solder processes make it environmentally friendly. Whether for power distribution or signal transmission, the TERMI-BLOK PCB Mount header is a dependable choice for your connectivity needs.
