282851-8

AMP282851-8
Heilind Number:AMP282851-8
Manufacturer:TE Connectivity
Manufacturer Number:282851-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

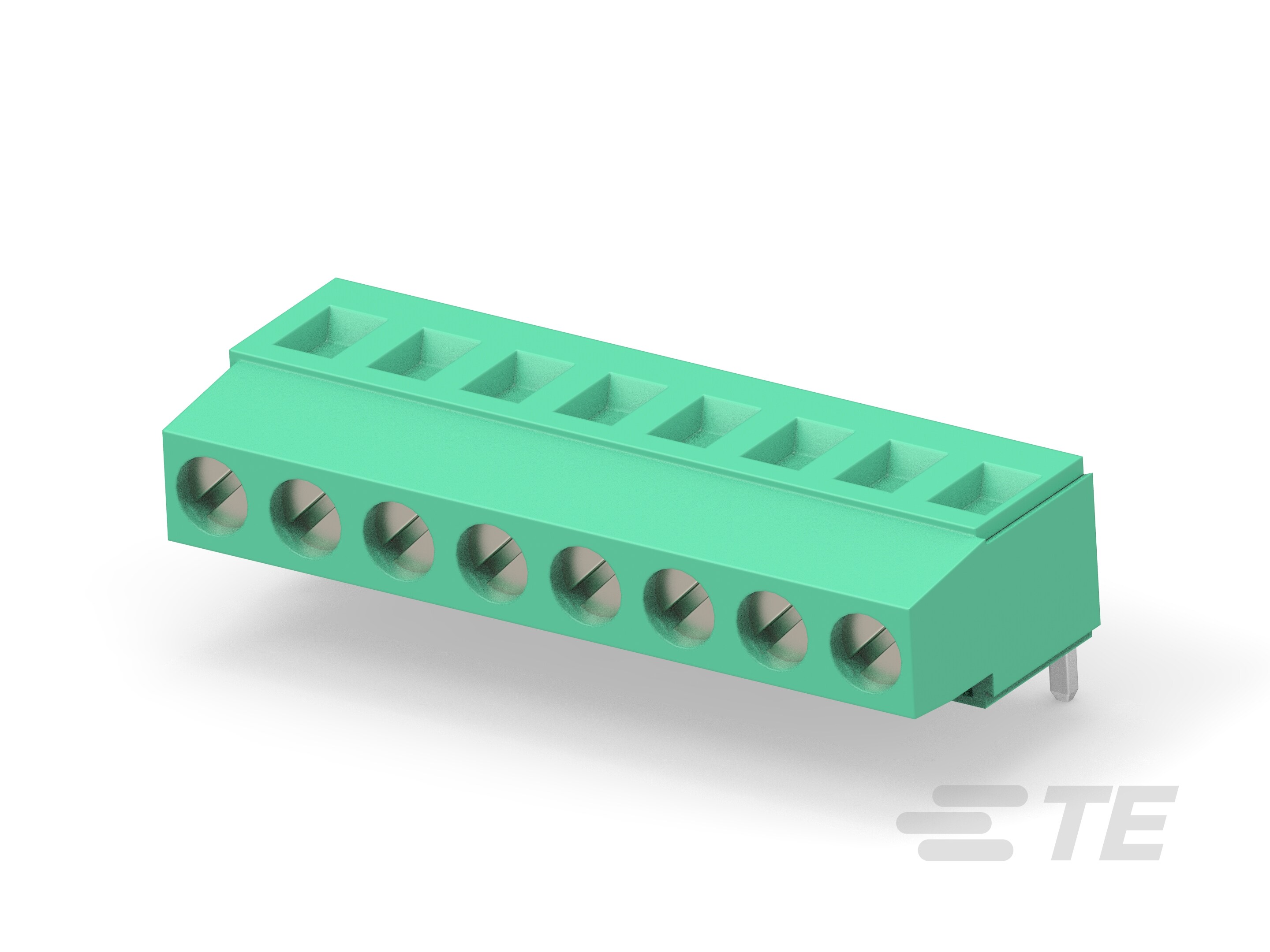

TERMI-BLOK PCB MOUNT 180 8P.5

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282851-8
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Screw Size:M3
Package Quantity:100
Contact Amperage:17.5 A
Number of Positions:8
Housing Color:Green
GPL:124
Tail Length:.15 in, 3.8 mm
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Header Only
Screw Plating:Nickel
Entry Angle:Top
Interlock:With
Closed End:With
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282851-8
SKU:AMP282851-8

Detailed Description

Experience seamless power and signal connectivity with the TERMI-BLOK PCB Mount 180 8P.5 header, designed for efficient board mounting. With a durable PA 6/6 housing in a vibrant green color, this connector offers reliability in industrial settings. Featuring brass contacts with tin plating, it ensures secure and efficient circuit connections. The right-angle mount type with a 5.08mm pitch allows for convenient installation. With an operating temperature range of -40 to 105°C, this header is suitable for a wide range of applications. RoHS compliant and packaged in a box of 100, it's the perfect choice for your wire-to-board connections.
