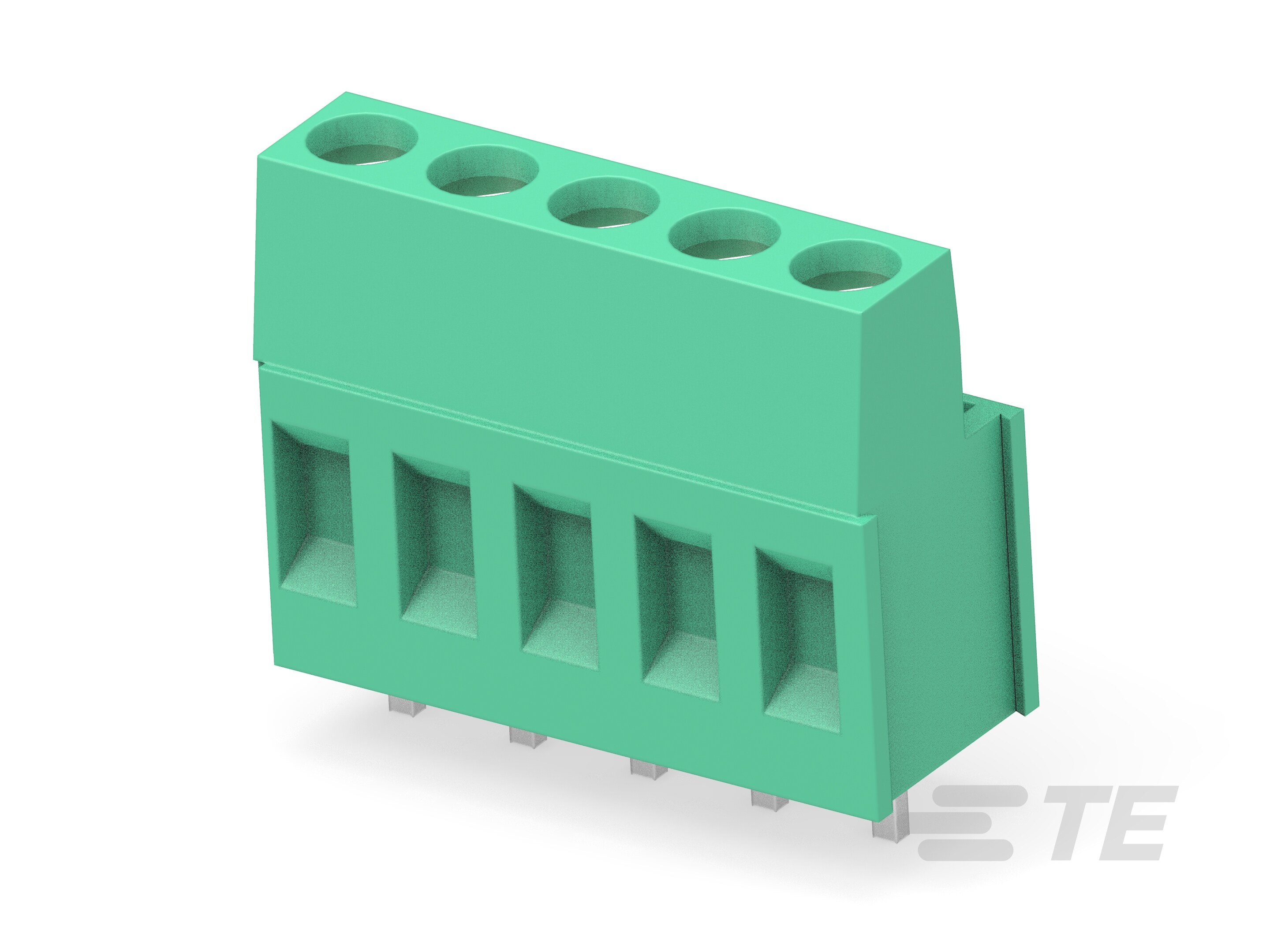

282856-5

Heilind Number:	AMP282856-5
Manufacturer:	TE Connectivity
Manufacturer Number:	282856-5
Datasheet:	Datasheet
ECAD Model:

Description:

TERMI-BLOK PCB MOUNT 5P

More >>

Specifications

Attribute	Value
Product Category:	Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 282856-5
Amperage:	24 A
Gender:	Header
Housing Material:	PA 6/6
Number of Contacts:	5
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Brass
Pitch:	.197 in, 5 mm
Voltage:	300 V AC
Mount Angle:	Straight
Block Type:	Stacking w/interlock
Screw Size:	M3
Package Quantity:	150
Contact Amperage:	24 A
Number of Positions:	5
Housing Color:	Green
GPL:	124
Tail Length:	.138 in, 3.5 mm
Packaging:	Box
Operating Temperature Range:	-40 - 110 °C, -40 - 230 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7742
Wire Size:	.05 - 3 mm², 12 - 30 AWG
Connector System:	Wire to Board
Screw Material:	Brass
Stacking Configuration:	Side Stackable
ECCN:	EAR99
Screw Plating:	Nickel
Entry Angle:	Side
Interlock:	With
Closed End:	Without
Stacked Levels:	Without
Contact Mount Style:	Through Hole
Screw Flange:	Without
Screwless Terminal Block:	No
Wire Protection:	With
Part Aliases:	282856-5
SKU:	AMP282856-5

Detailed Description

Introducing our TERMI-BLOK PCB MOUNT 5P, a versatile solution for power and signal applications. With a robust housing made of PA 6/6 in a sleek green finish, this header boasts five contacts on a single row, perfect for efficient board mounting. Designed for reliability, it can handle an amperage of 24 A and voltage up to 300 V AC. The straight mount angle and 5 mm pitch ensure easy installation, while the tin-plated brass contacts guarantee secure connections. Operating smoothly in temperatures ranging from -40 to 110°C, this terminal block is ideal for industrial use. With wave solder capability and RoHS compliance, it meets the highest standards of quality and sustainability. Experience seamless wire-to-board connectivity with our TERMI-BLOK PCB MOUNT 5P.
