282909-2

AMP282909-2
Heilind Number:AMP282909-2
Manufacturer:TE Connectivity
Manufacturer Number:282909-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

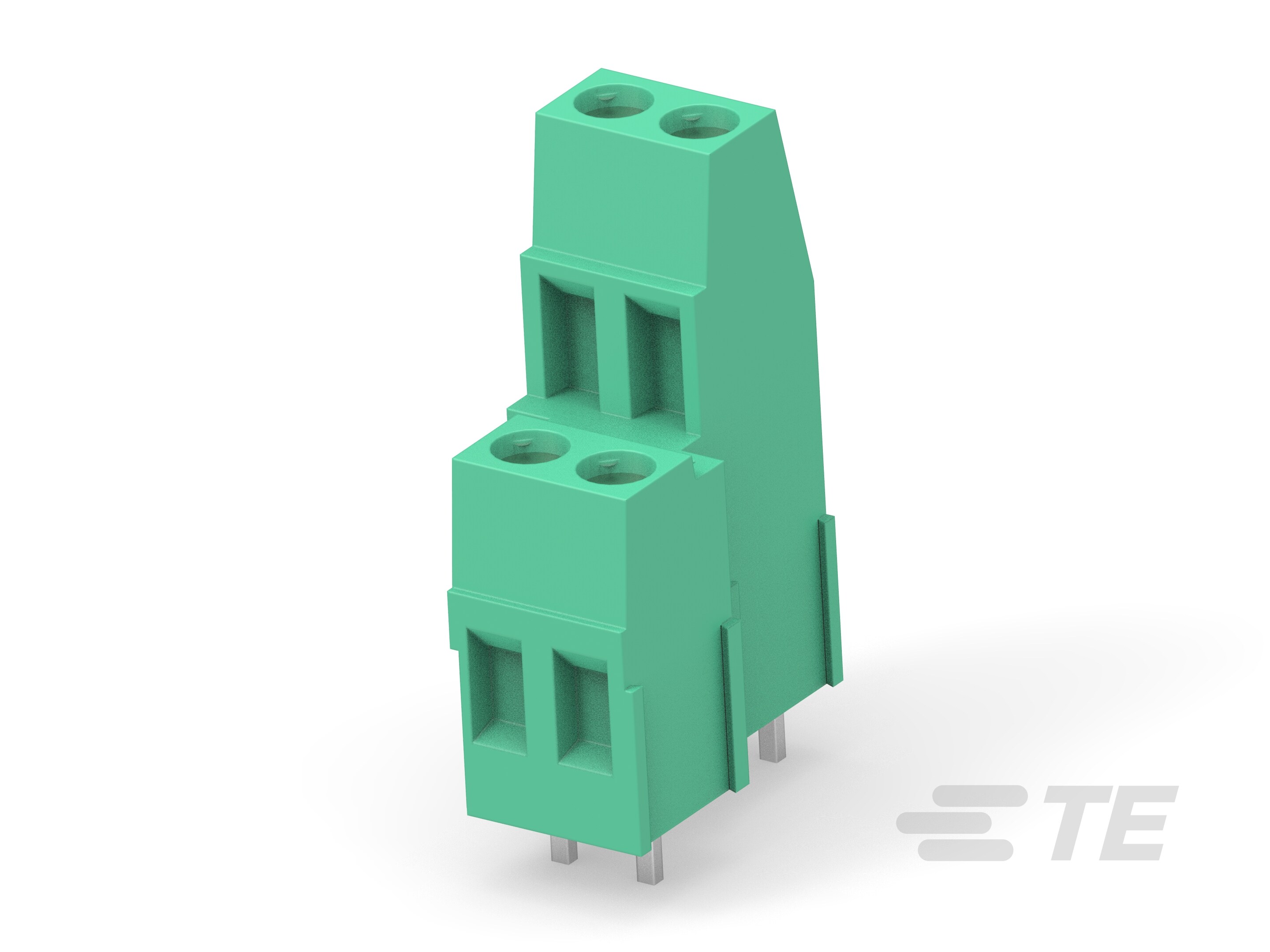

2P TERMI-BLOK,PCB MOUNT

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282909-2
Amperage:24 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:2
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:None
Screw Size:M3
Package Quantity:200
Contact Amperage:24 A
Number of Positions:2
Housing Color:Green
GPL:124
Tail Length:.157 in, 4 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Level 1/Level 2
Contact Mount Style:Through Hole
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:Yes
Part Aliases:282909-2
SKU:AMP282909-2

Detailed Description

Easily connect power and signal wires with our Pluggable Terminal Block Header. Featuring a 24 A amperage and 300 V AC voltage, this green header is essential for board mount applications. With two rows of two contacts each, it offers a secure and efficient connection. The brass contact material with tin plating ensures durability and reliability in industrial settings. Wave solder capable and RoHS compliant, it meets high-quality standards. Suitable for wire sizes ranging from 12 to 30 AWG, it accommodates various setups. Ideal for power and signal circuit applications, this header is a versatile solution for your connectivity needs.
