282909-4

AMP282909-4
Heilind Number:AMP282909-4
Manufacturer:TE Connectivity
Manufacturer Number:282909-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

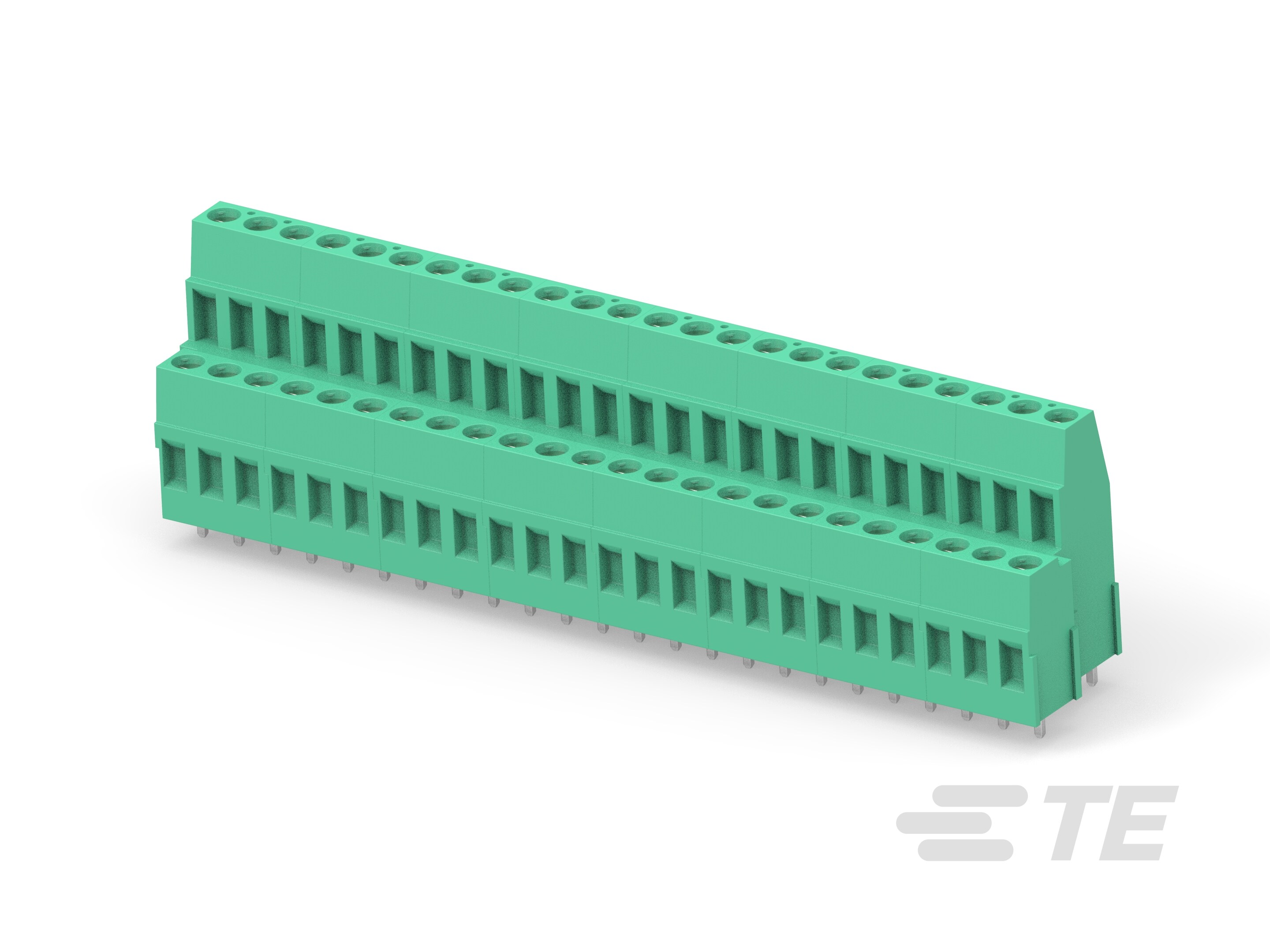

TERMI-BLOK PCB MOUNT,5.08 MM

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282909-4
Amperage:24 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:2
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Screw Size:M3
Package Quantity:400
Contact Amperage:24 A
Number of Positions:24
Housing Color:Green
GPL:124
Tail Length:.157 in, 4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Level 1/Level 2
Contact Mount Style:Through Hole
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:Yes
Part Aliases:282909-4
SKU:AMP282909-4

Detailed Description

Enhance your PCB assembly with our TERMI-BLOK PCB Mount, featuring a 5.08 mm pitch for efficient connectivity. This two-row header, made of durable PA 6/6 housing material in a vibrant green color, offers reliable performance in power and signal applications. With a 24 A amperage rating and 300 V AC voltage capacity, it ensures secure connections. The brass contact material with tin plating guarantees excellent conductivity, while the M3 screw size allows for easy installation. Operating within a wide temperature range of -40 to 105 °C (-40 to 221 °F), this vertical mount connector is suitable for industrial use. Its wire-to-board connector system, suitable for 12-30 AWG wire sizes, offers versatility in applications. With RoHS compliance and 400 units per package, it's an environmentally friendly and cost-effective choice for your projects.
