282959-7

AMP282959-7
Heilind Number:AMP282959-7
Manufacturer:TE Connectivity
Manufacturer Number:282959-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

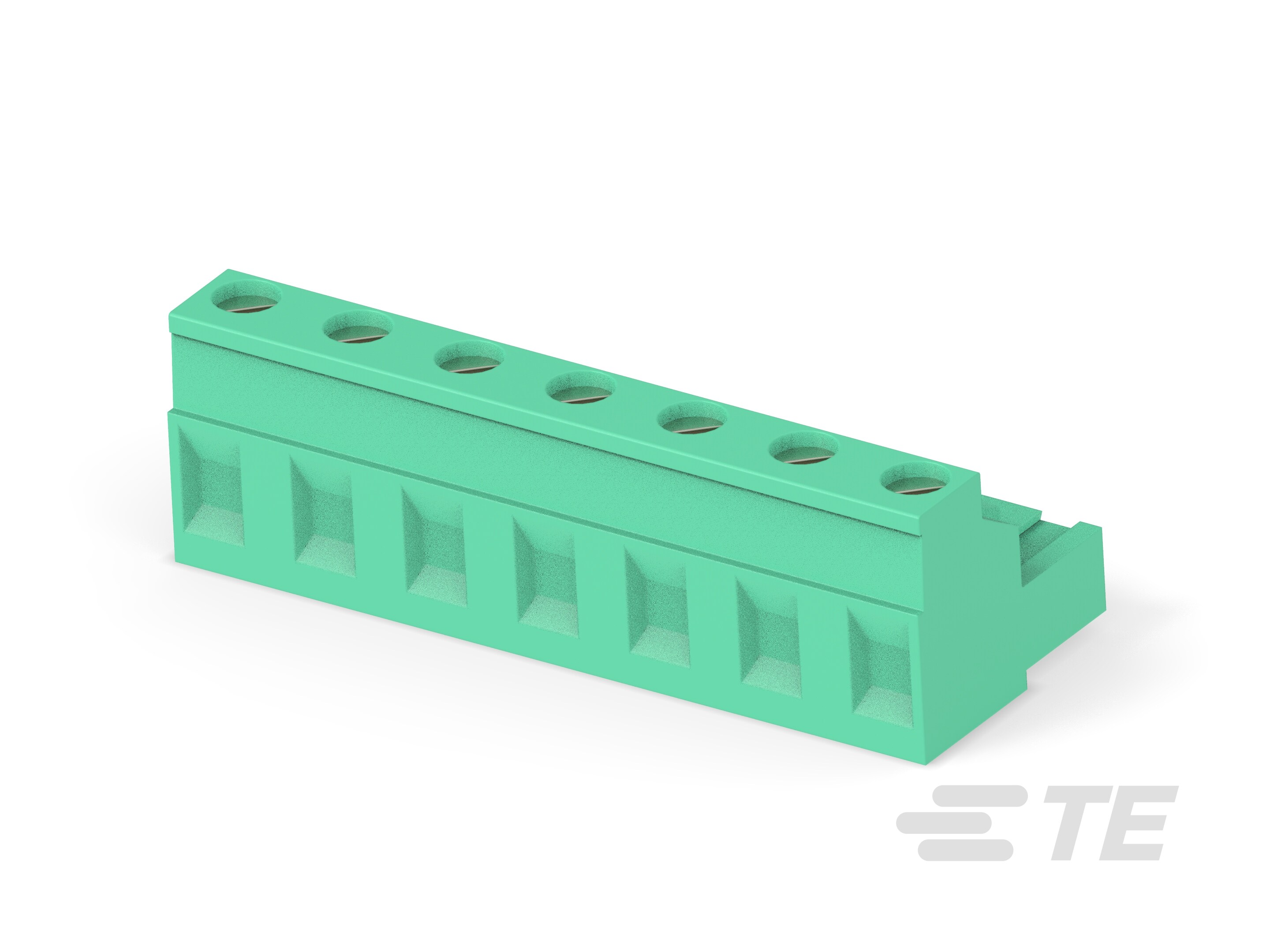

TERMI-BLOK PLUG 7P. 7

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282959-7
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.295 in, 7.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:50
Contact Amperage:15 A
Number of Positions:7
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side, Top
Interlock:Without
Marking Color:Black
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282959-7
SKU:AMP282959-7

Detailed Description

Easily connect and power your devices with our TERMI-BLOK PLUG, featuring seven phosphor bronze contacts for reliable signal transmission. With a 15A amperage and 300V AC voltage rating, this stacking plug is ideal for power and signal applications in industrial settings. Its right-angle mount angle and PA 6/6 housing in green ensure secure and efficient installation. Suitable for wire sizes ranging from 12 to 30 AWG, it offers versatile connectivity options. Operating temperature range of -40 to 105°C (-40 to 221°F) and RoHS compliance guarantee performance and environmental responsibility. Each package contains 50 units, making it a convenient choice for your wiring needs.
