284391-3

AMP284391-3
Heilind Number:AMP284391-3
Manufacturer:TE Connectivity
Manufacturer Number:284391-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

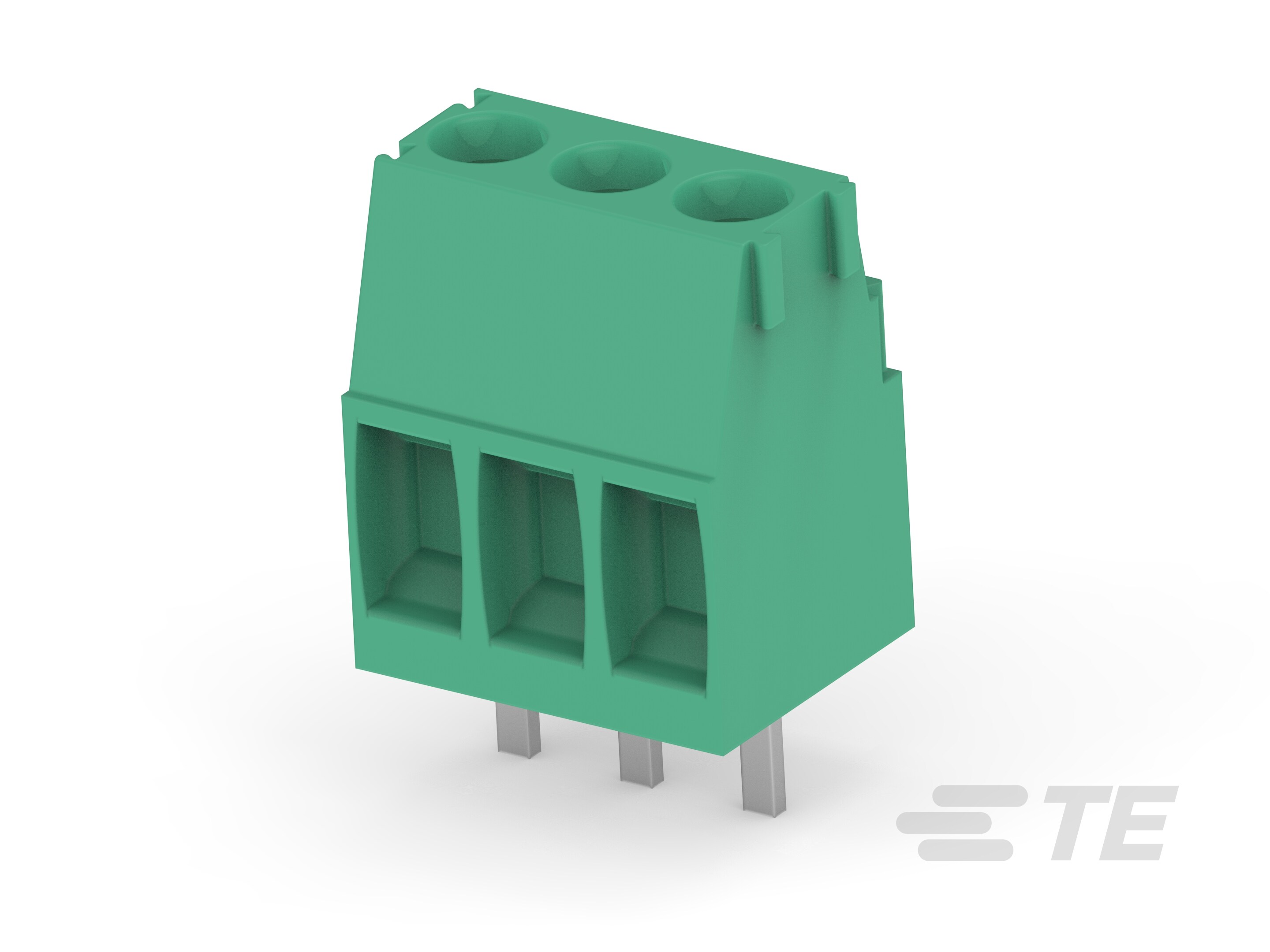

TERMI-BLOK PCB SIDE ENTRY STAC

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284391-3
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:200
Contact Amperage:12 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284391-3
SKU:AMP284391-3

Detailed Description

Introducing our TERMI-BLOK PCB SIDE ENTRY STAC, a versatile solution for your power and signal connectivity needs. This header features a single row design with 3 contacts, ideal for board mount applications. Made with durable PA 6/6 housing in a vibrant green color, it offers reliable performance in industrial environments. With a current rating of 12 A and voltage capability of 300 V AC, it ensures efficient power transmission. The contact material is tin-plated brass, suitable for wave soldering processes. Its straight mount angle and side entry configuration make installation easy, while the interlock feature adds stability. Operating temperature range of -40 to 110°C (-40 to 230°F) ensures suitability for various conditions. RoHS compliant and lead-free, it meets environmental standards. Whether for wire-to-board connections or stacking applications, this terminal block header is a dependable choice. Each package contains 200 units, making it convenient for bulk installations. Trust in the quality and performance of our TERMI-BLOK header for seamless connectivity in your projects.
