284511-9

AMP284511-9
Heilind Number:AMP284511-9
Manufacturer:TE Connectivity
Manufacturer Number:284511-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

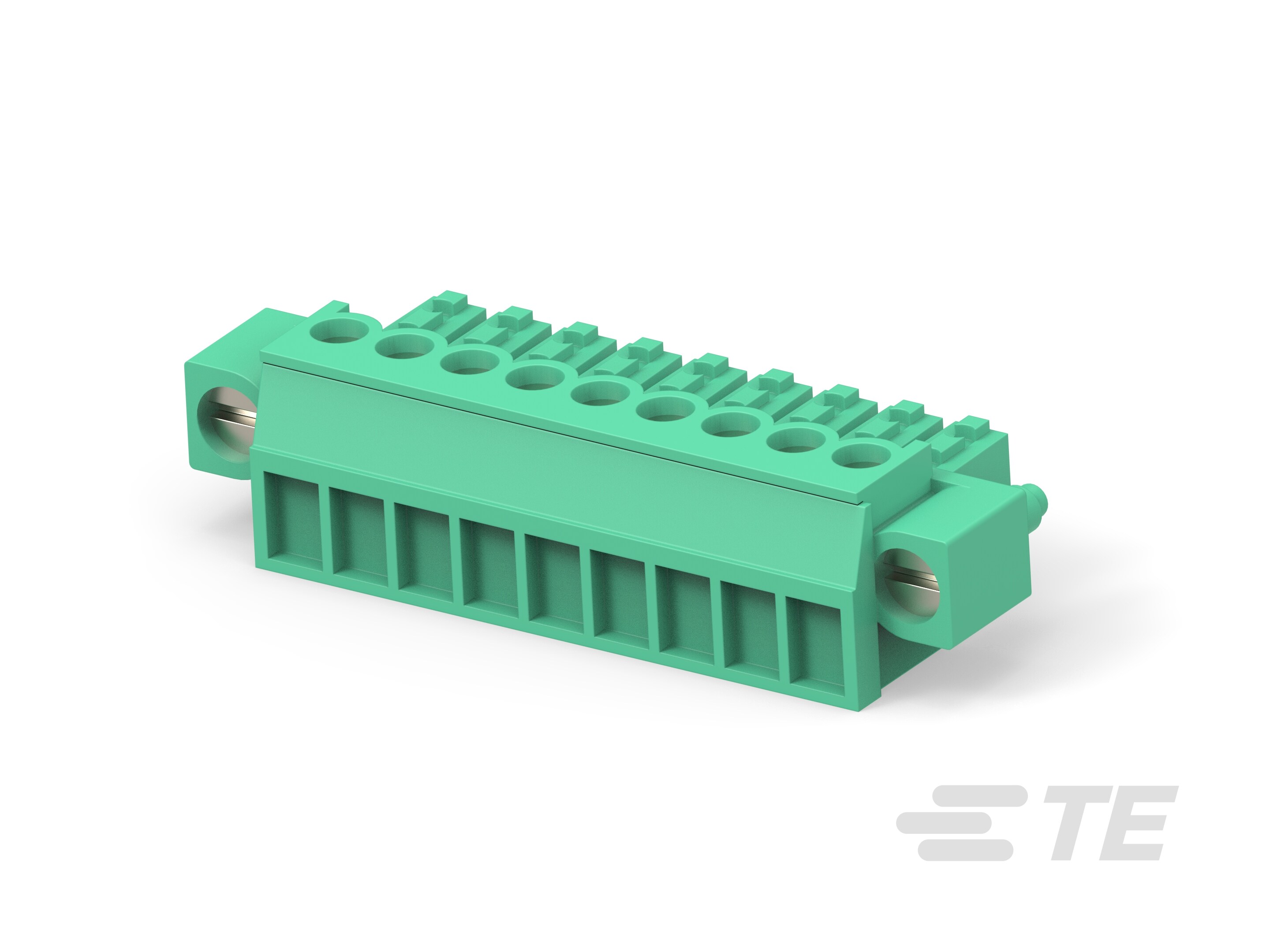

9 POS TERMI-BLOK PLUG C. VITI

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284511-9
Amperage:11 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:None
Screw Size:M2
Package Quantity:100
Contact Amperage:11 A
Number of Positions:9
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Threaded Flange:With
Screw Flange:With
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284511-9
SKU:AMP284511-9

Detailed Description

Easily connect power and signal wires with our industrial-grade Right Angle Plug Terminal Block. Designed for efficiency and durability, this connector features a green PA 6/6 housing and Phosphor Bronze contacts with Tin plating. With a pitch of 3.81mm, it accommodates wire sizes ranging from 14 to 30 AWG. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it ensures reliable performance in various environments. Equipped with M2 Nickel-plated Brass screws for secure connections, this connector is RoHS compliant, making it a safe and eco-friendly choice. Whether for industrial or commercial applications, this Terminal Block is a versatile solution for your wiring needs.
