284515-2

AMP284515-2
Heilind Number:AMP284515-2
Manufacturer:TE Connectivity
Manufacturer Number:284515-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

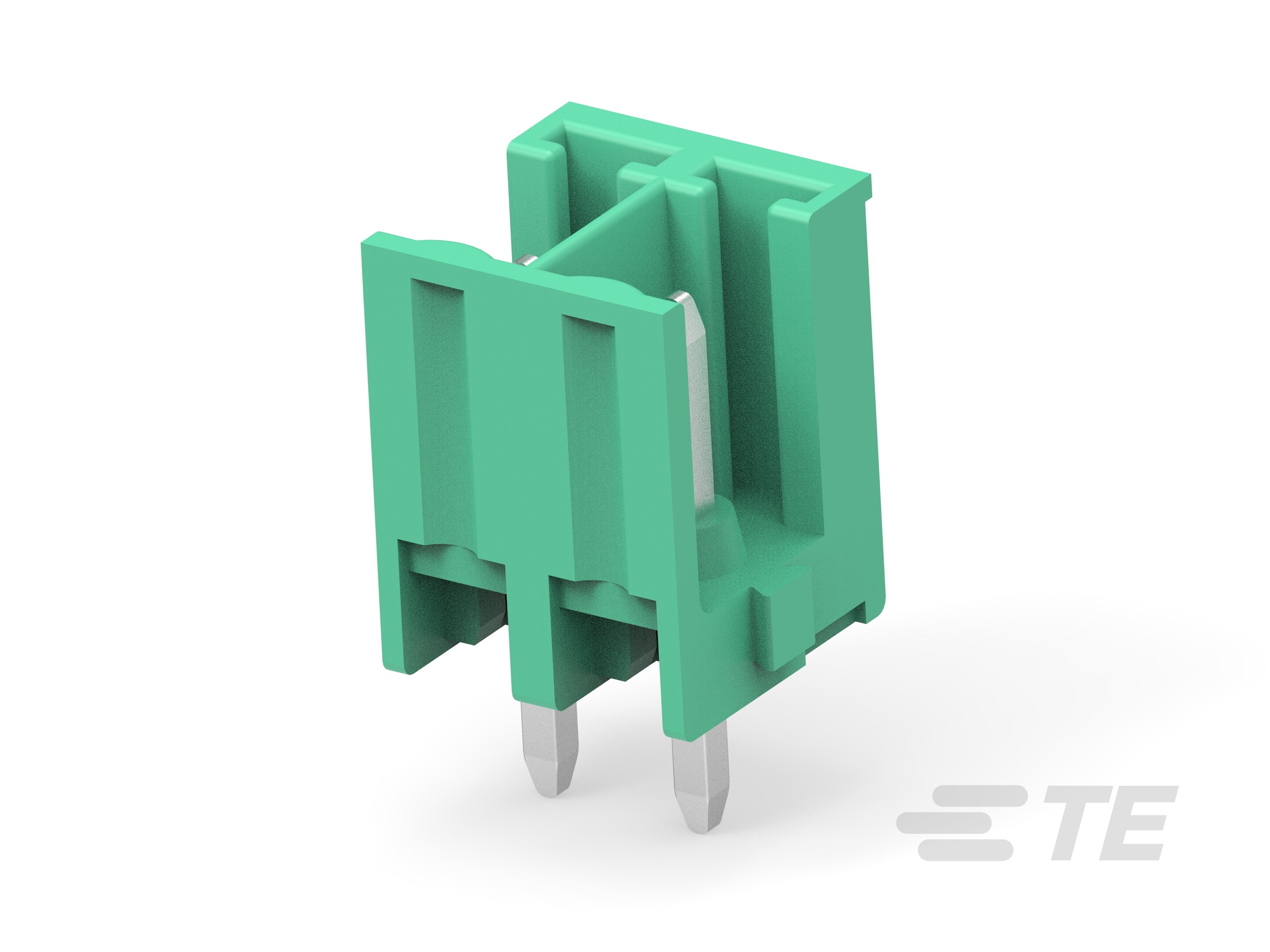

2P TERMI-BLOK HDR DIR MODULE

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284515-2
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:CuMg
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Contact Amperage:11 A
Number of Positions:2
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Connector System:Wire to Board
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Partially Shrouded
Interlock:With
Closed End:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284515-2
SKU:AMP284515-2

Detailed Description

Easily connect power and signal circuits with this 11 A terminal block, featuring a durable PA 6/6 housing in a sleek green color. With a pitch of 3.5 mm, it offers efficient board mount installation for up to 2 positions. Operating at temperatures ranging from -40 to 105°C, it is suitable for industrial applications. The tin-plated contact mating areas ensure reliable conductivity, while its wave solder capability up to 240°C simplifies assembly. RoHS compliant and designed for wire-to-board connections, this terminal block is a versatile solution for various electronic setups. With a partially shrouded header type and side stackable configuration, it offers ease of use and flexibility in installation.
