292303-3

Heilind Number:	AMP292303-3
Manufacturer:	TE Connectivity
Manufacturer Number:	292303-3
Datasheet:	Datasheet
ECAD Model:

Description:

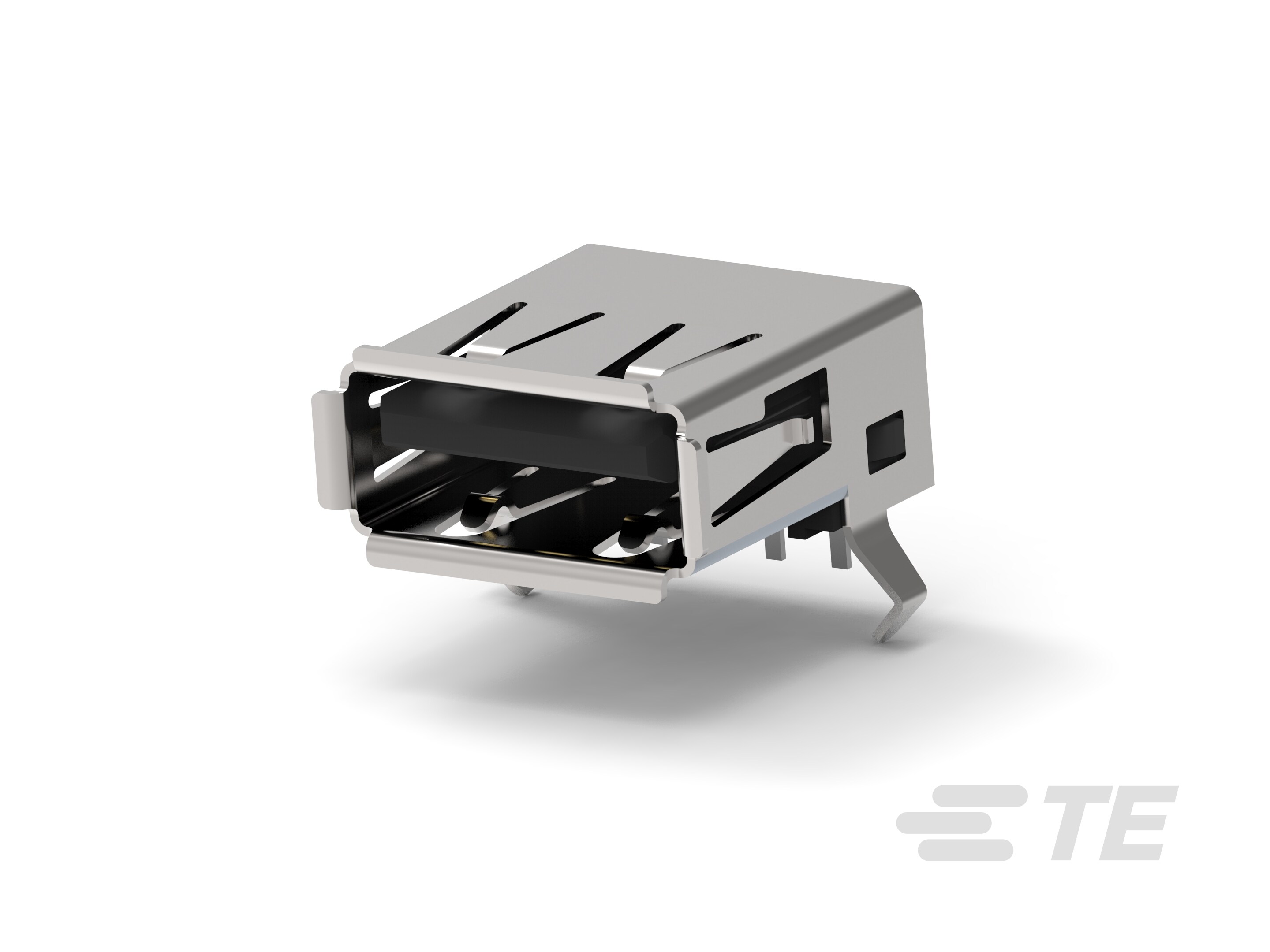

USB A R/A RCPT ASSY THRU HOLE, LEAD FREE

More >>

Specifications

Attribute	Value
Product Category:	IO Connectors USB Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 292303-3
Amperage:	1 A
Gender:	Receptacle
Housing Material:	Thermoplastic
Mount Type:	Board Mount
Termination Method:	Wave Solder
Maximum Operating Temperature:	85 °C
Body Orientation:	Right Angle
Pitch:	.078 in, .098 in, 2.5 mm, 2 mm
Shell Plating:	Tin
Number of Ports:	1
Orientation:	Right Angle
USB Type:	A
USB Size:	Standard
USB Version:	2.0
Mount Location:	Top
Contact Amperage:	1 A
Number of Positions:	4
Housing Color:	Natural
Termination Type:	Through Hole
Tail Length:	.112 in, 2.84 mm
Operating Temperature Range:	-55 - 85 °C, -67 - 185 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Gold or Gold Flash over Palladium Nickel
Contact Mating Area Plating Thickness:	29.92 µin, .76 µm
Mating Cycles:	1500
PCB Thickness (Recommended):	1.57 mm
PCB Retention Type:	Kinked Legs
Panel Mount Type:	Flange
Connector and Contact Terminate To:	Printed Circuit Board
Number of Mounting Legs:	2
Connector System:	Cable-to-Board
Connector Product Type:	Connector
LED Indicator:	Without
Shell Plating Finish:	Bright
Locating Posts:	Without
Maximum Soldering Temperature:	240 °C, 464 °F
Halogen Free:	No
Locking Feature:	With
PCB Connector Seating:	Flush
Standard:	USB 2.0
Material Flammability Standard:	UL 94V-0
Part Aliases:	292303-3
SKU:	AMP292303-3

Detailed Description

Enhance your connectivity with our USB A Right Angle Receptacle Assembly, designed for seamless integration into your electronic devices. This lead-free assembly boasts a standard USB Type A interface, perfect for power and signal applications. With a maximum operating temperature of 85°C, it ensures reliable performance even in demanding environments. Featuring a through-hole termination method and kinked legs for secure attachment to the PCB, installation is a breeze. The housing, made of UL 94V-0 rated thermoplastic in a natural color, guarantees durability and safety. Gold-plated contacts with a mating cycle of 1500 ensure optimal signal transmission over time. RoHS compliant and meeting industry standards, this USB connector is a dependable choice for your projects. With 30 units in a package, you have an ample supply for your production needs. Elevate your designs with this high-quality USB 2.0 connector.
