| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 3-1393210-4 |
| Amperage: | 20 A |
| Mount Type: | Printed Circuit Board |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Contact Plating: | Silver Cadmium Oxide (AgCdO) |
| Number of Poles: | 1 |
| Coil Resistance: | 324 Ω |
| Coil Current: | .056 A |
| Coil Voltage: | 18 VDC |
| Output Type: | AC |
| Maximum Output Voltage: | 240 V |
| Maximum Switching Voltage: | 277 VAC |
| Termination Type: | Printed Circuit Terminals |
| Contact Voltage: | 277 VAC |
| Operating Temperature Range: | -55 - 85 °C, -67 - 185 °F |
| Contact Arrangement: | 1 Form C (CO) |
| SKU: | AMP3-1393210-4 |
3-1393210-4
Specifications
Detailed Description

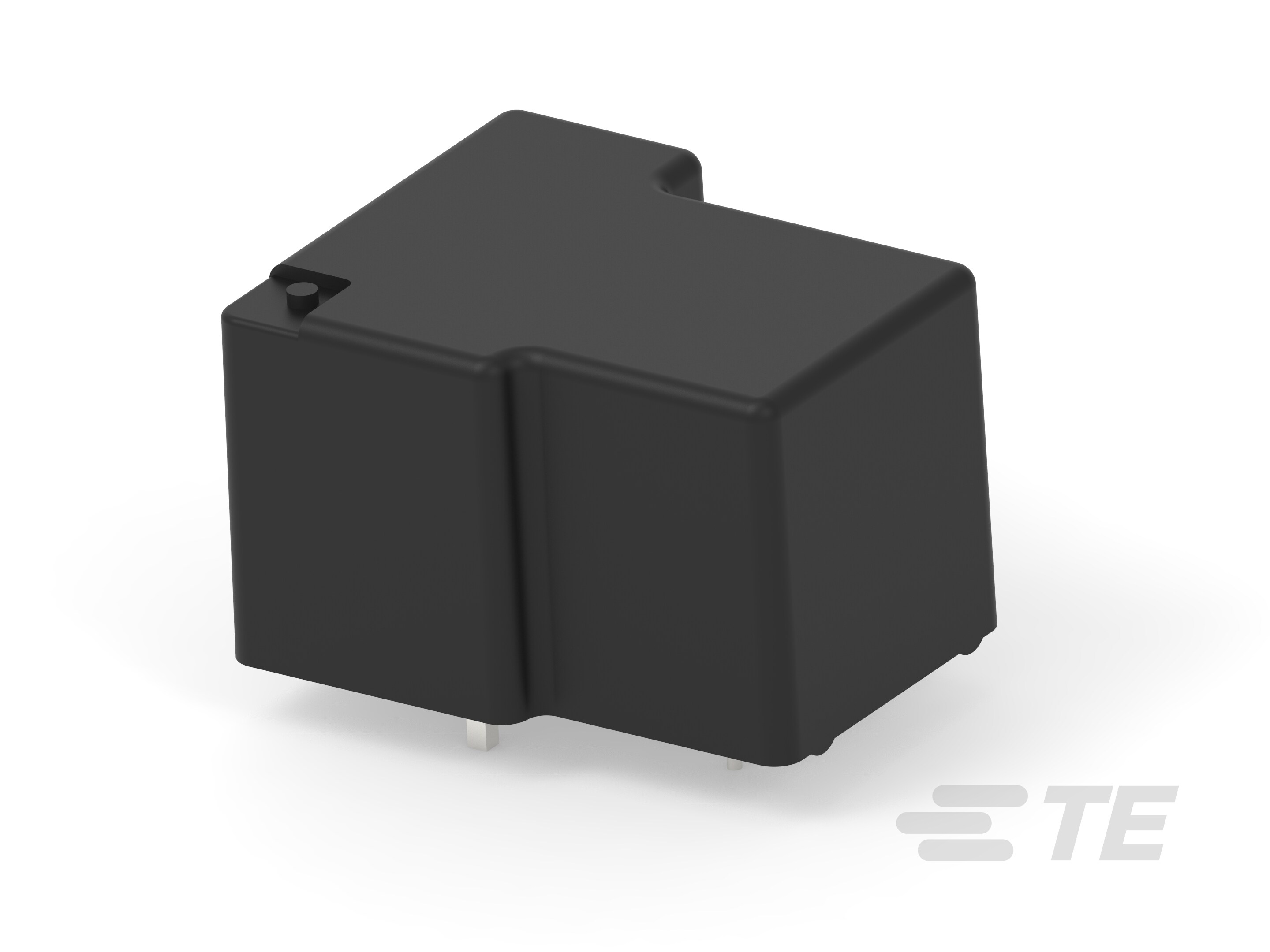

Enhance your circuit board with the T9AS5D12-18 Power Relay, a high-performance component designed for precision switching. With a contact rating of 20A at 277VAC, this relay offers reliable power control for various applications. Featuring Silver Cadmium Oxide (AgCdO) contacts, it ensures optimal conductivity and longevity. The 1 Form C (CO) contact arrangement allows for versatile functionality. Operating at temperatures ranging from -55°C to 85°C (-67°F to 185°F), it is suitable for use in diverse environments. RoHS compliant and meticulously crafted for quality, this relay guarantees efficiency and durability in power management systems. Elevate your projects with the T9AS5D12-18 Power Relay.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity T9AS5D12-12 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
