| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 3-1617076-2 |
| Mount Type: | Chassis Mount |
| Coil Resistance: | 280 Ω |
| Coil Voltage: | 18 VDC |
| Contact Configuration: | 4 Form C, 4PDT, 4 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 2 A |
| Input Voltage: | 18 VDC |
| Part Aliases: | M39016/53-021M |
| SKU: | AMP3-1617076-2 |

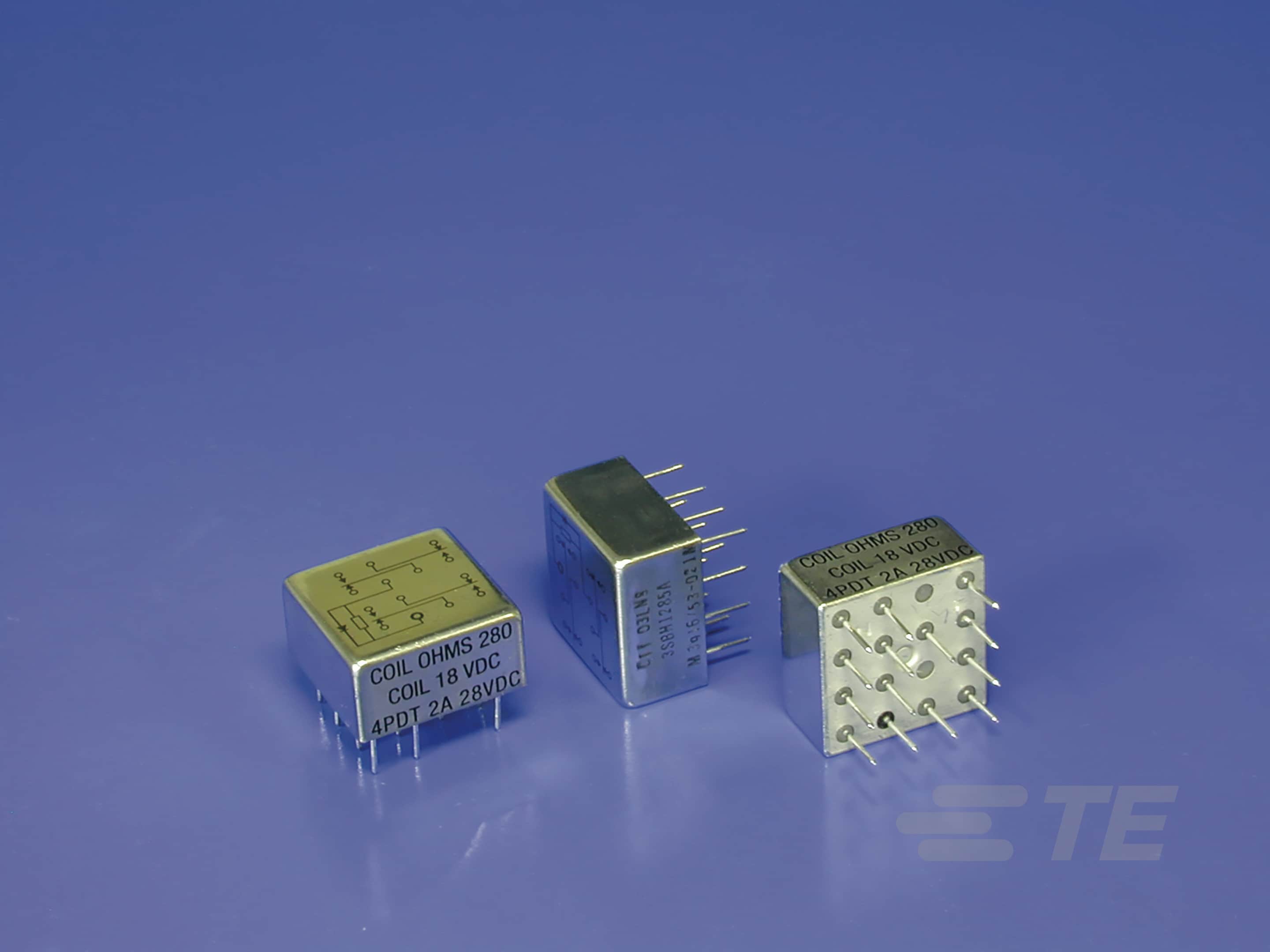

3-1617076-2
| Heilind Number: | AMP3-1617076-2 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 3-1617076-2 |
| ECAD Model: | |
Specifications
Detailed Description
Enhance your electronic circuitry with our Chassis Mount Signal Relay, featuring a robust 4 Form C, 4PDT contact configuration for versatile switching capabilities. With a coil resistance of 280 Ω and a coil voltage of 18 VDC, this relay ensures efficient performance in various applications. Its PC pin termination type allows for easy installation, while the maximum switching voltage of 28 VDC guarantees reliable operation. Rated for a contact current of 2 A, this relay is ideal for signal and communication systems. Non-compliant with RoHS regulations. Also known as M39016/53-021M, it is a must-have component for your electronic projects. Elevate your relay game with this high-quality component.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 3-1617076-2 |
| Other Names: | M39016/53-021M |
