| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 3-1617515-0 |
| Mount Type: | Panel Mount |
| Coil Resistance: | 140 Ω |
| Coil Voltage: | 9 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | Solder Hook Terminal(s) |
| Contact Current Rating: | 2 A |
| Input Voltage: | 9 VDC |
| Part Aliases: | M39016/13-101M |
| SKU: | AMP3-1617515-0 |
3-1617515-0
| Heilind Number: | AMP3-1617515-0 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 3-1617515-0 |
| ECAD Model: | |
Specifications
Detailed Description

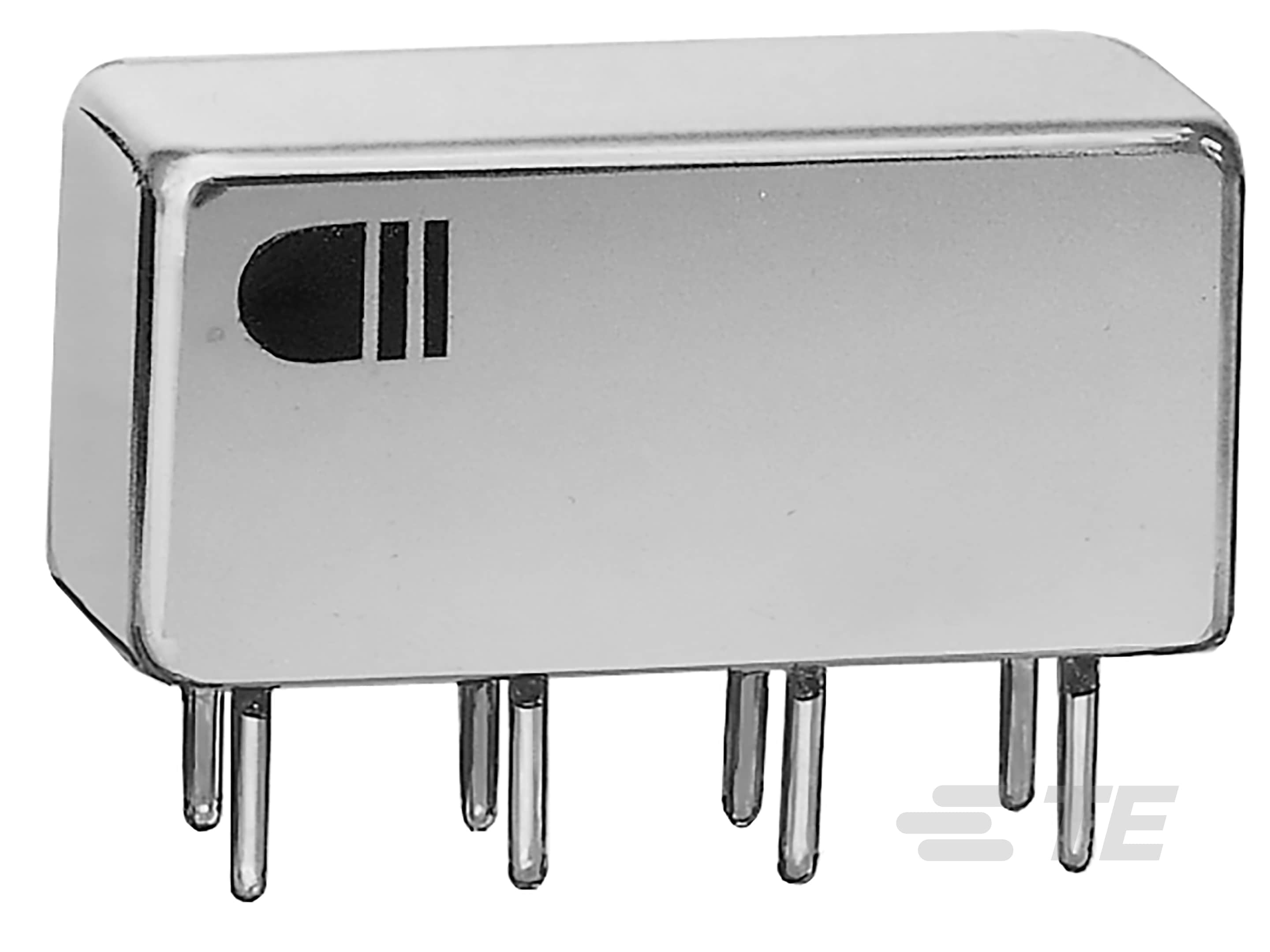

Enhance your control panel setup with this high-performance relay, designed for seamless integration through panel mounting. Boasting a coil resistance of 140 Ω and a coil voltage of 9 VDC, it ensures reliable operation in various applications. The 2 Form C contact configuration, featuring DPDT and 2 C/O switches, offers versatility for signal and communication relay needs. With a maximum switching voltage of 28 VDC and a contact current rating of 2 A, this relay guarantees efficient power management. Its solder hook terminals provide secure connectivity, while the non-RoHS compliance underscores its durable construction. Also known as M39016/13-101M, this product is a must-have in the realm of signal and communication relay solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 3-1617515-0 |
| Other Names: | M39016/13-101M |
