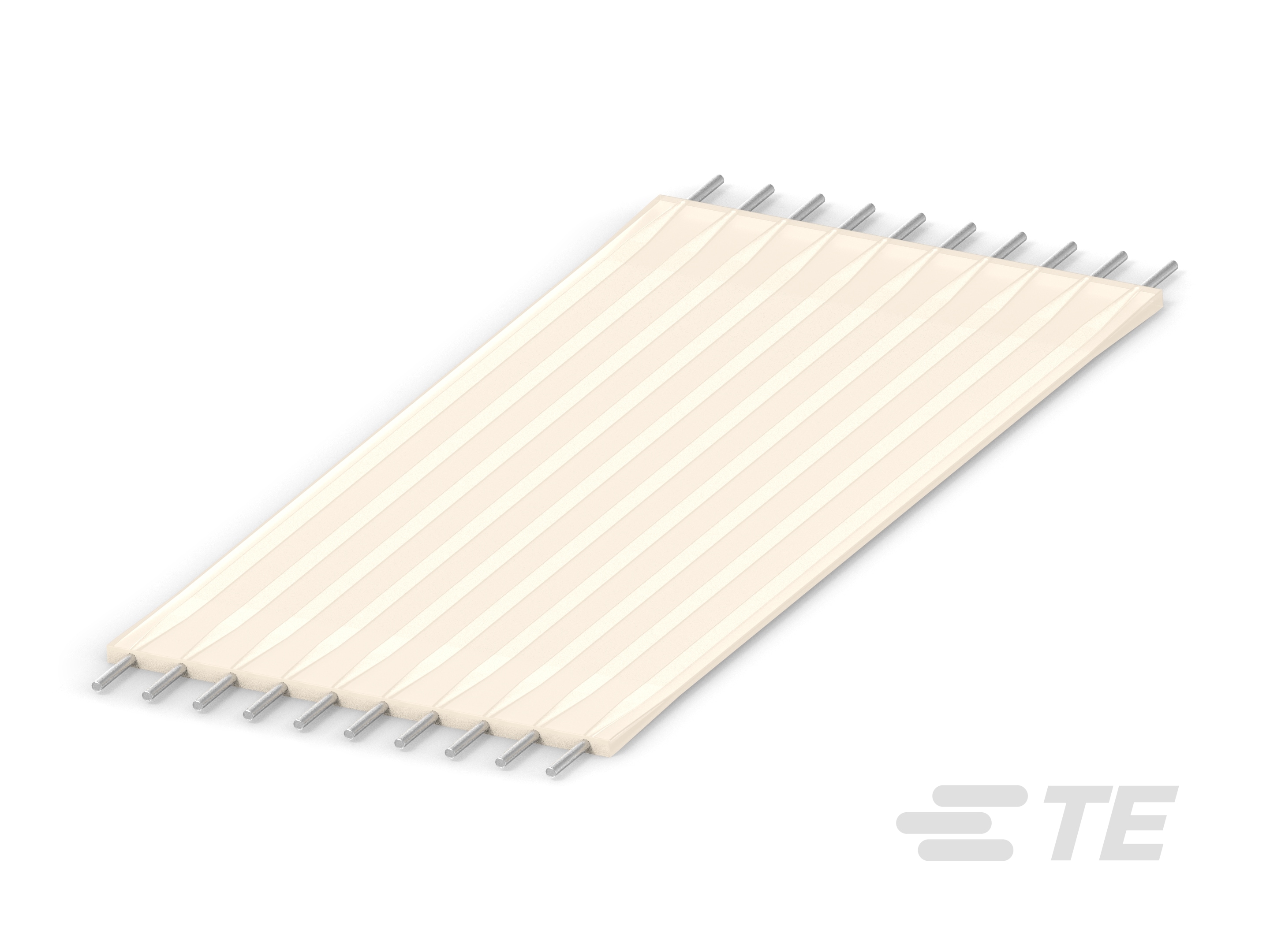

4-1474654-4

AMP4-1474654-4
Heilind Number:AMP4-1474654-4
Manufacturer:TE Connectivity
Manufacturer Number:4-1474654-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

FSN-21A-6

More >>

Specifications

AttributeValue
Product Category:
Wire, Cable & Assemblies
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 4-1474654-4
Number of Rows:1
Overall Length:25.4 mm
Pitch:.1 in, 2.54 mm
Voltage:300 V AC
Impedance:117 Ω
Number of Conductors:6
Characteristic Impedance:117 Ω
Contact Amperage:3 A
Number of Positions:6
GPL:176
Operating Temperature Range:-40 - 125 °C, -40 - 257 °F
GPL Description:Industrial
Product Code:E166
Wire Size:.204 mm², 24 AWG
ECCN:EAR99
Length:1 in, 25.4 mm
Flexible Strip Jumper Insulation Material:Nomex
PCB Jumper Shunt Assembly Type:Flat Flexible Strip Jumper
Compatible With Discrete Wire Type:Solid
Pin Arrangement Left:A
Pin Arrangement Right :A
Part Aliases:4-1474654-4 FSN-21A-6
SKU:AMP4-1474654-4

Detailed Description

Enhance your industrial connectivity with the FSN-21A-6 Flat Flexible Strip Jumper. This versatile cable features six conductors, each with a characteristic impedance of 117 Ω, ensuring reliable signal transmission. With a voltage rating of 300V AC and contact amperage of 3A, it meets stringent performance standards. The 24 AWG wire size and Nomex insulation guarantee durability in harsh environments, while the operating temperature range of -40 to 125°C (-40 to 257°F) makes it suitable for a wide range of applications. RoHS compliant and meticulously designed for compatibility with solid wire connections, this jumper is a essential component in your wire management setup.
