| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 5-1617350-4 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 1600 Ω |
| Coil Voltage: | 18 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/7-005L |
| SKU: | AMP5-1617350-4 |
5-1617350-4
| Heilind Number: | AMP5-1617350-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 5-1617350-4 |
| ECAD Model: | |
Specifications
Detailed Description

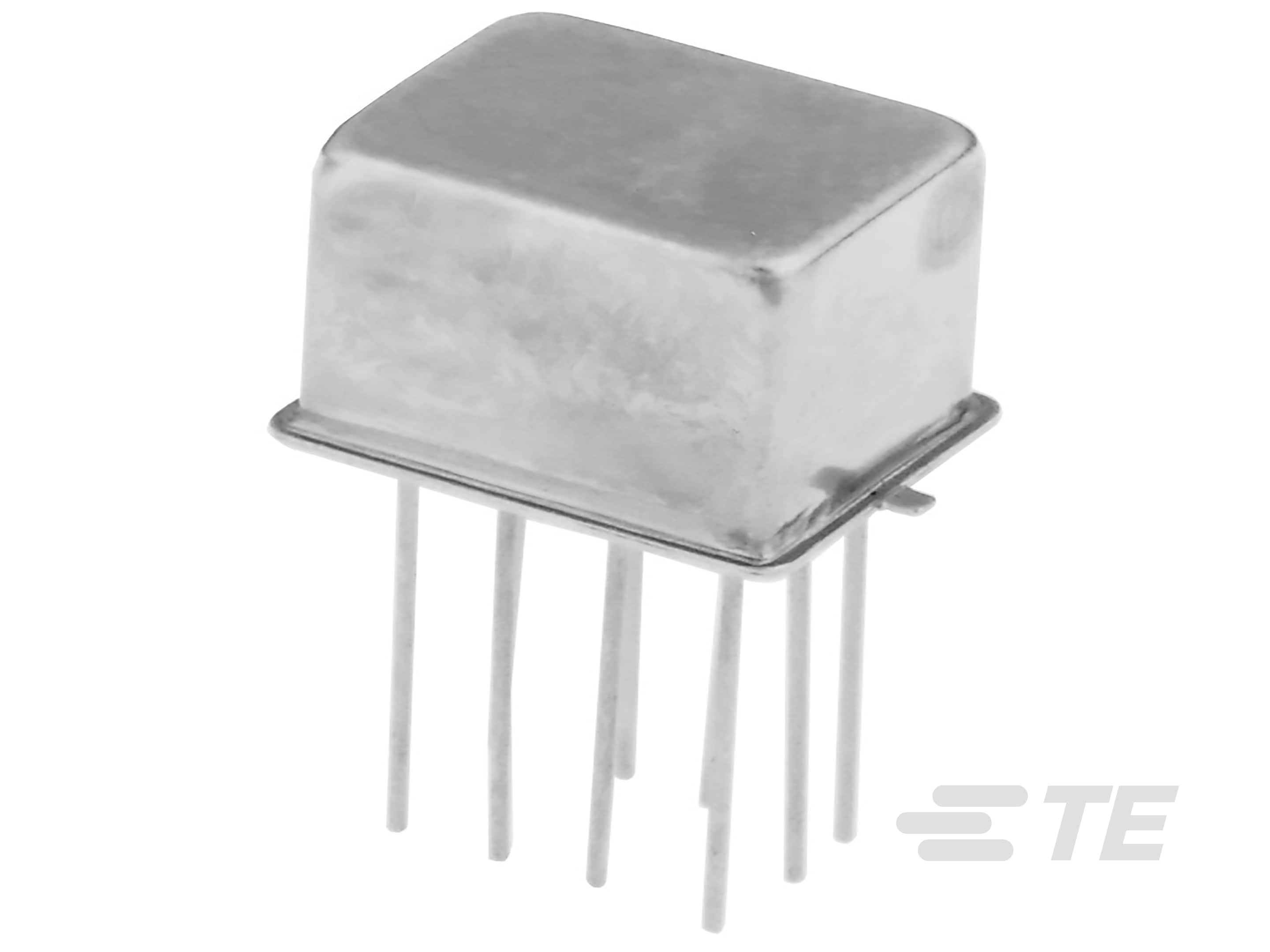

The JMGST-18L Relay, also known as M28776/7-005L, is a high-performance signal and communication relay designed for printed circuit board mounting. Featuring a coil resistance of 1600Ω and a coil voltage of 18VDC, this relay offers reliable operation in various electronic applications. With a contact configuration of 2 Form C (DPDT, 2 C/O) and a contact current rating of 1A, it ensures efficient switching capabilities. RoHS compliant, it meets international standards for environmental responsibility. The termination type of PC Pin(s) makes installation easy and secure. With a maximum switching voltage of 28VDC, this relay is suitable for a wide range of industrial and commercial uses. Trust the JMGST-18L Relay for dependable performance in your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 5-1617350-4 |
| Other Names: | M28776/7-005L |
