5-2301995-1

AMP5-2301995-1
Heilind Number:AMP5-2301995-1
Manufacturer:TE Connectivity
Manufacturer Number:5-2301995-1
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

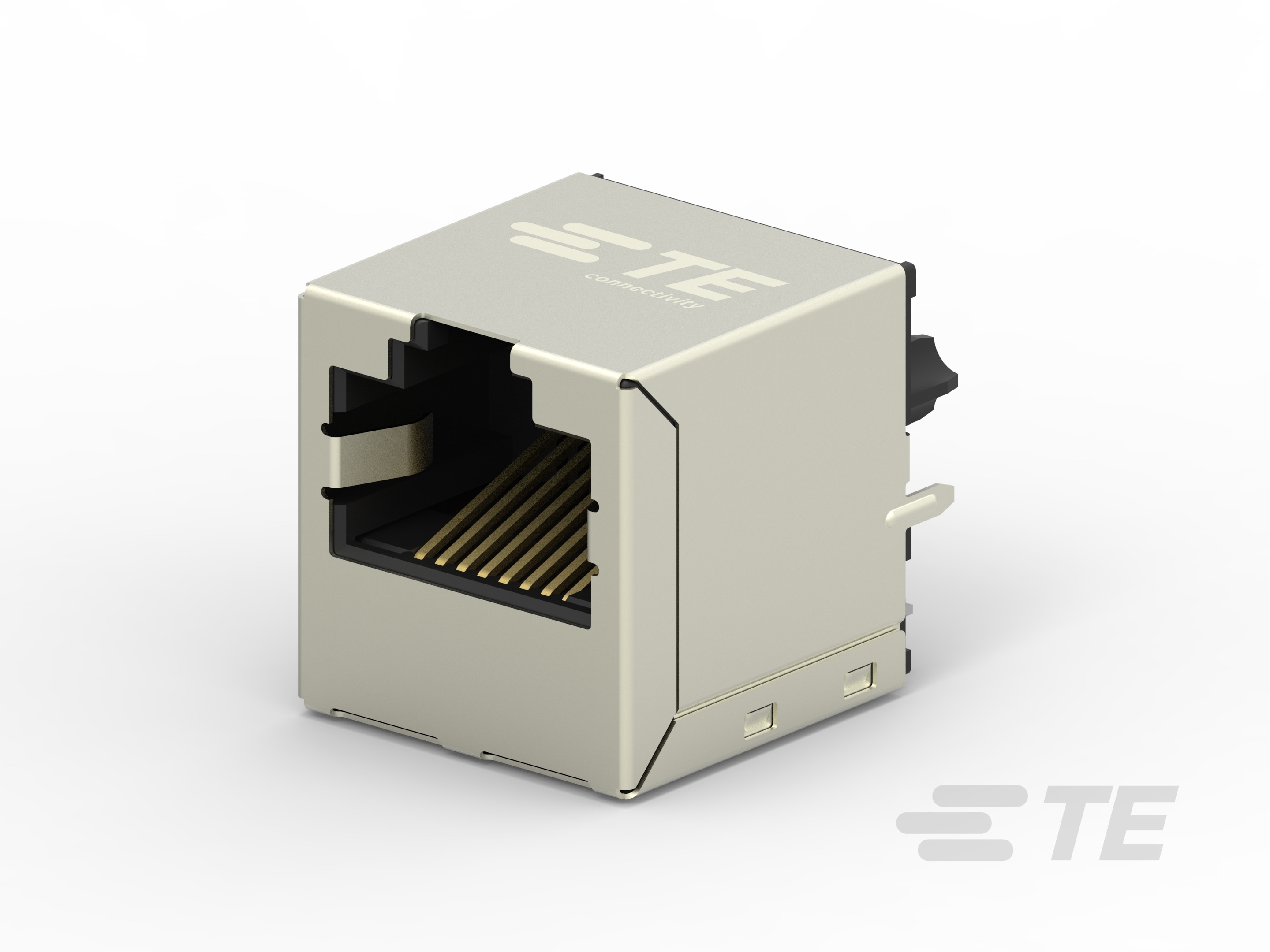

RJ45 JACK INT.MAG. 1GB 1X1 VERT.

More >>

Specifications

AttributeValue
Product Category:
RJ Connectors & Components RJ Jacks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 5-2301995-1
Series:Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:LCP (Liquid Crystal Polymer)
Termination Method:Through Hole - Solder
Contact Material:Copper Alloy
USOC Codes:RJ45 with Integrated Magnetics
Insulation Material:LCP
LAN Category:Cat 5e
Keying:No
Package Quantity:50
Number of Positions:8
Data Rate:1000 Mb/s
Housing Color:Black
Mount Orientation:Vertical
Latch Orientation:Standard - Latch Down
GPL:Z16
LED Color (Bottom Right):None
LED Color (Bottom Left):None
LED Color (Top Left):None
LED Color (Top Right):None
PCB Ground Tab Location:.153 in, 3.89 mm
Profile:Standard
Shield Material:Brass
Shield Plating Material:Nickel
Shield Plating Finish:Matte
Connector Contact Density:Standard
Number of Loaded Positions:8
Mating Entry Location:Top
Number of PCB Ground Tabs:2
Port Configuration:Single Port
Port Matrix Configuration:1 x 1
Status Indicator:None
Packaging:Tray
Operating Temperature Range:,
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:30 µin, .76 µm
Shielded:Yes
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Tin
PCB Termination Area Plating Finish:Matte
Connector Height:16.9 mm, .665 in
PCB Retention Type:Boardlock
Boardlock Material:LCP
Shield Panel Ground Type:Shield has bottom panel grounds.
Sealable:No
Grounding Options:PCB Ground
Housing Material Temperature:260
Connector Type:Jack
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K842
Modular Product Type:RJ Type Jacks & Plugs
Material Flammability Standard:UL 94V-0
SKU:AMP5-2301995-1

Detailed Description

Enhance industrial network connectivity with our RJ45 Jack, featuring integrated magnetics for efficient data transfer at 1GB speeds. Designed for Cat 5e networks, this vertical mount connector ensures reliable performance in demanding environments. With a rugged LCP housing and UL 94V-0 flammability rating, it guarantees durability and safety. The copper alloy contacts and gold plating offer optimal signal conductivity, while the brass shield provides electromagnetic interference protection. Ideal for single-port configurations, this tray-packaged connector is RoHS compliant and operates within a wide temperature range. Elevate your connectivity solutions with our high-quality RJ45 Jack.
