5-2301995-4

AMP5-2301995-4
Heilind Number:AMP5-2301995-4
Manufacturer:TE Connectivity
Manufacturer Number:5-2301995-4
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

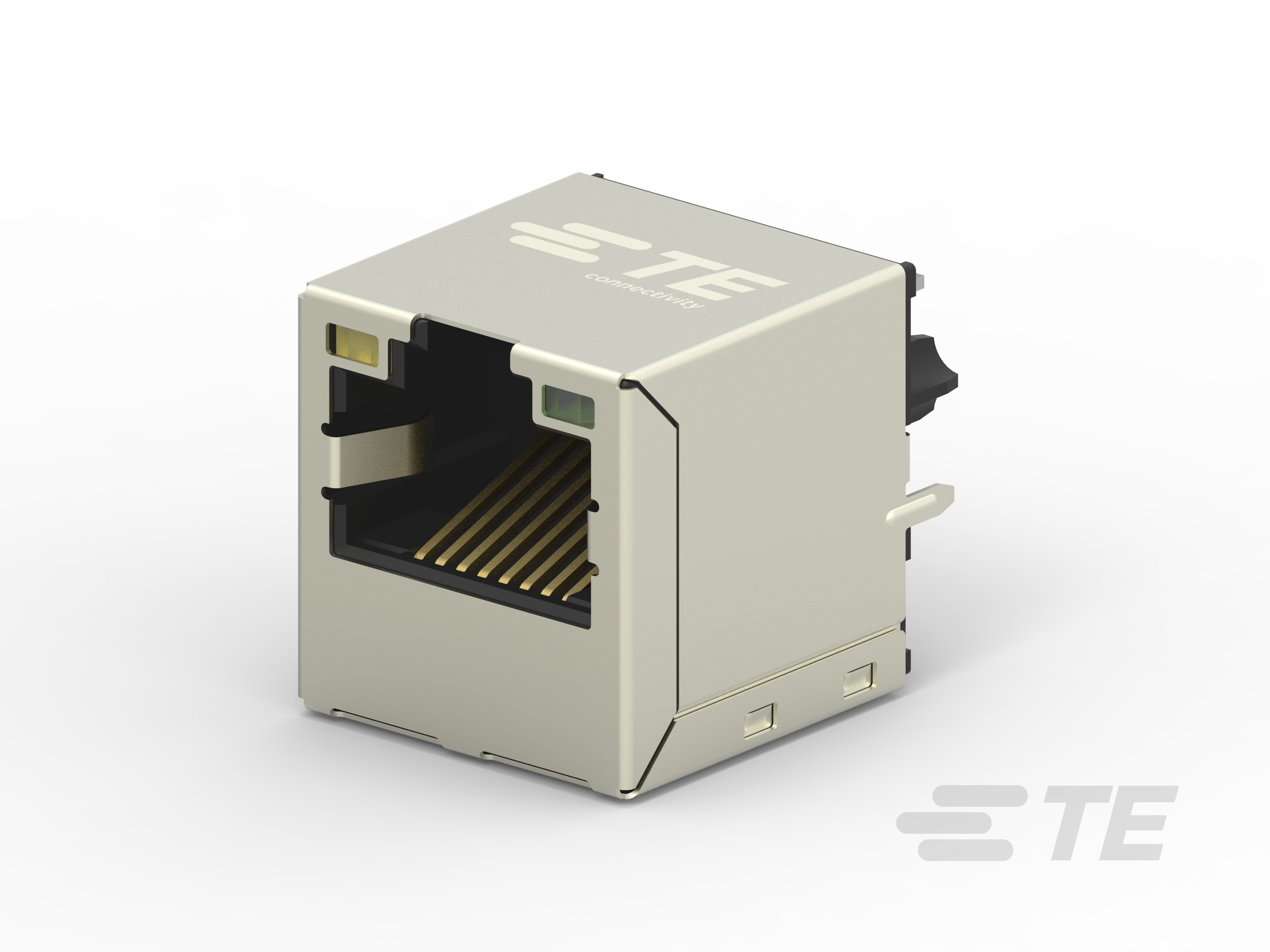

RJ45 JACK INT.MAG. 1GB LED 1X1 VERT.

More >>

Specifications

AttributeValue
Product Category:
RJ Connectors & Components RJ Jacks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 5-2301995-4
Series:Industrial RJ45,Industrial RJ45 Connector,Industrial RJ45 IP20,Industrial RJ45 Mag Jack
Housing Material:LCP (Liquid Crystal Polymer)
Termination Method:Through Hole - Solder
Contact Material:Copper Alloy
USOC Codes:RJ45 with Integrated Magnetics
Insulation Material:LCP
LAN Category:Cat 5e
Keying:No
Number of Positions:8
Data Rate:1000 Mb/s
Housing Color:Black
Mount Orientation:Vertical
Latch Orientation:Standard - Latch Down
LED Color (Bottom Right):Green/Yellow
LED Color (Bottom Left):Green/Yellow
LED Color (Top Left):None
LED Color (Top Right):None
PCB Ground Tab Location:.153 in, 3.89 mm
Profile:Standard
Shield Material:Brass
Shield Plating Material:Nickel
Shield Plating Finish:Matte
Connector Contact Density:Standard
Number of Loaded Positions:8
Mating Entry Location:Top
Number of PCB Ground Tabs:2
Port Configuration:Single Port
Port Matrix Configuration:1 x 1
Status Indicator:LED
Contact Mating Area Plating:Gold over Nickel
Contact Mating Area Plating Thickness:30 µin, .76 µm
Shielded:Yes
Contact Underplating Material:Nickel
PCB Contact Termination Area Plating:Tin
PCB Termination Area Plating Finish:Matte
Connector Height:16.9 mm, .665 in
PCB Retention Type:Boardlock
Boardlock Material:LCP
Shield Panel Ground Type:Shield has bottom panel grounds.
Sealable:No
Grounding Options:PCB Ground
Housing Material Temperature:260
Connector Type:Jack
Connector and Contact Terminate To:Printed Circuit Board
Modular Product Type:RJ Type Jacks & Plugs
Material Flammability Standard:UL 94V-0
SKU:AMP5-2301995-4

Detailed Description

Enhance your industrial network connections with our RJ45 Jack with Integrated Magnetics. Designed for high-speed data transmission, this 1GB LED 1x1 connector features a durable LCP housing and copper alloy contacts for reliable performance. With Cat 5e compatibility and UL 94V-0 flammability standard, it ensures quality and safety. The vertical mount orientation and standard latch down make it easy to install, while the green/yellow LED indicators provide visual status confirmation. Ideal for single-port configurations, this tray-packaged connector is RoHS-compliant and operates efficiently in a wide temperature range. Upgrade your network infrastructure with this high-quality, shielded RJ45 Jack.
