| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 6-1617794-0 |
| Amperage: | 10 A at 28 VDC, 115 VAC |
| Mount Type: | Raised Vertical Flange Mount |
| Operation Type: | Delay on Release |
| Repeatability: | ±10% |
| Termination Type: | Solder Pin Terminal |
| Status Indicator: | None |
| Enclosure: | Hermetic Sealed Metallic |
| Dimensions: | 1.015 x 1.015 x 1 in, 25.79 x 25.79 x 25.4 mm |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | .1 seconds |
| Input Voltage: | 28 VDC |
| Control Type: | Fixed |
| SKU: | AMP6-1617794-0 |

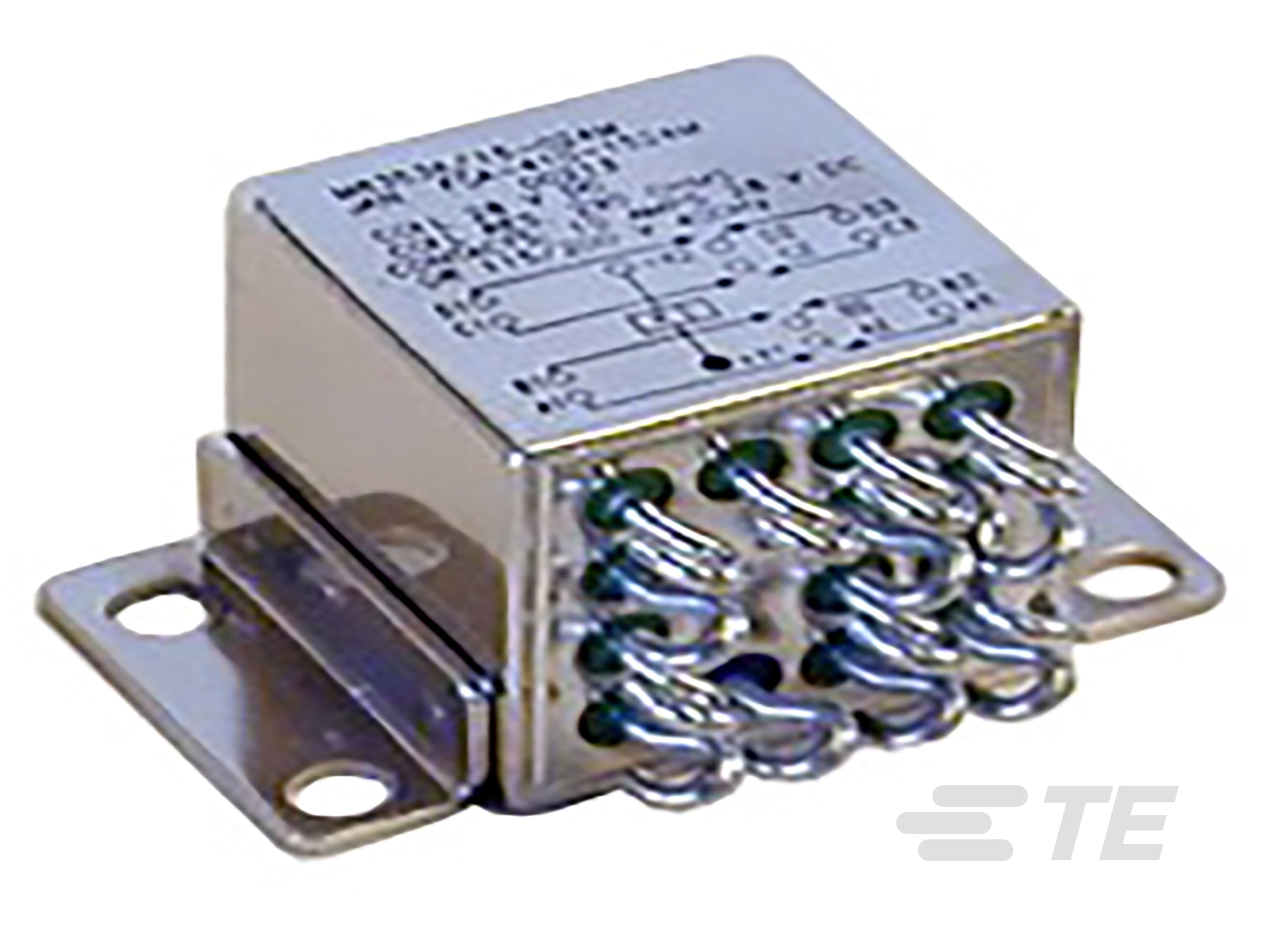

6-1617794-0
| Heilind Number: | AMP6-1617794-0 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 6-1617794-0 |
| ECAD Model: | |
Specifications
Detailed Description
Enhance your electronic systems with the TD229-1000P=TDFR Time Delay Relay, featuring a delay on release operation type for precise control. This relay offers a reliable 10 A capacity at 28 VDC and 115 VAC, with a ±10% repeatability for consistent performance. Its compact and durable Hermetic Sealed Metallic enclosure, along with Raised Vertical Flange Mounting, ensures secure installation in various applications. Boasting a 2 Form C DPDT contact arrangement, it delivers versatile switching capabilities. With a fixed delay time of .1 seconds, it provides essential timing functions. Designed for longevity, this relay is a valuable component for industrial and electronic setups.
