| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 9-1617784-9 |
| Amperage: | 5 A |
| Mount Type: | Raised Vertical Flange Mount |
| Contact Material: | Silver Cadmium Oxide with Gold Plating |
| Coil Resistance: | 500 Ω |
| Coil Voltage: | 28 VDC |
| Maximum Switching Voltage: | 115/200 VAC (400 Hz) |
| Operating Temperature Range: | -70 - 125 °C |
| Terminal Configuration: | Socket Pin(s) |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Part Aliases: | M83536/1-024L |
| SKU: | AMP9-1617784-9 |
9-1617784-9
| Heilind Number: | AMP9-1617784-9 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 9-1617784-9 |
| ECAD Model: | |
Specifications
Detailed Description

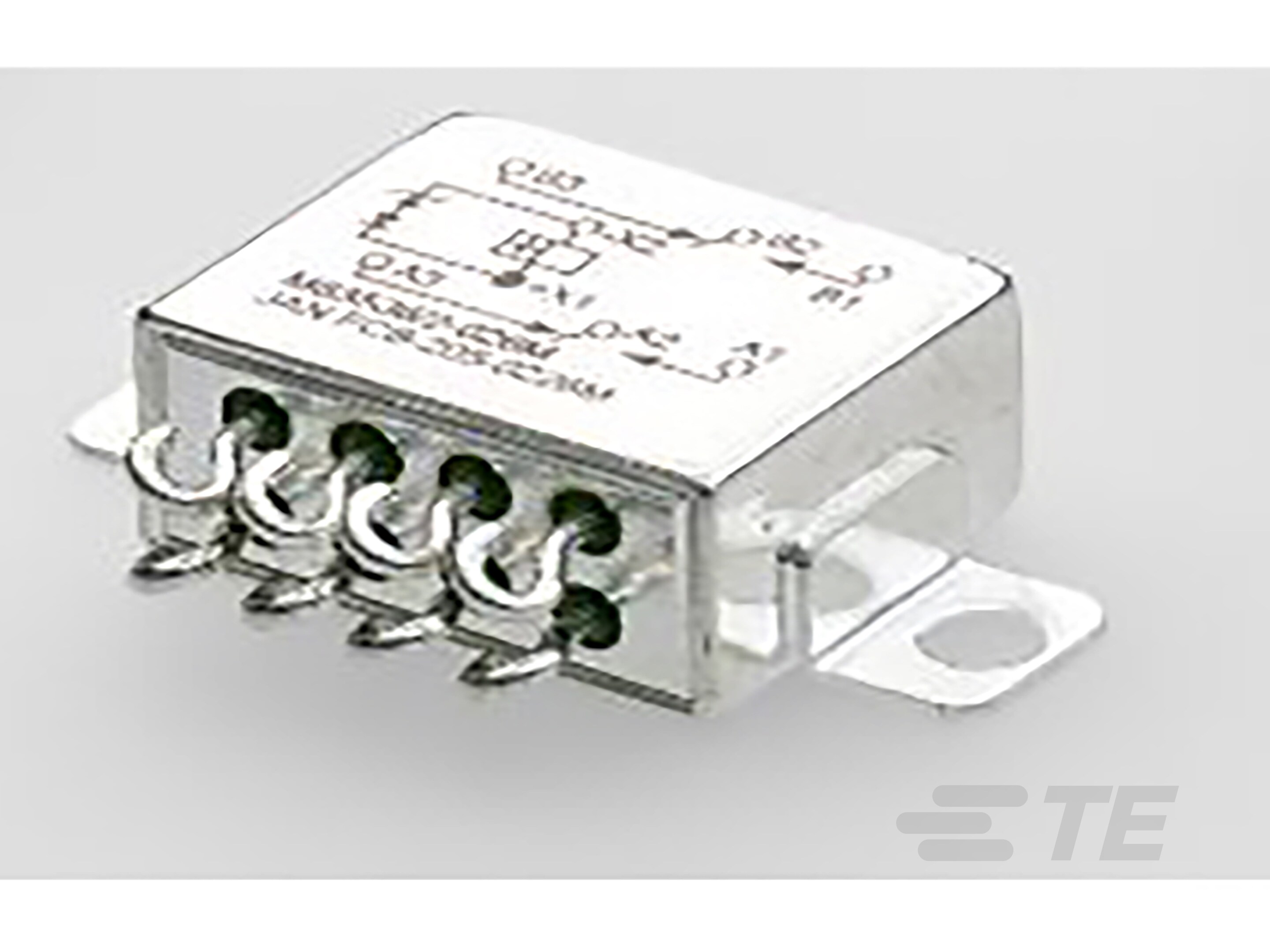

Enhance your electrical systems with the FCB-205-0124L=M83536/1-024L Power Relay. Designed for reliable performance, this relay features a Raised Vertical Flange Mount for easy installation. With a contact material of Silver Cadmium Oxide with Gold Plating, it ensures efficient conductivity. Operating at an amperage of 5A and a coil resistance of 500Ω, it's suitable for various applications. The coil voltage of 28VDC and maximum switching voltage of 115/200VAC (400Hz) provide versatility in usage. Its contact arrangement of 2 Form C, DPDT, 2 C/O allows for flexible control. Built to withstand harsh environments, it has an operating temperature range of -70 to 125°C. With terminal configuration as Socket Pin(s), this relay guarantees secure connectivity. Explore its capabilities in enhancing power relay systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 9-1617784-9 |
| Other Names: | M83536/1-024L |
