L000434-05

AMPL000434_05
Heilind Number:AMPL000434-05
Manufacturer:TE Connectivity
Manufacturer Number:L000434-05
Datasheet:Manual/User Guide
ECAD Model:
3D Model

Description:

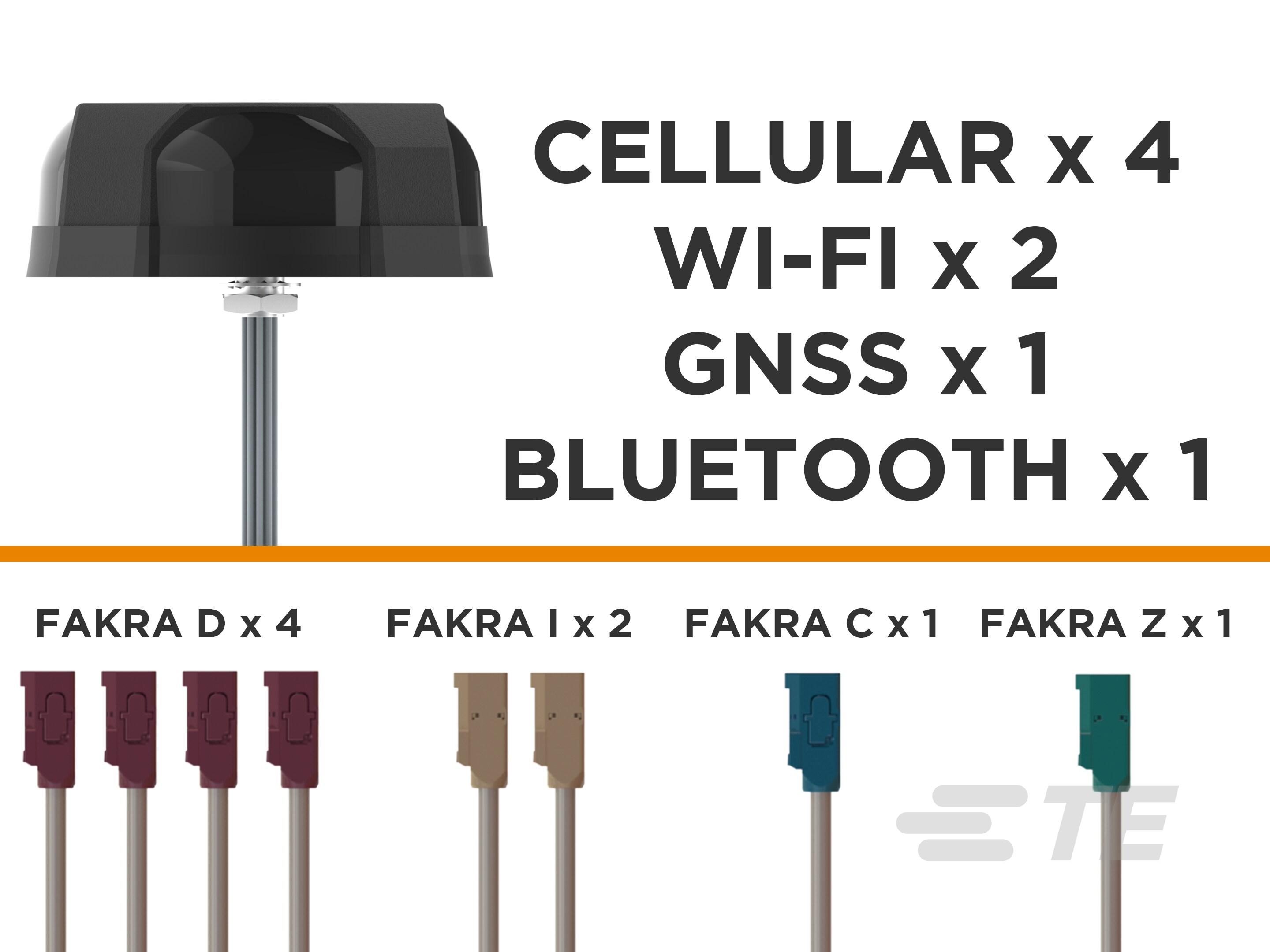

Dome/Puck Antenna, Multi Band, 5G / Wi-Fi / Vehicular, External Mount, Stud, Fakra, Omnidirectional, Multiple Ports, Gain > 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity L000434-05
Gain:28 dB, 7.9 dB, 8 dB, 9 dB
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, GPS, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Band Type:Multi Band
Antenna Type:Dome
Directionality:Omnidirectional
Mounting Style:Stud
Frequency Range:1164 - 1610 MHz, 2400 - 2500 MHz, 2400 - 7125 MHz, 617 - 7125 MHz
Center Frequency:1387 MHz, 2450 MHz, 3871 MHz, 4762.5 MHz
Antenna Termination Type:Fakra
Application:5G, Cellular, GNSS, LTE, Vehicular, Wi-Fi
VSWR:2:1
Impedance:50 Ω
Polarization:Linear
IP Rating:IP67
SKU:AMPL000434-05

Detailed Description

Enhance your connectivity with our advanced Dome/Puck Antenna, designed for seamless integration in various applications. Boasting a powerful gain of up to 28 dB, this omnidirectional antenna ensures reliable signal reception across multiple bands, including 5G, Wi-Fi, and Vehicular networks. With a rugged external mount and IP67 rating, it's built to withstand harsh environments, making it ideal for outdoor use. Featuring multiple ports and Fakra antenna termination, it offers versatile connectivity options for Cellular, GNSS, and LTE technologies. Whether you're in need of high-speed data transfer or precise location tracking, this antenna delivers exceptional performance, with linear polarization and low VSWR ensuring optimal signal quality. Elevate your wireless experience with our cutting-edge Dome/Puck Antenna.
