L000434-06

AMPL000434_06
Heilind Number:AMPL000434-06
Manufacturer:TE Connectivity
Manufacturer Number:L000434-06
Datasheet:Manual/User Guide
ECAD Model:
3D Model

Description:

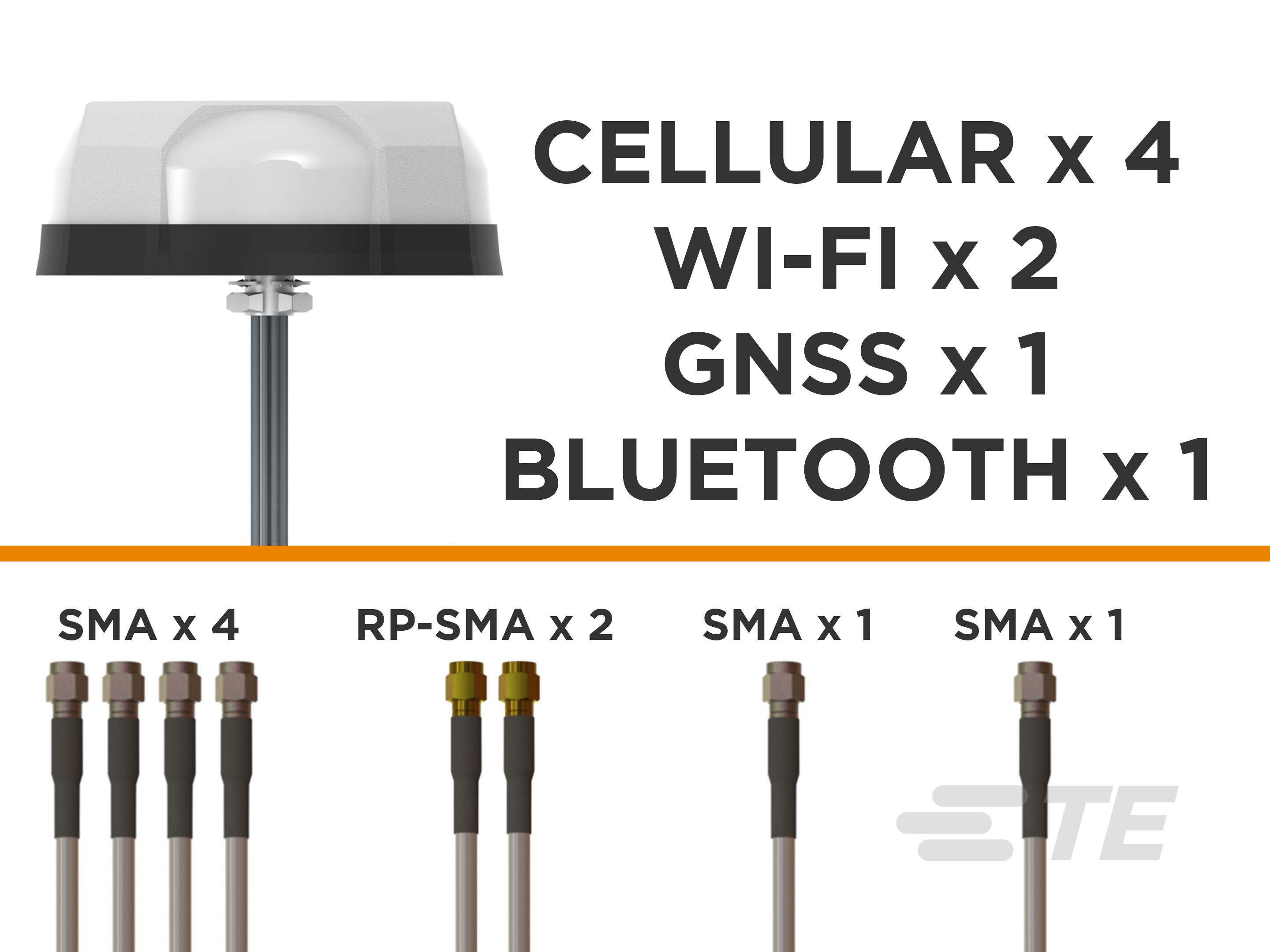

Dome/Puck Antenna, Multi Band, Wi-Fi / Vehicular / 5G, External Mount, Stud, SMA / RP-SMA, Omnidirectional, Multiple Ports, Gain > 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity L000434-06
Gain:28 dB, 7.9 dB, 8 dB, 9 dB
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, GPS, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Band Type:Multi Band
Antenna Type:Dome
Directionality:Omnidirectional
Mounting Style:Stud
Frequency Range:1164 - 1610 MHz, 2400 - 2500 MHz, 2400 - 7125 MHz, 617 - 7125 MHz
Center Frequency:1387 MHz, 2450 MHz, 3871 MHz, 4762.5 MHz
Antenna Termination Type:RP-SMA, SMA
Application:5G, Cellular, GNSS, LTE, Vehicular, Wi-Fi
VSWR:2:1
Impedance:50 Ω
Polarization:Linear
IP Rating:IP67
SKU:AMPL000434-06

Detailed Description

Enhance your connectivity with this high-performance Dome/Puck Antenna, designed for seamless integration in various applications. Operating across multiple bands including Wi-Fi, Vehicular, and 5G, it ensures reliable signal reception. Featuring an external mount and stud installation, it offers versatility in setup. The omnidirectional design with multiple ports guarantees comprehensive coverage. With a gain of over 6 dBi and linear polarization, it optimizes signal strength and quality. Suitable for outdoor use, it boasts an IP67 rating for durability. Compatible with SMA and RP-SMA terminations, it accommodates diverse connectivity needs. Ideal for 5G, Cellular, GNSS, LTE, and Wi-Fi applications, this antenna is a must-have for robust wireless communication.
