| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol RF |
| Manufacturer Part Number: | Amphenol RF 172117-30 |
| Connector Type: | N-Type |
| Gender: | Jack |
| Termination Method: | Round Post |
| Contact Material: | Phosphor Bronze |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | Not Rated |
| Orientation: | Straight |
| Impedance: | 50 Ω |
| Operating Frequency: | 11 Max GHz |
| Body Material: | Brass |
| Panel Mount Type: | 4-Hole Flange |
| Body Finish: | White Bronze |
| Coupling Type: | Threaded |
| SKU: | AMR172117-30 |
172117-30
| Heilind Number: | AMR172117-30 |
| Manufacturer: | Amphenol RF |
| Manufacturer Number: | 172117-30 |
| ECAD Model: | |
Specifications
Detailed Description

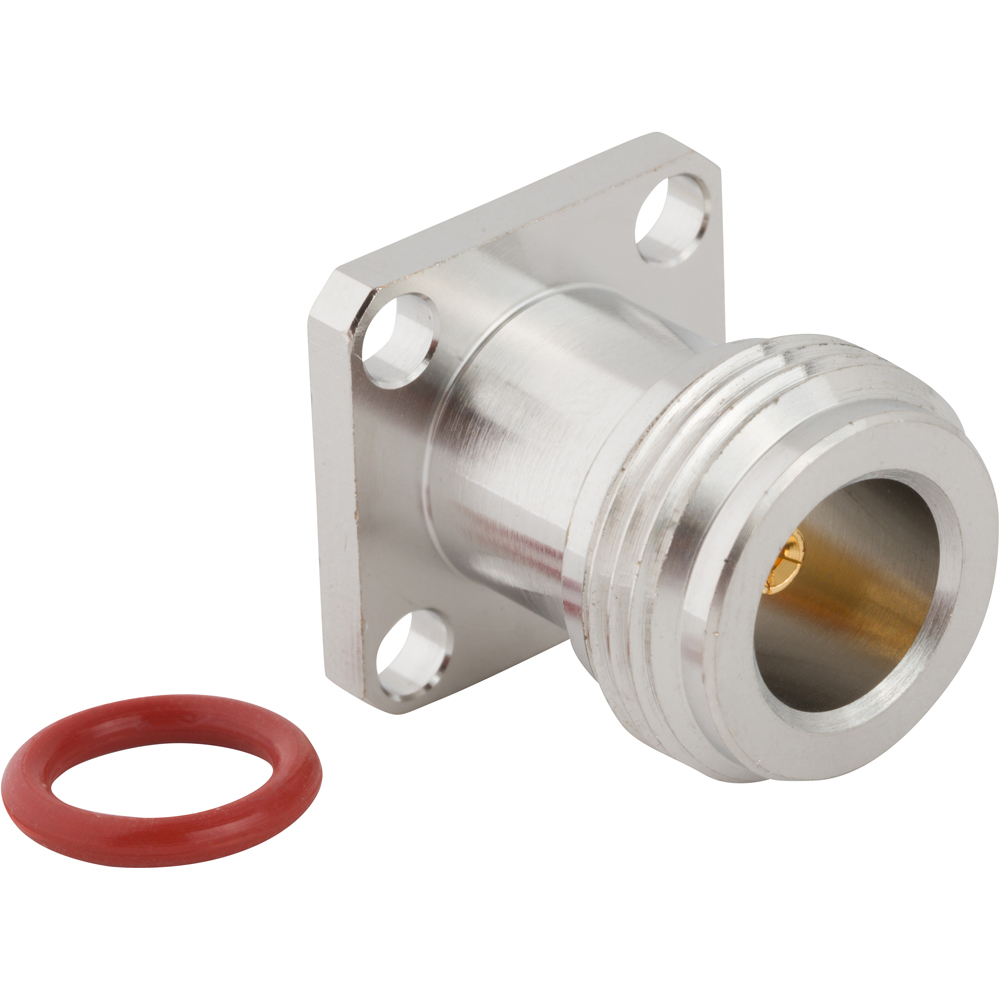

Enhance your RF connectivity with our N-Type Panel Mount Jack. Designed for seamless integration, this connector features a 4-Hole Flange for easy installation. Constructed with durable Brass and finished with White Bronze, it ensures both longevity and high performance. The straight orientation and threaded coupling type offer a secure and reliable connection, while the 50 Ohm impedance and maximum operating frequency of 11 GHz guarantee smooth signal transmission. With RoHS compliance and a temperature range from -40°C to 85°C, this connector is ideal for a variety of applications. Upgrade your setup with this essential RF component.
