| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol SV Microwave |
| Manufacturer Part Number: | Amphenol SV Microwave 1285-6004 |
| Connector Type: | SMP |
| Gender: | Plug |
| Mount Type: | PCB |
| Termination Method: | PCB - End Launch |
| Orientation: | Straight |
| Impedance: | 50 Ω |
| Operating Frequency: | 40 GHz |
| Body Material: | Stainless Steel |
| SKU: | ASV1285-6004 |

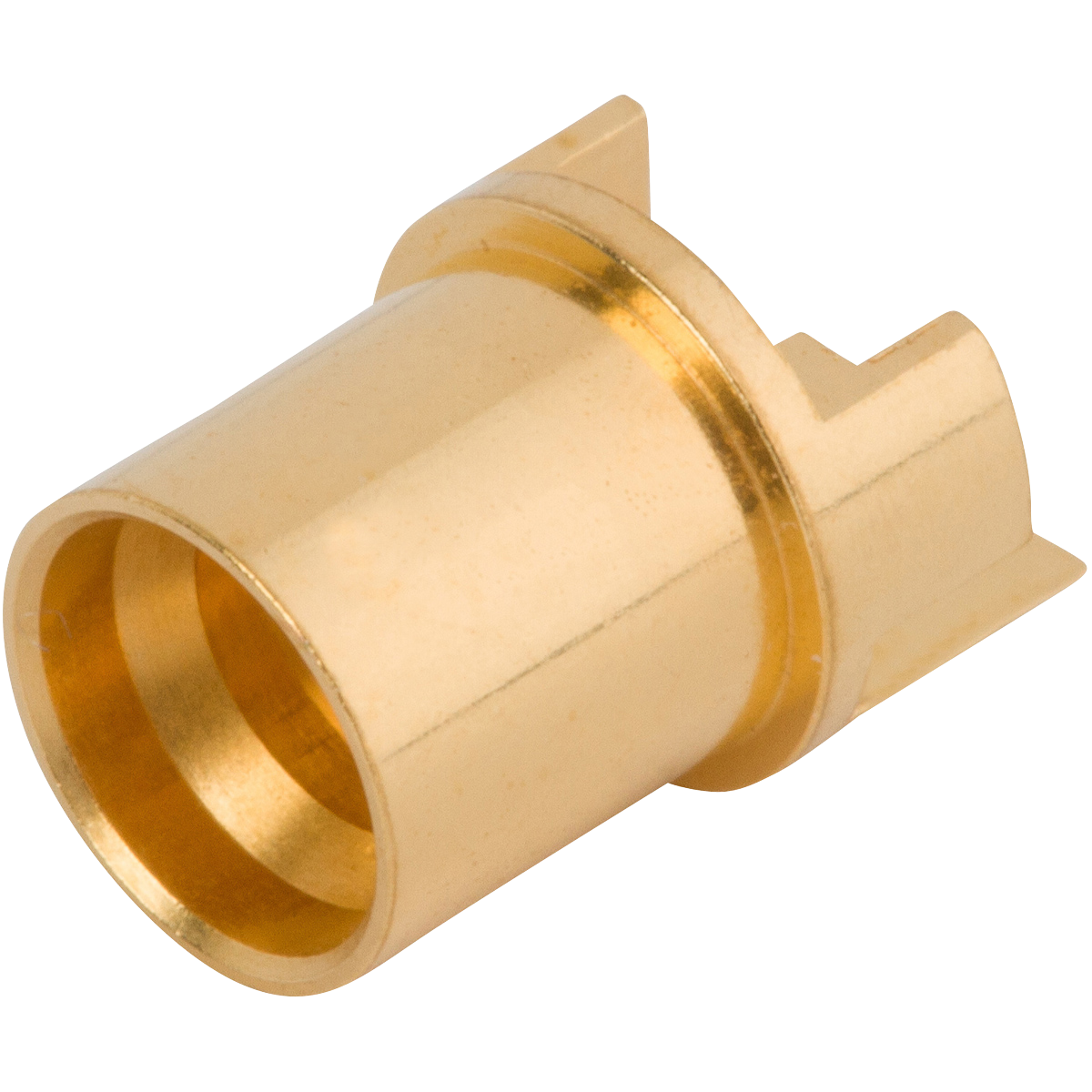

1285-6004
Specifications
Detailed Description
Enhance your RF signal connectivity with our SMP Male Edge Launch Connector, designed for seamless integration onto PCBs with a thickness of .062 inches. Featuring a straight orientation and a durable stainless steel body, this connector ensures reliable performance even in high-frequency applications up to 40 GHz. With a 50 Ω impedance and solderless PCB termination method, it offers efficient signal transmission with minimal signal loss. Ideal for use in a wide range of industries, this connector is a must-have for any RF coaxial setup requiring high-quality, high-performance components. Elevate your connectivity solutions with this cutting-edge connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
