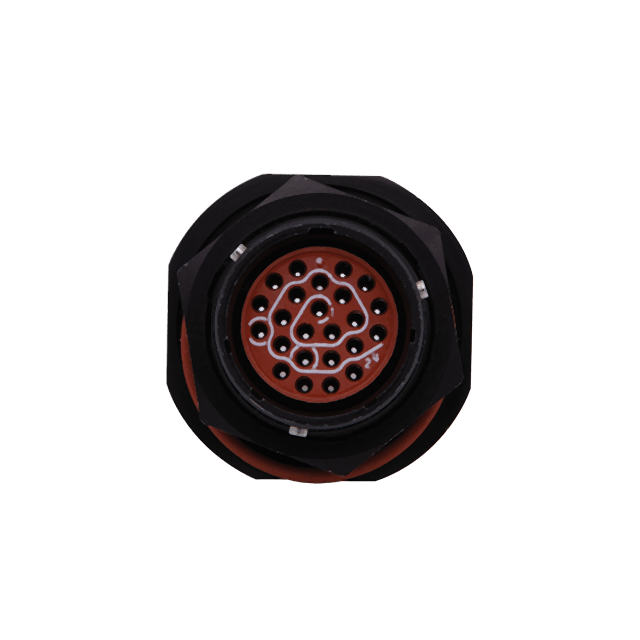

MS24264R18T14PN L/C

CIMMS24264R18T14PN L/C
Heilind Number:CIMMS24264R18T14PN L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24264R18T14PN L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24264R18T14PN L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Male
Housing Material:Aluminum
Number of Contacts:14
Mount Type:Panel Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:18
Contact Type:Pin
Mating Type:Threaded
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:18-14
Shell Material:Aluminum
Mating Cycles:200 cycle
Shell Type:Square Flange Receptacle
Shell Finish:Anodized
Current Rating:13 A
Voltage Rating:1500 VAC
Insert Arrangement:18-14
Locking Mechanism:Threaded
Operating Temperature:-55 to 200 °C
SKU:CIMMS24264R18T14PN L/C

Detailed Description

The MS24264R18T14PN L/C Circular Connector, part of the MIL-DTL-26500 Omega series, is a rugged and reliable solution for military and high-reliability applications. Designed for male gender with a durable aluminum housing, this connector features 14 contacts and a panel mount for secure installation. With a crimp termination method and a wide operating temperature range from -55°C to 200°C, it ensures dependable performance in harsh environments. The 18 shell size and threaded mating type, along with silicone rubber and fluorosilicone seals, guarantee a tight and secure connection. Anodized for added durability, this connector has a current rating of 13A and a voltage rating of 1500VAC. Please note that this assembly does not ship with contacts.
