MS24264R20B28S6

CIMMS24264R20B28S6
Heilind Number:CIMMS24264R20B28S6
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24264R20B28S6
ECAD Model:
3D Model

Description:

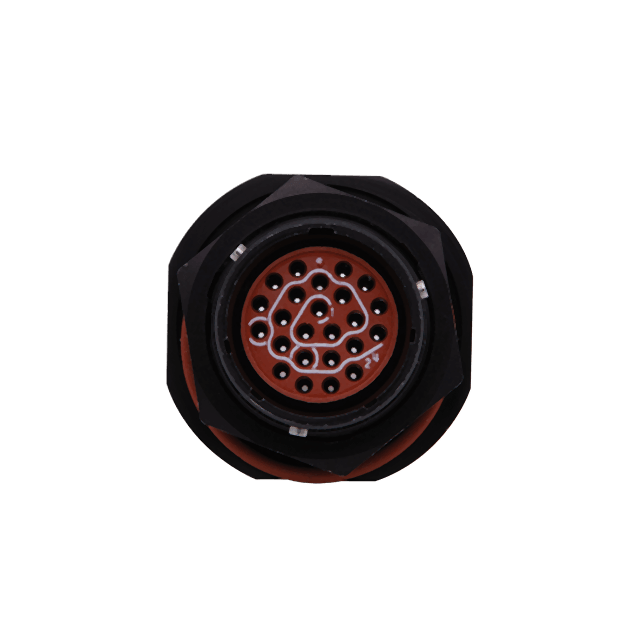

SQ FLG REC 24#20 4#12 SKT

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24264R20B28S6
Gender:Female
Mount Type:Panel Mount
Shell Size:20
Mating Type:Bayonet
Shell Finish:Anodized
Mating Cycles:500 cycle
Seal Material:Fluorosilicone, Silicone Rubber
Current Rating:23 A, 7.5 A
Voltage Rating:1500 VAC
Housing Material:Aluminum
Number of Contacts:28 (24+4)
Termination Method:Crimp
Military Specification:MIL-C-26500
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size - Insert Arrangement:20-28
Series:Omega
Shell Type:Square Flange Receptacle
Contact Type:Socket
Shell Material:Aluminum
Locking Mechanism:Bayonet
Insert Arrangement:20-28
Operating Temperature:-55 to 200 °C
SKU:CIMMS24264R20B28S6

Detailed Description

The MS24264R20B28S6 is a rugged and reliable circular connector designed for high-performance applications. Featuring a MIL-DTL-26500 military specification, this Omega series connector is built to withstand extreme conditions with an operating temperature range of -55°C to 200°C. Its female gender and aluminum housing ensure durability, while the crimp termination method and panel mount design offer easy installation. With four contacts and a shell size of 20, this connector provides secure and efficient connectivity. The silicone rubber and fluorosilicone seals guarantee protection against moisture and contaminants. Rated for 23A current and 1500VAC voltage, it is suitable for demanding environments. With a mating type of bayonet and 500 mating cycles, reliability is assured. The anodized shell finish adds to its robustness, making it ideal for aerospace, defense, and industrial applications. RoHS non-compliant. Elevate your connectivity with the MS24264R20B28S6.
