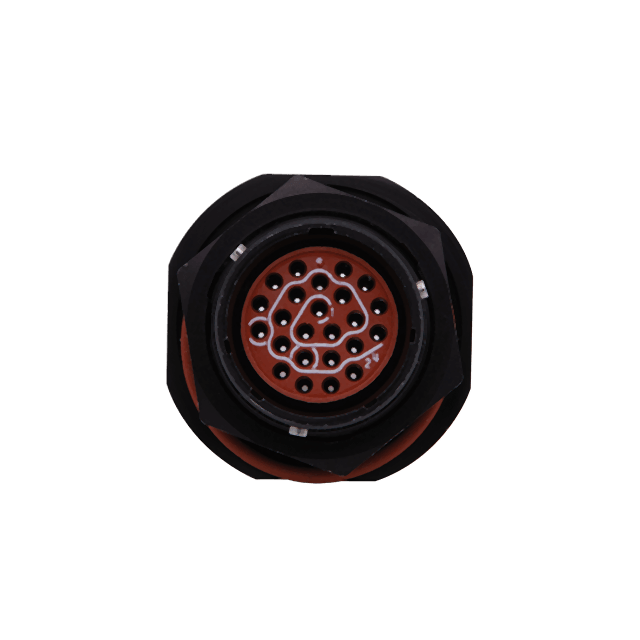

MS24265R18B14P8 L/C

CIMMS24265R18B14P8 L/C
Heilind Number:CIMMS24265R18B14P8 L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24265R18B14P8 L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular MIL Spec Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24265R18B14P8 L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Male
Housing Material:Aluminum
Number of Contacts:14
Mount Type:Panel Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:18
Contact Type:Pin
Mating Type:Bayonet
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:18-14
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Single Hole Mount Receptacle
Shell Finish:Anodized
Current Rating:13 A
Voltage Rating:1500 VAC
Insert Arrangement:18-14
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24265R18B14P8 L/C

Detailed Description

The Omega Series Circular Connector, SKU MS24265R18B14P8 L/C, meets rigorous MIL-DTL-26500 military specifications, ensuring reliable performance in demanding environments. Designed for male gender applications, this panel-mount connector features a durable aluminum housing and offers 14 crimp termination contacts. With a wide operating temperature range from -55°C to 200°C and a maximum voltage rating of 1500 VAC, it is suitable for a variety of high-reliability applications. The bayonet mating type and 500 mating cycle durability make it ideal for frequent connections. Additionally, the connector is RoHS compliant, meeting environmental standards. Please note that contacts are not included with this assembly.
