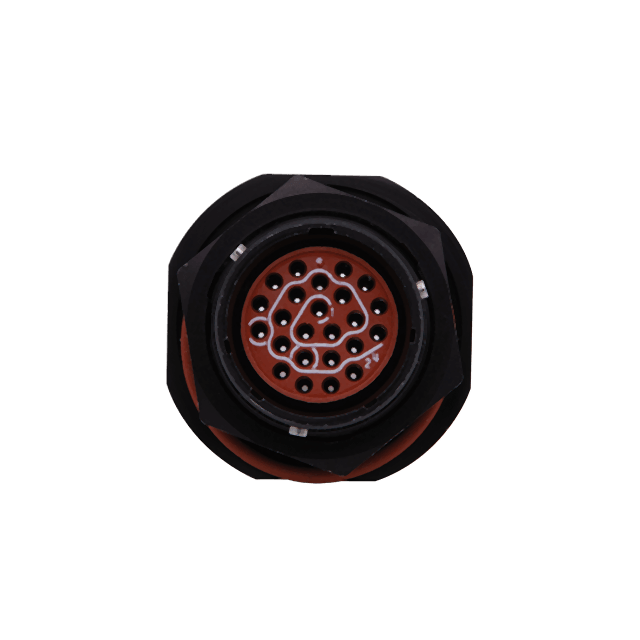

MS24265R20B28S6 L/C

CIMMS24265R20B28S6 L/C
Heilind Number:CIMMS24265R20B28S6 L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24265R20B28S6 L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular MIL Spec Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24265R20B28S6 L/C
Gender:Female
Mount Type:Panel Mount
Shell Size:20
Mating Type:Bayonet
Shell Finish:Anodized
Mating Cycles:500 cycle
Seal Material:Fluorosilicone, Silicone Rubber
Current Rating:23 A, 7.5 A
Voltage Rating:1500 VAC
Housing Material:Aluminum
Number of Contacts:28 (24+4)
Termination Method:Crimp
Military Specification:MIL-C-26500
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size - Insert Arrangement:20-28
Series:Omega
Shell Type:Single Hole Mount Receptacle
Contact Type:Socket
Shell Material:Aluminum
Locking Mechanism:Bayonet
Insert Arrangement:20-28
Operating Temperature:-55 to 200 °C
SKU:CIMMS24265R20B28S6 L/C

Detailed Description

Introducing the MIL-DTL-26500 Omega series Female Circular Connector Assembly, showcasing top-tier performance in demanding environments. Engineered with durable Aluminum housing material and military-grade specifications, this panel mount connector guarantees reliable connectivity with its 4 contacts. Designed for rugged applications, it operates flawlessly in extreme temperatures ranging from -55°C to 200°C, boasting a maximum voltage rating of 1500 VAC. Featuring a bayonet mating type and silicone rubber/fluorosilicone seals, it ensures secure and moisture-resistant connections. With a high-reliability design and 500 mating cycles durability, this connector is ideal for aerospace, military, and industrial sectors. Please note that this assembly does not ship with contacts. Make the MIL-DTL-26500 Omega series your trusted choice for critical connectivity needs.
