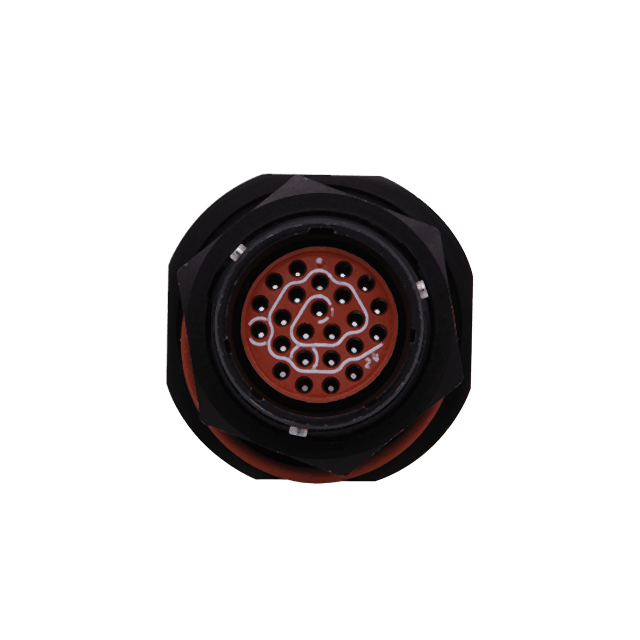

MS24265R22B12SY L/C

CIMMS24265R22B12SY L/C
Heilind Number:CIMMS24265R22B12SY L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24265R22B12SY L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24265R22B12SY L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Female
Housing Material:Aluminum
Number of Contacts:12
Mount Type:Panel Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:22
Contact Type:Socket
Mating Type:Bayonet
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:22-12
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Single Hole Mount Receptacle
Shell Finish:Anodized
Current Rating:23 A
Voltage Rating:1500 VAC
Insert Arrangement:22-12
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24265R22B12SY L/C

Detailed Description

Introducing the MS24265R22B12SY L/C, a military specification MIL-DTL-26500 compliant Omega series female connector designed for reliable performance in harsh environments. Crafted with durable aluminum housing and featuring a panel mount setup, this connector is ideal for secure and stable connections. With 12 contacts and a crimp termination method, it ensures efficient signal transmission. Operating seamlessly in temperatures ranging from -55°C to 200°C, and with a voltage rating of 1500 VAC, it's suitable for a wide range of applications. The bayonet mating type and high mating cycle durability of 500 cycles guarantee long-term usability. Finished with anodized coating for added protection, this connector is a dependable choice for demanding industrial and military settings. Please note that this assembly does not ship with contacts.
