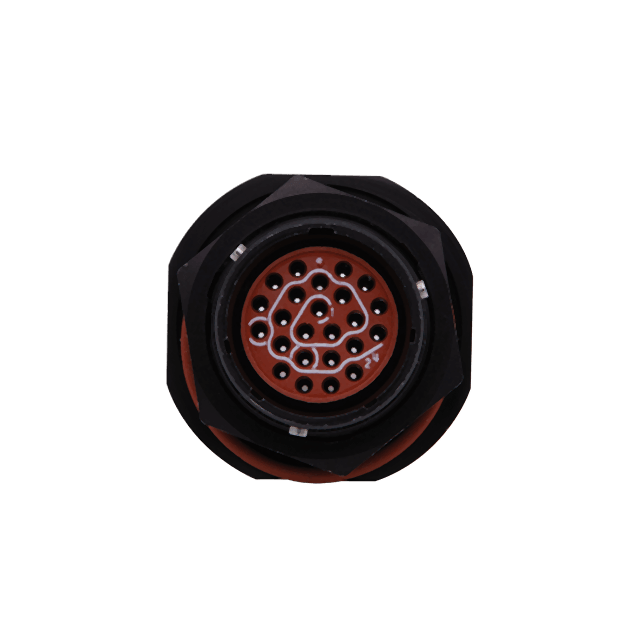

MS24265R24B57PN L/C

CIMMS24265R24B57PN L/C
Heilind Number:CIMMS24265R24B57PN L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24265R24B57PN L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24265R24B57PN L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Male
Housing Material:Aluminum
Number of Contacts:57 (55+2)
Mount Type:Panel Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:24
Contact Type:Pin
Mating Type:Bayonet
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:24-57
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Single Hole Mount Receptacle
Shell Finish:Anodized
Current Rating:23 A, 7.5 A
Voltage Rating:1500 VAC
Insert Arrangement:24-57
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24265R24B57PN L/C

Detailed Description

The Omega series MIL-DTL-26500 panel mount connector, SKU CIMMS24265R24B57PNLC, is a rugged and reliable solution for military and high-reliability applications. Constructed with durable aluminum housing and featuring a bayonet mating type, this connector ensures secure and efficient connections in harsh environments. With a shell size of 24 and a shell finish of anodized, it offers excellent durability and performance. Rated for a maximum operating temperature of 200 °C and a minimum of -55 °C, it can withstand extreme conditions. The seal material, comprised of silicone rubber and fluorosilicone, provides added protection against moisture and contaminants. With a current rating of 23A and 7.5A and a voltage rating of 1500 VAC, this connector is suitable for high-power applications. Please note that this assembly does not ship with contacts.
