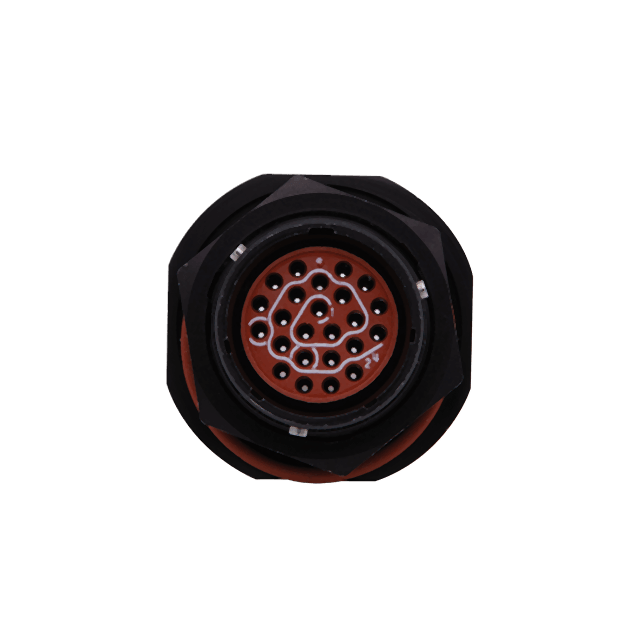

MS24266R10B20S7 L/C

CIMMS24266R10B20S7 L/C
Heilind Number:CIMMS24266R10B20S7 L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24266R10B20S7 L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24266R10B20S7 L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Female
Housing Material:Aluminum
Number of Contacts:2
Mount Type:Cable Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:10
Contact Type:Socket
Mating Type:Bayonet
Mount Angle:Straight
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:10-20
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Plug, Straight
Shell Finish:Anodized
Current Rating:13 A
Voltage Rating:1500 VAC
Insert Arrangement:10-20
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24266R10B20S7 L/C

Detailed Description

The Omega Series Female Circular Connector, SKU CIMMS24266R10B20S7LC, boasts military-grade durability with its MIL-DTL-26500 specification. Constructed with aluminum housing, this connector is engineered for rugged environments. Featuring a cable mount and straight mount angle, it offers seamless integration. Operating flawlessly in temperatures ranging from -55°C to 200°C, it guarantees performance in extreme conditions. With a shell size of 10 and bayonet mating type, it ensures a secure connection. The silicone rubber and fluorosilicone seal materials provide excellent protection. With a current rating of 13A and voltage rating of 1500VAC, it's suitable for high-power applications. Please note that this assembly does not ship with contacts. Perfect for demanding industrial and military setups, this connector is a reliable choice for critical operations.
