| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Part Number: | Cinch Connectivity Solutions MS24266R10B5P9 |
| Gender: | Male |
| Mount Type: | Cable Mount |
| Shell Size: | 10 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Anodized |
| Mating Cycles: | 500 cycle |
| Seal Material: | Fluorosilicone, Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 1500 VAC |
| Housing Material: | Aluminum |
| Number of Contacts: | 5 |
| Termination Method: | Crimp |
| Military Specification: | MIL-C-26500 |
| Maximum Operating Temperature: | 200 °C |
| Minimum Operating Temperature: | -55 °C |
| Shell Size - Insert Arrangement: | 10-5 |
| Series: | Omega |
| Shell Type: | Plug, Straight |
| Contact Type: | Pin |
| Shell Material: | Aluminum |
| Locking Mechanism: | Bayonet |
| Insert Arrangement: | 10-5 |
| Operating Temperature: | -55 to 200 °C |
| SKU: | CIMMS24266R10B5P9 |
MS24266R10B5P9
| Heilind Number: | CIMMS24266R10B5P9 |
| Manufacturer: | Cinch Connectivity Solutions |
| Manufacturer Number: | MS24266R10B5P9 |
| ECAD Model: | |
Specifications
Detailed Description

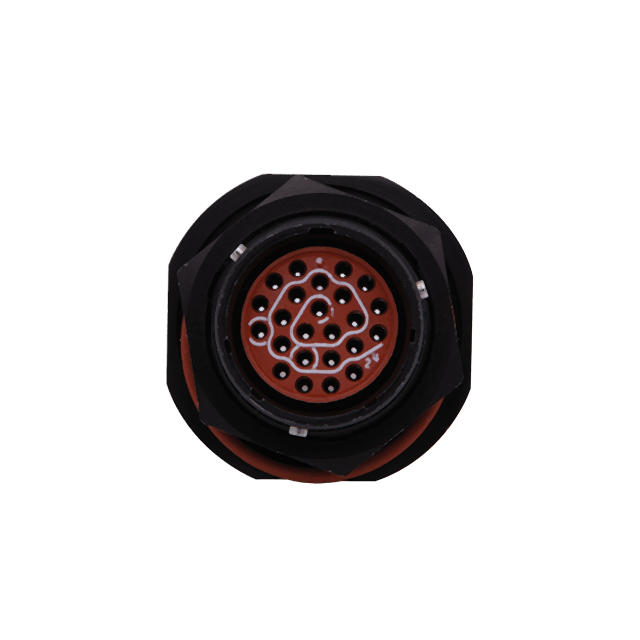

Introducing the MIL-DTL-26500 Omega Series Circular Connector, SKU MS24266R10B5P9, engineered for high-reliability performance in demanding environments. This male connector features a rugged aluminum housing and is designed for cable mount installation with a straight orientation. With a maximum operating temperature of 200 °C and a minimum of -55 °C, it ensures reliable connectivity in extreme conditions. The crimp termination method and 5 gold-plated contacts guarantee secure and efficient signal transmission. Meeting military specifications, this connector is ideal for aerospace, defense, and industrial applications. Its bayonet mating type allows for quick and secure connections, while the silicone rubber and fluorosilicone seals provide excellent environmental protection. With a shell size of 10 and a current rating of 7.5 A, it offers robust performance in power and signal applications. RoHS non-compliant. 1500 VAC voltage rating. Achieve unparalleled reliability with the MS24266R10B5P9 connector.
