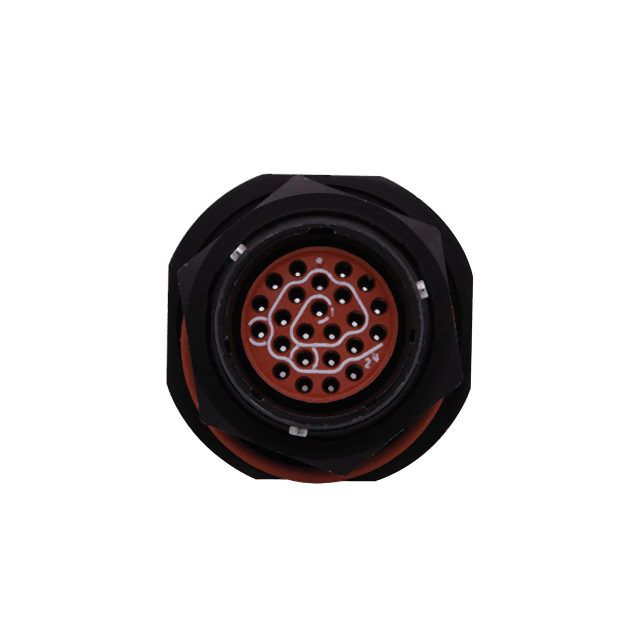

MS24266R12B3P6 L/C

CIMMS24266R12B3P6 L/C
Heilind Number:CIMMS24266R12B3P6 L/C
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24266R12B3P6 L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular MIL Spec Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24266R12B3P6 L/C
Military Specification:MIL-C-26500
Series:Omega
Gender:Male
Housing Material:Aluminum
Number of Contacts:3
Mount Type:Cable Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:12
Contact Type:Pin
Mating Type:Bayonet
Mount Angle:Straight
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:12-3
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Plug, Straight
Shell Finish:Anodized
Current Rating:13 A
Voltage Rating:1500 VAC
Insert Arrangement:12-3
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24266R12B3P6 L/C

Detailed Description

Designed for rugged military applications, the MS24266R12B3P6 L/C connector, part of the MIL-DTL-26500 Omega series, offers reliable performance in harsh environments. With a male gender and durable aluminum housing, it ensures robust connectivity in demanding conditions. Featuring three crimp termination contacts, this cable mount connector is suitable for high-power applications, with a current rating of 13A and a voltage rating of 1500 VAC. Its straight mount angle and bayonet mating type facilitate easy installation and secure connections. Built to withstand extreme temperatures ranging from -55°C to 200°C, and boasting a shell finish of anodized aluminum, this connector guarantees longevity and performance in the field. Please note that this assembly does not ship with contacts.
