| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Glenair VAD |
| Manufacturer Part Number: | Glenair VAD M28840/10LF1E4 |
| Wire Size: | 32 to 28 AWG |
| Shell Size: | 23 |
| Shell Type: | Wall Mount Receptacle |
| Contact Type: | Socket |
| Shell Finish: | Tin Zinc Over Electroless Nickel |
| Shell Material: | Aluminum |
| Contact Plating: | Gold Over Nickel |
| Keying Position: | 4 |
| Contact Material: | Copper Alloy |
| Locking Mechanism: | Threaded |
| Insert Arrangement: | 23-1 |
| Military Specification: | MIL-DTL-28840 |
| Operating Temperature: | -55 to 175 °C |
| SKU: | GLNM28840/10LF1E4 |

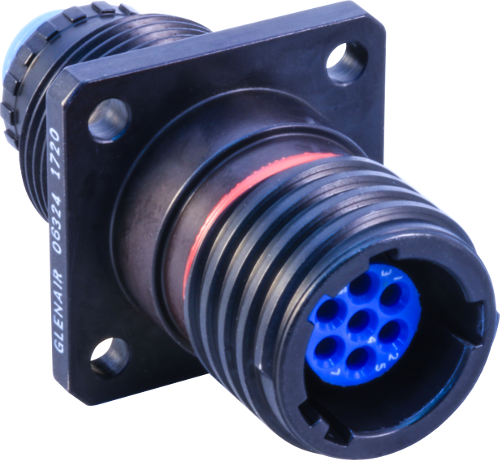

M28840/10LF1E4
| Heilind Number: | GLNM28840/10LF1E4 |
| Manufacturer: | Glenair VAD |
| Manufacturer Number: | M28840/10LF1E4 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the M28840/10LF1E4, a military specification MIL-DTL-28840 compliant circular connector designed for high-reliability applications. Featuring a shell size 23 made of durable aluminum with a tin zinc over electroless nickel finish, this wall mount receptacle is built to withstand harsh environments. The contact sockets, crafted from copper alloy and plated with gold over nickel, ensure optimal signal transmission. With a wire size range of 32 to 28 AWG, it offers versatile connectivity options. The 23-1 insert arrangement with keying position 4 and threaded locking mechanism provides secure mating. Despite its robust construction, this connector is also RoHS compliant, meeting environmental regulations. Ideal for military, aerospace, and industrial use, the M28840/10LF1E4 guarantees reliable performance in demanding conditions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
