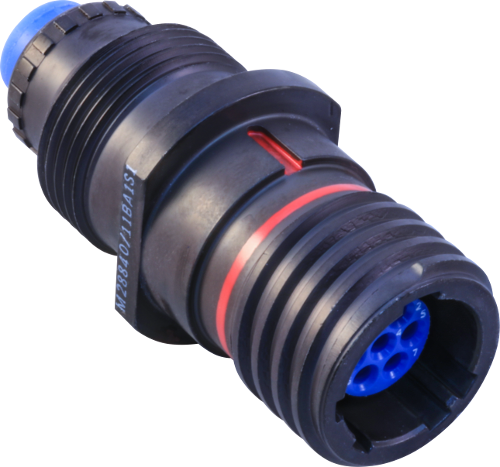

M28840/11LD1D5 L/C

M28840/11LD1D5 L/C
Heilind Number:GLNM28840/11LD1D5 L/C
Manufacturer:Glenair VAD
Manufacturer Number:M28840/11LD1D5 L/C
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Glenair VAD
Manufacturer Part Number:Glenair VAD M28840/11LD1D5 L/C
Wire Size:32 to 28 AWG
Shell Size:17
Shell Type:In-Line Receptacle
Contact Type:Pin
Shell Finish:Tin Zinc Over Electroless Nickel
Shell Material:Aluminum
Contact Plating:Gold Over Nickel
Keying Position:5
Contact Material:Copper Alloy
Without Contacts:Yes
Locking Mechanism:Threaded
Insert Arrangement:17-1
Military Specification:MIL-DTL-28840
Operating Temperature:-55 to 175 °C
SKU:GLNM28840/11LD1D5 L/C

Detailed Description

The M28840/11LD1D5 L/C is a high-performance in-line receptacle connector designed to meet MIL-DTL-28840 military specifications. Featuring a durable aluminum shell with a shell size of 17 and a shell finish of Tin Zinc Over Electroless Nickel, this connector ensures reliable performance in demanding environments. The contact material is made of Copper Alloy with Gold Over Nickel plating, providing excellent conductivity and corrosion resistance. With a contact type of Pin and wire size compatibility ranging from 32 to 28 AWG, this connector offers versatility in various applications. The threaded locking mechanism and keying position of 5 guarantee secure mating. Please note that this assembly does not ship with contacts. TrusT us for your high-reliability connectivity needs with the acronym M2884011LD1D5LC.
