| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF12NB(3.0)-40DS-0.5V(51) |
| Pitch: | 0.5 mm |
| Gender: | Female |
| Mount Type: | Surface Mount |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Mating Cycles: | 50 cycle |
| Number of Rows: | 2 |
| Voltage Rating: | 50 VAC |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Copper |
| Housing Material: | Nylon |
| Contact Resistance: | 50 mΩ |
| Number of Contacts: | 40 |
| Termination Method: | Solder |
| Insulation Resistance: | 500 MOhm |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | DF12N |
| SKU: | HIRDF12NB(3.0)-40DS-0.5V( |

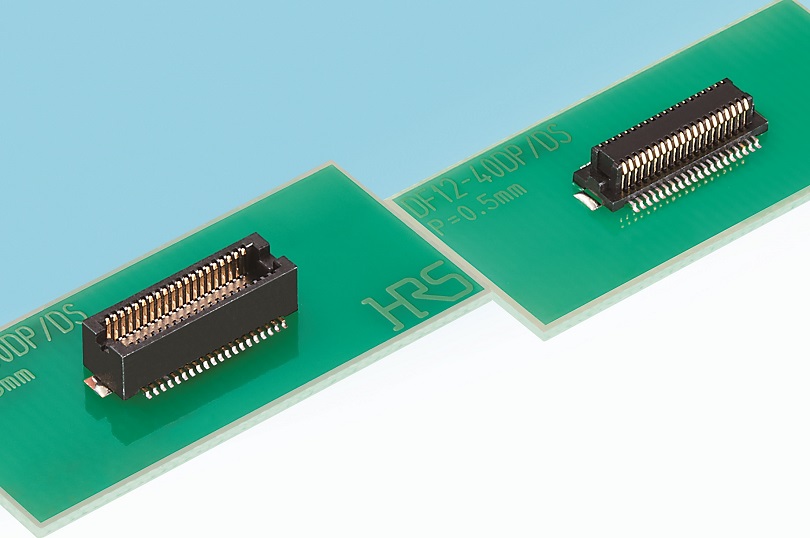

DF12NB(3.0)-40DS-0.5V(51)
-40DS-0.5V(.jpg)
| Heilind Number: | HIRDF12NB(3.0)-40DS-0.5V( |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF12NB(3.0)-40DS-0.5V(51) |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the HIRDF12NB(3.0)-40DS-0.5V high-performance female surface mount connector from the DF12N series. Crafted with durable nylon housing and featuring 40 gold-plated contacts on two rows, this connector ensures reliable connectivity in a wide range of applications. With a low contact resistance of 50 mΩ and excellent insulation resistance of 500 MOhm, it guarantees optimal signal transmission. Operating efficiently in temperatures ranging from -55 °C to 125 °C, it's suitable for demanding environments. Designed for solder termination, it offers easy installation. Meeting stringent quality standards, it's not only RoHS compliant but also boasts a voltage rating of 50 VAC. Ideal for use in hi-rel applications, this connector is a dependable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
