| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF13-15P-1.25DSA(55) |
| Series: | DF13 |
| Gender: | Male |
| Housing Material: | Nylon |
| Number of Contacts: | 15 |
| Number of Rows: | 1 |
| Mount Type: | Through Hole |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 1.25 mm |
| Mating Type: | Friction |
| Mount Angle: | Straight |
| Current Rating: | 1 A |
| Voltage Rating: | 150 VAC |
| SKU: | HIRDF13-15P-1.25DSA(55) |

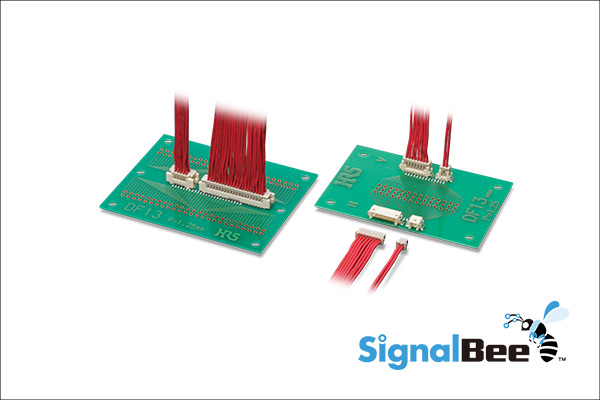

DF13-15P-1.25DSA(55)
.jpg)
| Heilind Number: | HIRDF13-15P-1.25DSA(55) |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF13-15P-1.25DSA(55) |
| ECAD Model: | |
Specifications
Detailed Description
The DF13-15P-1.25DSA(55) connector, part of the DF13 series, is a male connector designed for reliable board-to-board PCB connections. Featuring a durable nylon housing and 15 contacts in a single row, this connector ensures secure and efficient signal transmission. With a straight through-hole mount type and solder termination method, installation is quick and easy. The brass contacts offer excellent conductivity, with a current rating of 1A and voltage rating of 150VAC. Operating temperature ranges from -35°C to 85°C, making it suitable for various environments. Its 1.25mm pitch and friction mating type further enhance its versatility. While not RoHS compliant, this connector is a dependable choice for applications where high reliability is essential.
