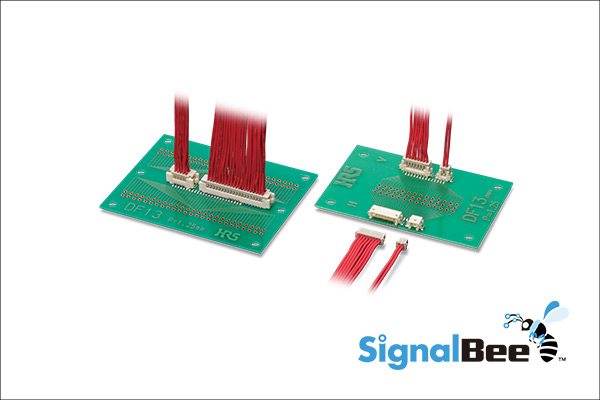

DF13-2P-1.25DSA(05)

HIRDF13-2P-1.25DSA(05)
Heilind Number:HIRDF13-2P-1.25DSA(05)
Manufacturer:Hirose
Manufacturer Number:DF13-2P-1.25DSA(05)
ECAD Model:
3D Model

Description:

HIRDF13-2P-1.25DSA(05)

More >>

Specifications

AttributeValue
Product Category:
PCB Connectors Board To Board PCB Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose DF13-2P-1.25DSA(05)
Pitch:1.25 mm
Gender:Male
Mount Type:Through Hole
Mating Type:Friction
Mount Angle:Straight
Mating Cycles:30 cycle
Current Rating:2.5 A
Number of Rows:1
Voltage Rating:150 VAC
Contact Plating:Tin
Contact Material:Brass
Housing Material:Nylon
Number of Contacts:2
Termination Method:Solder
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-35 °C
Series:DF13
SKU:HIRDF13-2P-1.25DSA(05)

Detailed Description

Introducing the DF13-2P-1.25DSA(05) connector, part of our DF13 series designed for reliable board-to-board PCB connectivity. This male connector features a durable nylon housing, ideal for through-hole mounting with solder termination. With 2 contacts arranged in a single row at a 1.25mm pitch, it ensures precise and efficient connections. The brass contacts plated with tin offer excellent conductivity and corrosion resistance, meeting RoHS compliance standards. Operating seamlessly in temperatures ranging from -35°C to 85°C and with a voltage rating of 150 VAC, this connector is suitable for various applications. Its friction mating type and straight mount angle facilitate easy installation. With a current rating of 2.5A and a durability of 30 mating cycles, it ensures long-lasting performance. Perfect for miniature and sub-miniature modular connector setups, the DF13-2P-1.25DSA(05) is a reliable solution for your PCB connectivity needs.
