| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF13-8P-1.25V(76) |
| Pitch: | 1.25 mm |
| Gender: | Male |
| Mount Type: | Surface Mount |
| Mating Type: | Friction |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 1 |
| Voltage Rating: | 150 VAC |
| Contact Plating: | Gold |
| Contact Material: | Brass |
| Housing Material: | Nylon |
| Number of Contacts: | 8 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Series: | DF13 |
| SKU: | HIRDF13-8P-1.25V(76) |

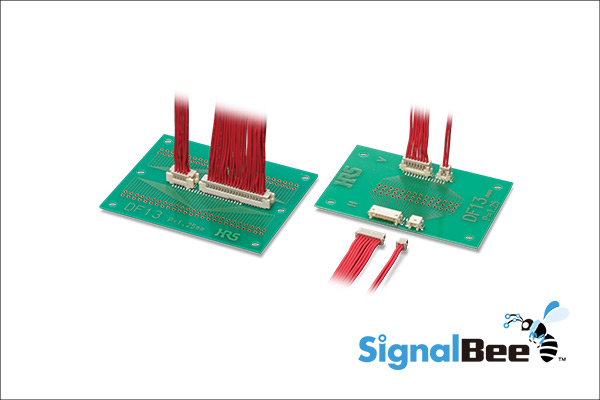

DF13-8P-1.25V(76)
.jpg)
| Heilind Number: | HIRDF13-8P-1.25V(76) |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF13-8P-1.25V(76) |
| ECAD Model: | |
Specifications
Detailed Description
The DF13-8P-1.25V(76) connector, part of the DF13 series, is a male board-to-board PCB connector designed for reliable surface mount installation. With a housing made of durable nylon, this connector features 8 gold-plated brass contacts, ensuring excellent conductivity and longevity. Operating at temperatures ranging from -35°C to 85°C, it offers a wide range of usability. The 1.25mm pitch and straight mount angle make it suitable for various electronic applications. With a current rating of 1A and a voltage rating of 150VAC, it meets high-performance standards. RoHS compliant and offering 50 mating cycles, this connector guarantees environmental sustainability and durability. Perfect for miniature and sub-miniature modular connections, the DF13-8P-1.25V(76) is a reliable choice for your PCB connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
