| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF17(3.0H)-70DS-0.5V(5 |
| Color: | Beige |
| Series: | DF17 |
| Gender: | Female |
| Housing Material: | Nylon |
| Number of Contacts: | 70 |
| Number of Rows: | 2 |
| Mount Type: | Surface Mount |
| Termination Method: | Solder |
| Contact Material: | Phosphor Copper |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 0.5 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 0.3 A |
| Voltage Rating: | 50 VAC |
| SKU: | HIRDF17(3.0H)-70DS-0.5V(5 |

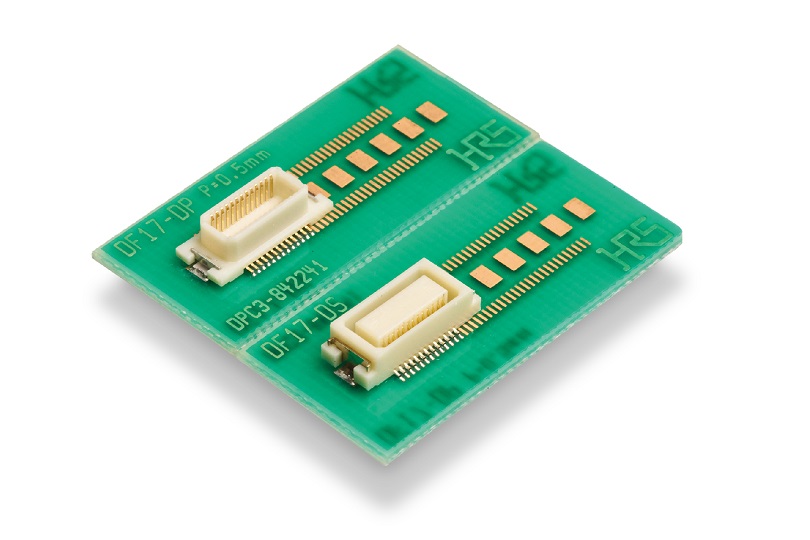

DF17(3.0H)-70DS-0.5V(5
-70DS-0.5V(5.jpg)
| Heilind Number: | HIRDF17(3.0H)-70DS-0.5V(5 |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF17(3.0H)-70DS-0.5V(5 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the DF17(3.0H)-70DS-0.5V(5) Beige female connector, part of the DF17 series. Designed for high reliability in board-to-board PCB connections, this connector features a durable nylon housing and gold-plated phosphor copper contacts, ensuring optimal signal transmission. With 70 contacts arranged in 2 rows on a 0.5mm pitch, it offers high-density connectivity for compact electronic devices. The surface mount termination method and straight mount angle make for easy assembly. Meeting UL 94V-0 flammability standards, it guarantees safety in operation. Rated for 0.3A and 50VAC, this connector is suitable for a wide range of applications. Upgrade your electronics with the DF17(3.0H)-70DS-0.5V(5) for reliable and efficient connectivity.
