| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF17A(4.0)-80DS-0.5V(5 |
| Color: | Beige |
| Series: | DF17 |
| Gender: | Female |
| Housing Material: | Nylon |
| Number of Contacts: | 80 |
| Number of Rows: | 2 |
| Mount Type: | Surface Mount |
| Termination Method: | Solder |
| Contact Material: | Phosphor Copper |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Pitch: | 0.5 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 0.3 A |
| Voltage Rating: | 50 VAC |
| SKU: | HIRDF17A(4.0)-80DS-0.5V(5 |

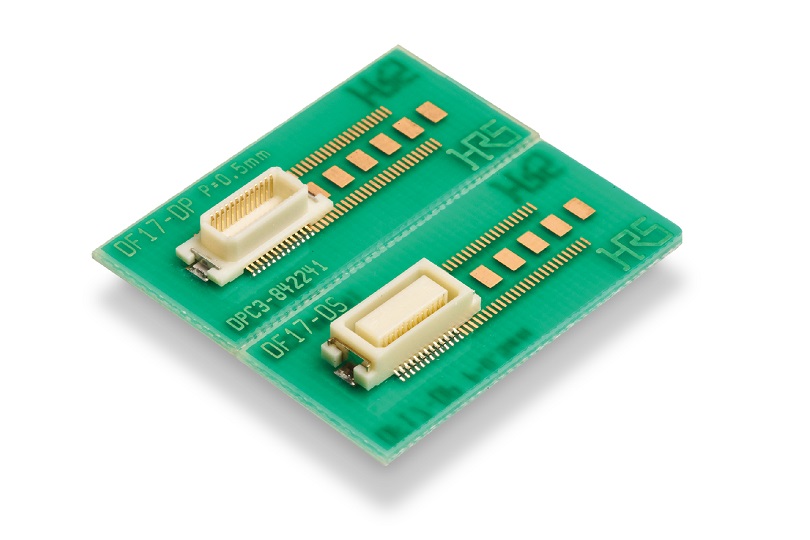

DF17A(4.0)-80DS-0.5V(5
-80DS-0.5V(5.jpg)
| Heilind Number: | HIRDF17A(4.0)-80DS-0.5V(5 |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF17A(4.0)-80DS-0.5V(5 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Beige DF17 Female Surface Mount Connector, DF17A(4.0)-80DS-0.5V(5). Designed for high reliability in board-to-board PCB connections, this connector features a durable nylon housing and 80 gold-plated contacts with a 0.5mm pitch. With a straight mount angle and solder termination method, it ensures secure and efficient assembly. Operating between -35°C and 85°C, it offers reliable performance in a wide range of environments. UL 94V-0 rated for safety, it is ideal for applications where flammability is a concern. This connector, part of the DF17 series, is perfect for use in various industries, from consumer electronics to industrial machinery. Upgrade your connectivity solutions with the DF17A4080DS05V5.
