| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF20F-40DP-1H(52) |
| Color: | Beige |
| Pitch: | 1 mm |
| Gender: | Male |
| Mount Type: | Surface Mount |
| Mount Angle: | Right Angle |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 100 VAC |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Bronze |
| Housing Material: | Nylon |
| Number of Contacts: | 40 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -35 °C |
| Series: | DF20 |
| SKU: | HIRDF20F-40DP-1H(52) |

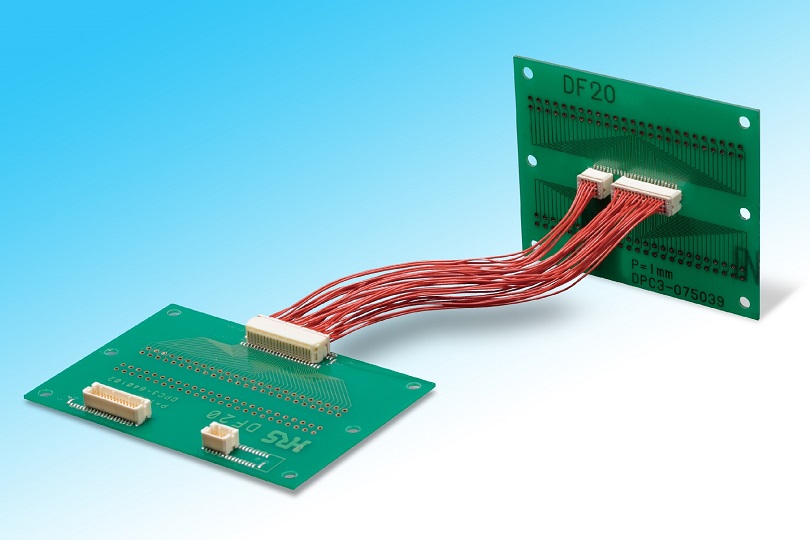

DF20F-40DP-1H(52)
.jpg)
| Heilind Number: | HIRDF20F-40DP-1H(52) |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF20F-40DP-1H(52) |
| ECAD Model: | |
Specifications
Detailed Description
The DF20F-40DP-1H(52) Beige male connector from the DF20 series offers reliable and high-performance connectivity for your electronic devices. With a durable Nylon housing and 40 gold-plated contacts, this surface mount connector ensures secure and efficient signal transmission. Featuring a right-angle mount type and solder termination method, it is easy to install on PCBs. Operating in a wide temperature range from -35°C to 85°C, and with a voltage rating of 100 VAC, it is suitable for various applications. Compliant with RoHS regulations and boasting a UL 94V-0 flammability rating, it meets stringent industry standards for safety and environmental protection. Perfect for board-to-board connections, this connector is a dependable choice for your electronic designs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
